Specifications
Water Chiller For Induction Heating Machine1. Max. Tem. Resistance is 95 deg.
2. High-strength of fiber glass re

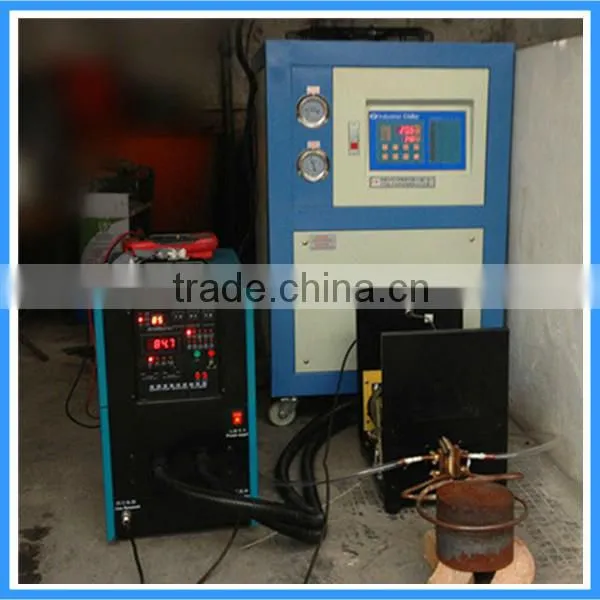

Water Chiller For Induction Heating Machine
Technical Parameter of JLLS-3 Water Chiller
|
Model Parameter |
JLLS-3 |
||||
Cooling Capacity |
kcal/h |
8500 |
|||
KW |
7.91 |
||||
Input power |
KW |
3.33 |
|||
Power Supply |
3PH~380V/50HZ |
||||
Refrigerant |
Model |
R22 |
|||
Type Control |
Capillary |
||||
Compressor |
Type |
Wholly-Sealed Vortex Type |
|||
Power |
KW |
2.25 |
|||
Condenser |
Type |
Efficient Copper-Pipe Setting in the Aluminum-Fin Type + Low-noise External Rotor Fan |
|||
Cooled Air Flow |
m3/h |
3000 |
|||
Evaporator |
Type |
Water Tank with Coil Tube |
|||
Refrigerated Water Flow |
m3/h |
1.36 |
|||
Water Tank Capacity(L) |
65 |
||||
Inlet and Outlet pipe caliber |
1″ |
||||
Water Pump |
Power (KW) |
0.375 |
|||
Lift(M) |
20 |
||||
Safety Protection |
Compressor overheating protection, Overflow protection, High and low pressure protection, Over temperature protection, Flow protection, Phrase sequence/ Phrase-lacking protection, Exhaust over heating protection |
||||
Weight of the Machine |
KG |
135 |
|||
MEAS. |
MM |
930×610×860 |
|||
Note: 1. The cooling capacity is according to:
Refrigerated water inlet and outlet temperature 12°C/7°C; Cooling air inlet and outlet temperature 30°C/38°C
2. Working Range:
The temperature range of Refrigerated water is from 5°C to 35°C; The inlet and outlet temperature difference is from 3°C to 8°C.
The machine can be used while the temperature is below 35°C.
