Home > Products > LED Downlights > White office &home 15W 1300lm 3000k LED Down light

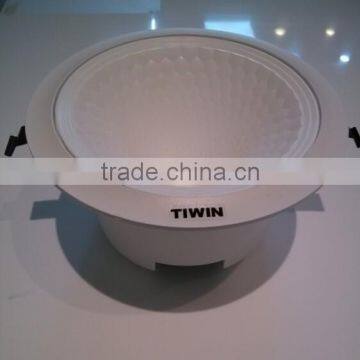

White office &home 15W 1300lm 3000k LED Down light
- 5000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| LED Light Source | EPISTAR | Warranty(Years) | 2 | |
| Input Voltage(V) | 220-240 | Lamp Power(W) | 15 | |
| Lamp Luminous Flux(lm) | 1300 | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Other, 3000 | Working Temperature(℃) | -25, 40 | |
| Working Lifetime(Hour) | 25000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, LED DOWN LIGHT IP 20 | Certification | CCC, CE | |
| Place of Origin | Jiangsu, China | Brand Name | TIWIN |
Product Description
Specifications
TIWIN XINYUE HIGH CRI LED Down lightAnti-glare, high light efficiency, high CRI. simple design,
TIWIN XINYUE HIGH CRI LED Down light 15w
Features
Deep cover non-glare design, to create a comfortable light experience
Simple design, combined with modern architecture perfectly
High-pressure die casting aluminum alloy, 3D heat-releasing construction.
We provide with online video, virtual lighting designers, ready to support the installation and fabric lamp for electrical technicians at any time.
Crocodile buckle design, easy to install
Compliance with international safety and reliability standards
Multiple electrical protection, with industrial grade high temperature electrolyte capacitor
Long life durability
DL4C serie | Working environment | Installation | Rated life | Color | Input voltage | Beam angle | Main material | Electrical | ||
| -25 ℃ ~ +40 ℃
| Embedded | 25000H | White | 220~240V/50~60Hz | 80 ° | Aluminum die casting | Class I | ||
Specifications
MODEL# | Size A*B*C | Hole size | Power | Power of lamp | Luminous flux | CCT
| CRI | Power efficiency | Net weight(per gram) | Package quantity |
DL4C1008A8U | 125 * 125 * 70mm
| 100mm | 6.7W | 8W | 650Lm | 3000/4000/5000K | 80 | 90% | 250 | 20 PCS / Box |
DL5C1011A8U | 150 * 150 * 89mm
| 125mm | 9.1W | 10W | 900Lm | 3000/4000/5000K | 80 | 91% | 400 | 20 PCS / Box |
DL5C1013A8U | 150 * 150 * 89mm
| 125mm | 10.9W | 12W | 1050m | 3000/4000/5000K | 80 | 92% | 400 | 20 PCS / Box |
DL6C1016A8U | 175 * 175 * 101mm
| 150mm | 13.8W | 15W | 1300Lm
| 3000/4000/5000K | 80 | 94% | 530 | 20 PCS / Box |
IV. Production capability
TIWIN owns automated production lines, production equipment and instruments, including 9 SMT production lines, 65 sets equipments, such as: automatic wave soldering, reflow soldering, automatic braiding, automatic optical spectral machines and other production equipments..
We own 41 assembly lines, with more than 185 sets automatic printing machine, glue machine, burn-in machine and waterproof IP67/68/65 test equipments.
1)Factory direct price
2)High power&quality SMD LED&most part of our products are CREE/Bridgelux LED
3)All kinds of products are CE&Rohs certified;Most products with TUV, UL, SAA, EMC, GS,ETL,Energy Star certifications
4)Product&Package with Unique design
5) Own professional and experiency R & D staffs, years of experience of handling OEM/ODM projects
6) ISO9001:2008 quality control system
Contact Us
- Jiangsu Tianying Opto-Electronics Technology Company Limited
- Contact nameKerry Ho Chat Now
- Phone0086-159-50876020
- AddressNo. 69, Xiyuan Avenue, Haian Town, Haian County
