Home > Lights & Lighting > LED Interior Lighting > LED Down Light > TIWIN DLC 8W/10W/12W/15W Special Design LED Downlight
TIWIN DLC 8W/10W/12W/15W Special Design LED Downlight
US$ 10.69 - 17.51
MOQ: 20 Pieces
Key Specifications
Get Latest Price
LED Light Source:
3030
Warranty(Years):
2 years
Input Voltage(V):
220-240
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TIWIN DL4C 4 Inch 8W 650LM Special Design LED Downlight 230VNegotiableMOQ: 20 Pieces -
TIWIN DL5C 5 Inch 10W 900LM Special Design LED DownlightUS$ 10.69 - 17.51MOQ: 20 Pieces
-
TIWIN DL5C 5 Inch 12W 1050LM Pecial Design LED DownlightUS$ 10.69 - 17.51MOQ: 20 Pieces
-
TIWIN DL6C 6 Inch 15W 1300LM Special Design LED DownlightUS$ 10.69 - 17.51MOQ: 20 Pieces
-
TIWIN DL4C 3000K 8W 650LM 4 Inch Special Design LED DownlightUS$ 10.69 - 17.51MOQ: 20 Pieces
LED Light Source
3030
Warranty(Years)
2 years
Input Voltage(V)
220-240
Lamp Power(W)
8.15
Lamp Luminous Flux(lm)
650LM/900LM/1050LM/1300LM
Lamp Luminous Efficiency(lm/w)
88
Color Temperature(CCT)
Other, 3000K/4000K/5000K
Working Temperature(℃)
-25, 35
Working Lifetime(Hour)
25000
Lamp Body Material
Aluminum
IP Rating
Other, IP20
Certification
CCC
Model Number
DL4C/DL5C/DL6C
Place of Origin
Jiangsu, China
Brand Name
TIWIN
Product Description
| 4'',Φ125*70mm, AC220V~240V,Ra≥80,IP20, ≥25000H | |||
| DL4C-8W-WW | DL4C1008A8U-Y530WH5N101 | 8 W, 8pcs 3030, 3000K, 80°,650lm, 2 years warranty | |
| DL4C-8W-NW | DL4C1008A8U-Y540WH5N101 | 8 W, 8pcs 3030, 4000K, 80°,650lm, 2 years warranty | |
| DL4C-8W-CW | DL4C1008A8U-Y540WH5N101 | 8 W, 8pcs 3030, 5000K, 80°,650lm, 2 years warranty | |
| 5'', Φ150*89mm, AC220V~240V, Ra≥80,IP20, ≥25000H | |||
| DL5C-10W-WW | DL5C1011A8U-Y530WH5N101 | 10W, 11pcs 3030, 3000K, 80°, 900lm, 2 years warranty | |
| DL5C-10W-NW | DL5C1011A8U-Y540WH5N101 | 10W, 11pcs 3030, 4000K, 80°, 900lm, 2 years warranty | |
| DL5C-10W-CW | DL5C1011A8U-Y540WH5N101 | 10W, 11pcs 3030, 5000K, 80°, 900lm, 2 years warranty | |
| DL5C-12W-WW | DL5C1013A8U-Y530WH5N101 | 12W, 13pcs 3030, 3000K, 80°, 1050lm, 2 years warranty | |
| DL5C-12W-NW | DL5C1013A8U-Y540WH5N101 | 12W, 13pcs 3030, 4000K, 80°, 1050lm, 2 years warranty | |
| DL5C-12W-CW | DL5C1013A8U-Y540WH5N101 | 12W, 13pcs 3030, 5000K, 80°, 1050lm, 2 years warranty | |
| 6'',Φ175*101mm, AC220V~240V,Ra≥80,IP20, ≥25000H | |||
| DL6C-15W-WW | DL6C1016A8U-Y530WH5N101 | 15W, 16pcs 3030, 3000K, 90°, 1300lm, 2 years warranty | |
| DL6C-15W-NW | DL6C1016A8U-Y540WH5N101 | 15W, 16pcs 3030, 4000K, 90°, 1300lm, 2 years warranty | |
| DL6C-15W-CW | DL6C1016A8U-Y540WH5N101 | 15W, 16pcs 3030, 5000K, 90°, 1300lm, 2 years warranty | |
TIWIN Special design DLC LED Downlight
Anti-glare, high light efficiency, high CRI. simple design, combined with modern architecture perfectly.Deep cover non-glare design,Crocodile buckle design, easy to install. combined with modern architecture perfectly.
High-pressure die casting aluminum alloy, 3D heatreleasing construction.
Compliance with international safety and reliability standards.
Multiple electrical protection, with industrial grade high temperature electrolyte capacitor, Long life durability.
Specification:
| | JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. | ||||||
| Document ID | Product Specification | Version | 1.01 | ||||
| Compile Date | Page | 2014/1/1 | |||||
| Photo | | Item | Specifications | ||||
| Name | DLC Downlight | ||||||
| Product specification | AC220V~240V 50Hz/60Hz 8W/10W/12W/15W | ||||||
| Size | 4''/5''/5''/6 Φ125*70mm/Φ150*89mm/Φ150*89mm/Φ175*101mm | ||||||
| Installation method | Embedded mounted | ||||||
| dimensions | | ambient temperature | —25~35C° | ||||
| Cut-Size | Φ100mm/Φ125mm/Φ125mm/Φ150mm | ||||||
| Control method | No | ||||||
| IP grade | IP20 | ||||||
| Rated lifespan | ≥25000H | ||||||
| standard | GB7000.1-2007 | ||||||
| material | Aluminum | ||||||
| Power Efficiency | 90% | ||||||
| PF | 0.91 | ||||||
| Installations component | Snap-in | ||||||
| color | silver gray | ||||||
| CPD |
| Beam angle | 80° | ||||
| Luminous flux | 650lm/900lm/1050lm/1300lm | ||||||
| CCT | 3000K/4000K/5000K | ||||||
| CRI | Ra≥80 | ||||||
| Brand | / | ||||||
| Lamp type | 3030 | ||||||
| specification | 8/11/13/16 pcs chips, 0.26/0.34/0.34/0.42KG/PCS | ||||||
| specification | output: | ||||||
| Inner box size | K3A 3 layers: 166*162*88mm/191*187*107mm/191*187*107mm/217*213*125mm | ||||||
| Carton size | A=B 5 layers: 467*344*379mmmm/562*394*429mm/562*394*429mm/652*446*481mm | ||||||
| weight(Kg) | N.W = 5.5/7.2/7.2//8.9KG | ||||||
| packing | 20 pcs inner boxes per carton | ||||||

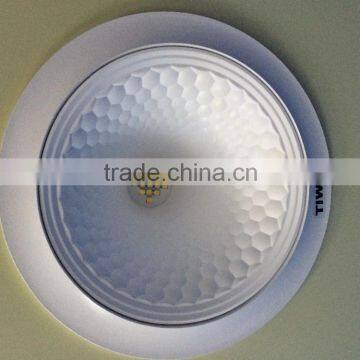

Downlight pictures:
Install places:
shopping malls, museums, hotels, rooms and other places.
We provide with online video, virtual lighting designers, ready to support the installation and fabric lamp for electrical technicians at any time.
