Home > Products > LED Batten Lights > TIWIN 9W LED 4000K Square Batten
TIWIN 9W LED 4000K Square Batten
- 50000 Piece / Pieces per Month
- Shanghai
- Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | TIWIN | Model Number: | CR010009A8U-N040SG4D101 |
Product Description
Luminous square tube
Powerful, adapt to modern commercial space, anti-glare design, high CRI, soft and even light
Applications: modern offices, commercial places, train and subway tunnels, etc.
Features

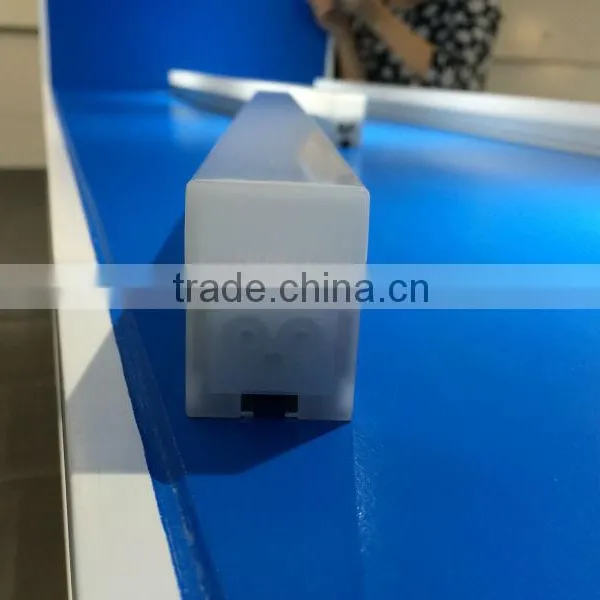

Beautiful and delicate square appearance design
Integration of the architecture environment, for the construction of a new generation of lighting
Compared with T8 tubes, energy saving increased by more than 56%
Variety of installation mode, fast and convenient.
Features: | ||
Middle power 0.1W 3014 SMD LED using A-class chip Aluminum + PC housing, no dange of broken glass Milky cover with soft and uniform light no hazardous materials No fluorescent flickering Warranty: 2 years | ||
Part No. | Description | |
L579 X W32 X H45, 9 Watt,220-240VAC,Ra≥70,IP20, ≥3000H | ||
LSB-60CM-CW | CR010009A8U-N065SG4D101 | 84pcs Edision, 6500K, 120°, 880lm, 2 years warranty |
LSB-60CM-NW | CR010009A8U-N040SG4D101 | 84pcs Edision, 4000K, 120°, 800lm, 2 years warranty |
LSB-60CM-WW | CR010009A8U-N030SG4D101 | 84pcs Edision, 3000K, 120°, 720lm, 2 years warranty |
L879 X W32X H45, 14 Watt, 220-240VAC, Ra≥70,IP20, ≥3000H | ||
LSB-90CM-CW | CR010014A8U-N065SG4D101 | 132pcs Edision, 6500K, 120°, 1300lm, 2 years warranty |
LSB-90CM-NW | CR010014A8U-N040SG4D101 | 132pcs Edision, 4000K, 120°, 1200lm, 2 years warranty |
LSB-90CM-WW | CR010014A8U-N030SG4D101 | 132pcs Edision, 3000K, 120°, 1100lm, 2 years warranty |
L1117 X W32X H45, 18 Watt, 220-240VAC, Ra≥70,IP20, ≥3000H | ||
LSB-120CM-CW | CR010018A8U-N065SG4D101 | 180pcs Edision, 6500K, 120°, 1700lm, 2 years warranty |
LSB-120CM-NW | CR010018A8U-N040SG4D101 | 180pcs Edision, 4000K, 120°, 1600lm, 2 years warranty |
LSB-120CM-WW | CR010018A8U-N030SG4D101 | 180pcs Edision, 3000K, 120°, 1500lm, 2 years warranty |
| JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. |
| |||||||
Document ID |
| Product Specification | Version | 1.01 | |||||
Compile Date |
| Page | 1/1 | ||||||
Pho t o |
| Category | Item | Specifications | |||||
Lamp Info. | Name | Luminous square tube | |||||||
Model | LLS3702 A09 | ||||||||
Product code | T-231-10061 | ||||||||
Product specification | AC220V 50Hz 9W | ||||||||
Size | L 579 x W32 x H45 mm | ||||||||
Installation method | Ceiling-mounted | ||||||||
ambient temperature | -10~40℃@20~85% | ||||||||
Angle adjustment | No
| ||||||||
Control method | No
| ||||||||
Protection grade | IP20 | ||||||||
Rated lifespan | ≥30000H | ||||||||
dimensions
|
| standard | standard | GB7000.1-2007 | |||||
certification | CCC | ||||||||
Major component | material | High pure aluminum | |||||||
Radiator component | High pure aluminum lamp body | ||||||||
Ottica | Light diffusion PC(milky white) | ||||||||
Installations component | Snap-in | ||||||||
color | Silver gray | ||||||||
CPD |
| Optical parameters | Beam angle | 132° | |||||
Luminous flux | 800±80LM | ||||||||
CCT | 6000±500K | ||||||||
CRI | Ra≥70 | ||||||||
Light source | Brand | Epistar | |||||||
Lamp type | SMD 3014 | ||||||||
specification | 0.1W ,84pcs | ||||||||
attachment |
| Electric appliance | Brand | TIWIN | |||||
name | Built-in LED driver | ||||||||
specification | output:9W,50mA constant current drive | ||||||||
IP | -- | ||||||||
Packing | Inner box size | K3A three layers L622 x W53 x H40mm | |||||||
|
| Carton size | A=B five layers L642 x W285 x H220mm | ||||||
weight(Kg) | N.W =0.36kg | ||||||||
enclosure | Installation instructions | ||||||||
packing | 25pcs inner boxes per carton |
