Specifications
universal led tube light round led batten 14wVariety of installation mode, no dark areas in series

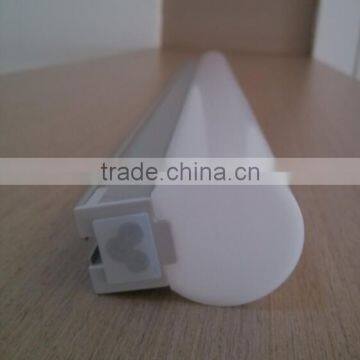

connect without shawdow round led batten 14w 1200mm
Luminous round tube
Applications: modern offices, commercial places, train and subway tunnels, etc.
Features
According to aluminum ceiling round tube conceptual design, perfectly combined with the ceiling
High-quality aluminum light body, good heat dissipation
Lamp cover is made of light diffusion PC, soft and even light
CREE/CITILED brand LED chip and driver, stable performance
Variety of installation mode, no dark areas in series
CR02 serie |
Working environment |
Installation |
Protection grade |
Color |
CCT
|
Beam angle |
Rated life |
Input voltage |
|
-10~+40℃ |
Ceiling |
IP 20 |
Aluminum |
6000K |
140° |
30000h |
220-240V/50-60Hz |
Specifications
MODEL# |
Dimensions |
Power of lamp |
Luminous flux |
Power efficiency |
Power factor |
CRI |
Electrical protection |
Package number |
CR020009A8U |
579*52*70mm |
9W |
800LM |
>90% |
>0.9 |
70 |
Class I |
25PCS/box |
CR020014A8U |
879*52*70mm |
14W |
1200LM |
>90% |
>0.9 |
70 |
Class I |
25PCS/box |
CR020018A8U |
1177*52*70mm |
18W |
1600LM |
>90% |
>0.9 |
70 |
Class I |
25PCS/box |
IV. Production capability
TIWIN owns automated production lines, production equipment and instruments, including 9 SMT production lines, 65 sets equipments, such as: automatic wave soldering, reflow soldering, automatic braiding, automatic optical spectral machines and other production equipments..
We own 41 assembly lines, with more than 185 sets automatic printing machine, glue machine, burn-in machine and waterproof IP67/68/65 test equipments.
