Specifications

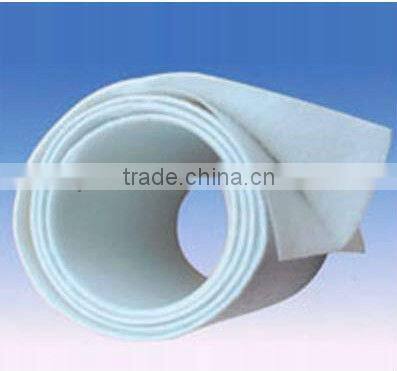

Geotextile/polyester fabric1. manufacturer
2.needle punched geotextile
3.ISO9001:2008
Geotextile
The product is widely used engineering cloth. It has many functions as follows: water impermeability, filtering, draining, isolating, reinforcing, protecting, sealing and so on.
Main Properties:

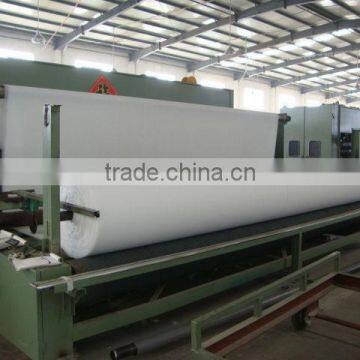

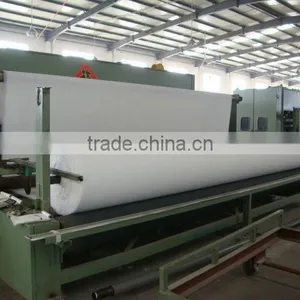

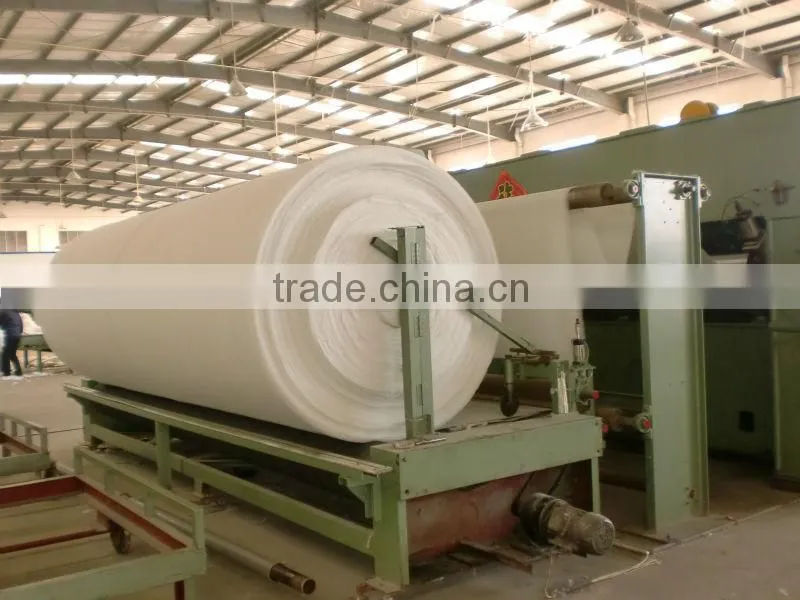

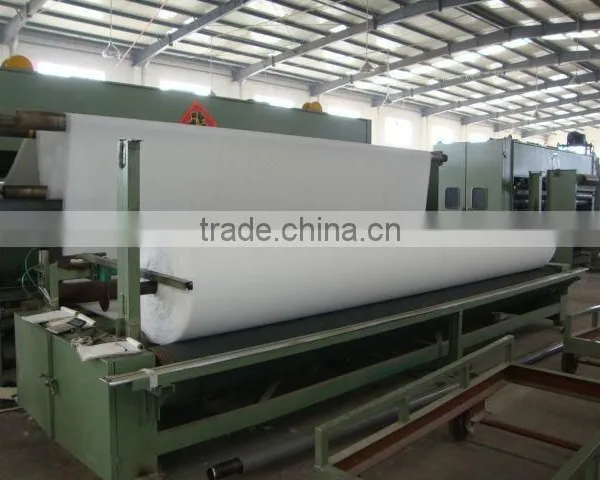

1. It is used high strength polyester clip as material. It is finished through two procedures: spinning and needle punching. The comprehensive carrying capacity is further enhanced.
2. Strong tensile strength, anti-aging and long service life.
3. It is not easy to deform, decompose and differentiation.
4. Excellent anti-acid and anti-alkali ability, strong anti-moth and anti-mould ability.
5. Excellent permeability.
6. Excellent high and low temperature resistance. It can adapt to various environment.
Item |
Unit |
Specifications |
||||||||||
Weight Per Unit Area |
g/m2 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
800 |
|
Thickness |
mm≥ |
1.1 |
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3.0 |
3.6 |
4.1 |
5.0 |
|
Tensile Strength |
MD |
kN/m≥ |
2.8 |
4.7 |
6.7 |
8.2 |
9.8 |
11.3 |
12.8 |
16.4 |
19.5 |
25.8 |
CD |
kN/m≥ |
3.0 |
5.2 |
8.0 |
9.8 |
11.7 |
13.6 |
15.4 |
19.7 |
23.4 |
31.2 |
|
Elongation at Break |
MD |
% |
91 |
89 |
88 |
85 |
75 |
60 |
65 |
59 |
61 |
59 |
CD |
% |
87 |
84 |
82 |
79 |
82 |
71 |
59 |
58 |
65 |
62 |
|
Tearing Strength |
kN |
0.10 |
0.12 |
0.16 |
0.20 |
0.24 |
0.28 |
0.33 |
0.42 |
0.46 |
0.54 |
|
CBR Bursting Strength |
kN≥ |
0.5 |
0.7 |
1.1 |
1.3 |
1.7 |
2.0 |
2.3 |
2.9 |
3.5 |
4.4 |
|
Equivalent Aperture(O95) |
mm |
0.15 |
0.14 |
0.13 |
0.12 |
0.11 |
0.10 |
0.09 |
0.08 |
0.07 |
0.07 |
|
Vertical Permeability Coefficient |
cm/s |
(6-0.2)×10-1 |
||||||||||
