Specifications

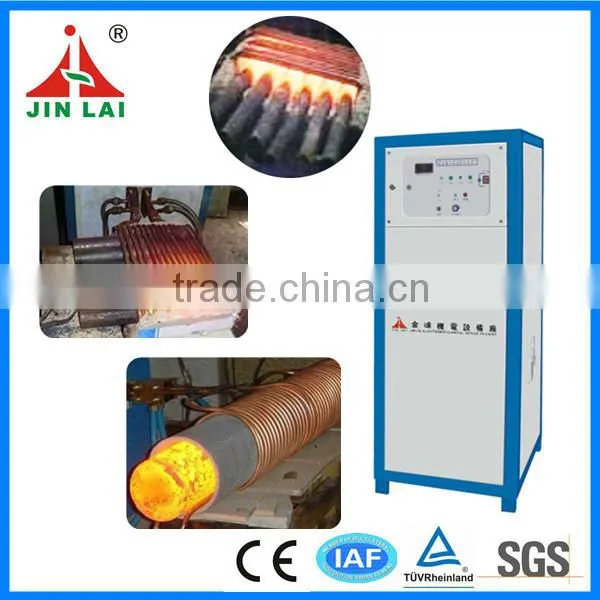

Induction Forging Heating Machine1.Low power consumption
2.Widely applicable.
3.IGBT Technology.
IGBT Medium Frequency Induction Heating Generator
Main Characteristics:
1. Big power, low frequency and good diathermancy.
2. High efficiency, low power consumption, easy installation and simple operation.
3. It can continuously work for 24 hours for the comprehensive full load design.
4. It adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
5. It has functions as overvoltage, over-current, overheat, phase loss and water shortage alarm indications as automatic control and protection.
6. Compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.
Main Specifications:
Model |
JLZ-260KW |
|
Input power desire |
3 phase 380V 50/60HZ |
|
Oscillate power max |
260KW |
|
Max input current |
320A |
|
Oscillate frequency |
0.5-10KHZ |
|
Cooling water desire |
>0.6MPa 6L/Min |
|
Duty cycle |
100% 40°C |
|
|
Dimensions(L*W*G) Net weight |
870*850*1800mm |
560*350*550mm |
350kg |
550*300*420mm |
|
Cable length |
2-6(Meters) |
|
Spare parts for JLZ-260KW Machine
Item |
Name of machine or parts |
Specification |
Amount |
1 |
JLZ-260KW machine |
- |
1 pc |
2 |
Foot switch |
3 core |
1 pc |
3 |
Connect cable |
- |
1 set |
4 |
Induction Coils |
- |
1set |
5 |
Coil connect pole |
- |
2 set |
6 |
English Instruction Manual |
- |
1 |
7 |
Packing list and receipt |
- |
1 |
8 |
Guarantee card |
- |
1 |
9 |
Products certificate |
- |
1 |
Application:
