Specifications
Jinlai Induction Electric Heating Machine1.Fast heating.
2.Widely applicable.
3.Low power consumption.

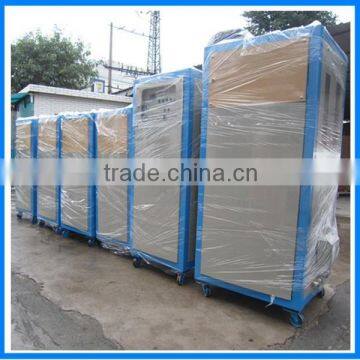

Jinlai Induction Electric Heating Machine
Main Feature:
l Big power, low frequency and good diathermancy.
l High frequency, low power consumption, easy installation and simple operation.
l It can continuously work for 24 hours for the comprehensive full load design.
l It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
l It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
l Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.
Technical Parameters:
Model | JLZ-35KW | |
Input power desire | 3 phase 380V 50/60HZ | |
Oscillate power max | 35KW | |
Max input current | 51A | |
Oscillate frequency | 1-20KHZ | |
Cooling water desire | >0.3MPa 4L/Min | |
Duty cycle | 100% 40°C | |
Dimensions | Generator | 620*550*860mm |
Transformer | 620*480*500mm | |
Net weight | 43kg/50kg | |
Cable length | 2-6(Meters) | |
Spare Parts For JLZ-35KW
Item | Name of machine or parts | Specification | Amount |
1 | JLZ-35KW Generator | - | 1 pc |
2 | JLZ-35KW transformer | - | 1 pc |
3 | Foot switch | 3 core | 1 pc |
4 | Induction Coils | - | 2 sets |
5 | Coil connect pole | - | 2 set |
6 | Instruction Manual | - | 1 |
7 | Packing list and receipt | - | 1 |
8 | Guarantee card | - | 1 |
9 | Products certificate | - | 1 |
Our Jinlai Induction Heating Machine is divided into four series according to output frequency:
1) Medium Frequency Series(JLZ): 1KHZ-20KHZ
2) Ultrasonic Frequency Series (JLC) : 10KHZ-30KHZ
3) High Frequency Series (JL) : 30KHZ-100KHZ
4) Ultrahigh Frequency (JLCG) : 100KHZ-1.1MHZ
