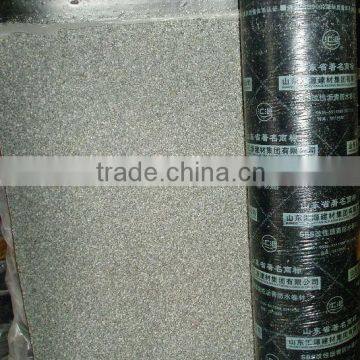

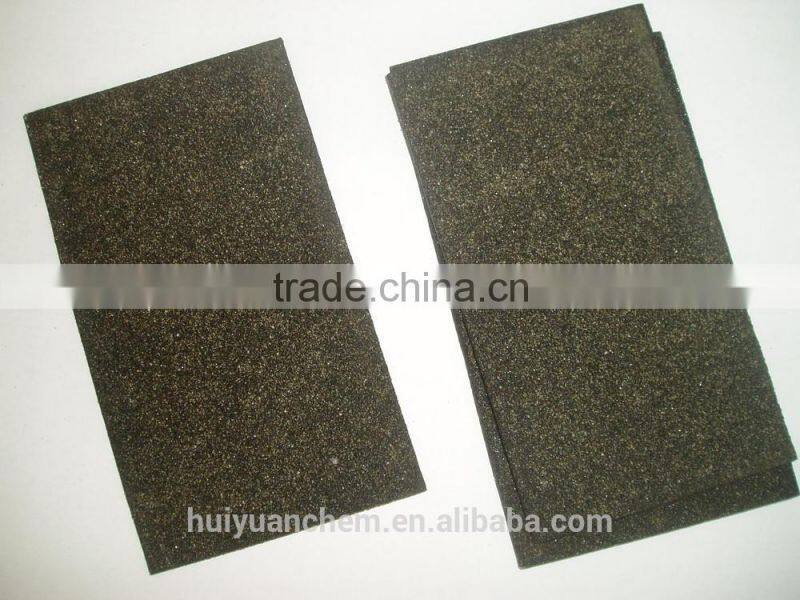

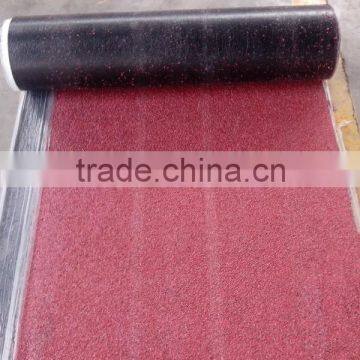

Best Quality Manufacturer: Bitumen Building Polyester Reinforced Waterproof Membrane
US$ 10 - 20
MOQ: 500 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HUIYUAN or other
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Best Supplier: Waterproofing Membranes for RoofUS$ 10 - 20MOQ: 500 Rolls -
RED/GREE/GREY MINERAL Asphalt Waterproofing MembranesUS$ 10 - 20MOQ: 500 Rolls
-
Hot Sales APP Waterproof Membrane With Different Colors, ThicknesssUS$ 10 - 20MOQ: 500 Rolls
-
APP Waterproof Membrane With Colored MineralUS$ 10 - 20MOQ: 500 Rolls
-
Largest Factory: Slope Roof Waterproofing Membrane, SBS/APP Bitumen Roll RoofingUS$ 1.94 - 3.39MOQ: 500 Rolls
Place of Origin
Shandong, China
Brand Name
HUIYUAN or other
SBS/APP modified bitumen waterproof membrane
1.Thickness:2/3/4mm
2.Base:PY/G
3.Cover:PE/S/M/Al
[Construction Points]
Construction methods——hot melt, cold and hot adhering methods could be adopted to adhere sheets and substrates, or different sheets. While constructed with hot melt method, the thickness of membrane must be over 3mm; if constructed with cold adhering method, the thickness of cold adhesive must be 0.5~1mm.
Substrate preparation——waterproofing substrates shall be flat, solid, and be dried sufficiently. Detail structures shall meet requirements of related stipulations and designs.
Waterproofing layer——there are two kinds of structures of laminated and single layers, for laminated layers, thickness of each layer shall be not lower than 3mm, with complete adhesion between each other; for single layer, thickness of the single layer shall not be lower than 4mm.
Overlapping——overlapping between sheets shall be completely adhered, with 80-100mm width of jointed area.
Vertical surface ends——fasten with metal battens and bolts, coat special sealant in all edges.
Protection isolation layer construction——protection isolation layer shall be set on the exterior surface of waterproof layers according to related stipulations and designs, if use shale sheets or mineral grain coating surfaces as exposed waterproof layers, additional protective layer could be omitted; isolation layers shall be set between waterproof layers and rigid protective layers.
[Attentions for Construction]
·Construction shall not be carried out in rain, snow or over 5 degree wind weather;
·There shall be sufficient safety protective facilities in construction site, place firefighting devices according to stipulations.
Installation Sketch point
Clean the substrate using broom or high pressure dusty cleaner.
Apply primer
Heat the membrane bottom using a high temperature flame gun.
Push forward while the primer and membrane oil melted
Use a roller to push hard the membrane surface to ensure it stick firmly
Technical data Confirming to GB18242-2008
| No. | Item | I | II | |||||
| PY | G | PY | G | PYG | ||||
| 1 | Soluble content/(g/m2)≥ | 3mm | 2100 | |||||
| 4mm | 2900 | |||||||
| 5mm | 3500 | |||||||
| Test | No flame | No flame | ||||||
| 2 | Heat resistance | °C | 90 | 105 | ||||
| ≤mm | 2 | |||||||
| Test | No flow, no dripping | |||||||
| 3 | Low temperature flexibility/°C | -20 | -25 | |||||
| No crack | ||||||||
| 4 | Impermeability 30minutes | 0.3MPa | 0.2MPa | 0.3MPa | ||||
| 5 | Tension | Maximum/(N/50mm) | 500 | 350 | 800 | 500 | 900 | |
| Secondly-Maximum | 800 | |||||||
| Test | No crack, no apart | |||||||
| 6 | Elongation | Maximum/%≥ | 30 | 40 | ||||
| Secondly-Maximum≥ | 15 | |||||||
| 7 | Oil Leaking | Pieces≤ | 2 | |||||
1. Usage:
It is widely used in waterproof and damp-proof works of roofs, basements, bathrooms and pools of industrial and civil architectures, waterproof, damp-proof, airproof, leakage-proof works of bridges, parking lots, swimming pools, tunnels and reservoirs and maintenance works of asphalt roofs.
2. SBS modified asphalt waterproof coiled materialsis particularly suitable for buildings in cold regions where structure frequently changes.
3. APP modified asphaltwaterproof coiled materials is particularly suitable to buildings in hightemperature regions where there is strong solar radiation.
