Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Silicon Controlled Rectifier Electric Induction Furnace (JL-KGPS)
Silicon Controlled Rectifier Electric Induction Furnace (JL-KGPS)
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SCR Big Power Inductotherm Melting Furnace (JL-KGPS-160KW)US$ 1,000 - 100,000MOQ: 1 Set -
150KG KGPS Iron Scrap Induction Melting EquipmentUS$ 14,500 - 20,000MOQ: 1 Set
-
Electrical Induction Melting FurnaceUS$ 1,000 - 100,000MOQ: 1 Set
-
KGPS Industrial Steel Iron Copper Brass Induction Melting Furnace For SaleUS$ 1,000 - 100,000MOQ: 1 Set
-
Hot Sale Metal Melting and Casting FurnaceUS$ 1,000 - 100,000MOQ: 1 Set
Condition
New
Type
Induction Furnace
Usage
Melting Furnace
Place of Origin
Guangdong, China
Brand Name
Jinlai
Model Number
JL-KGPS
Voltage
3 phase 380V
Certification
ISO9001:2008, SGS,CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Silicon Controlled Rectifier Electric Induction Furnace
Product Description
Overview and Application:
Medium frequency induction melting furnace is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It’s applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel sliver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance and features:
- Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
- Rapidly melting, low production cost, low pollution, conforming to environmental protection requirement;
- Melting directly from low temperature, available for fully emptying of solution, easy change of melting material;
- Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;

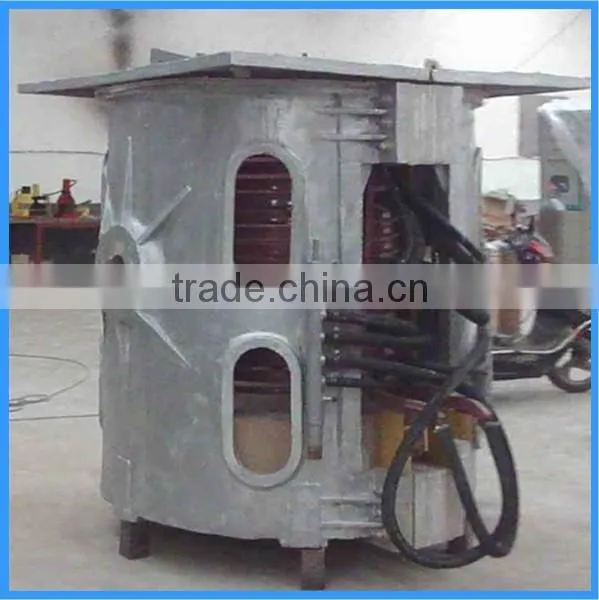

- Furnace shell with cast aluminum ally or steel construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
- Adapt angle of the inverter automatic adjustment circuit design, automatically match the load impedance, keep the equipment running in good working condition without adjusting the compensation capacitance, automatically diagnose error and easy to maintenance.
Technical Parameters
| Medium Frequency Induction Heating Machine | ||||||||||||
| Model NO. | Input power(50/60HZ) |
Water consumption Ton/hour) |
Power/Ton(KW/H) | |||||||||
| (capacity) | power (KW) | Input voltage (V) | current | Direct current (A) | Direct voltage (V) | MF voltage (V) | MF frequency (KHZ) |
steel/ Iron |
copper/ Brass |
aluminum |
Melting time (minute/ furnace) |
|
| (A) | ||||||||||||
| JL-KGPS--0.05T | 50 | 380 | 80 | 100 | 500 | 750 | 1-2.5 | 5-10 | 850 | 450 | 600 | 30-70 |
| JL-KGPS--0.1T | 100 | 380 | 160 | 200 | 500 | 750 | 1-2.5 | 5-10 | 800 | 450 | 580 | 30-70 |
| JL-KGPS--0.2T | 160 | 380 | 256 | 320 | 500 | 750 | 1-2.5 | 5-10 | 750 | 440 | 560 | 30-70 |
| JL-KGPS--0.25T | 160 | 380 | 256 | 320 | 500 | 750 | 1-2.5 | 5-10 | 750 | 440 | 550 | 30-70 |
| JL-KGPS--0.3T | 200 | 380 | 320 | 400 | 500 | 750 | 1-2.5 | 5-10 | 700 | 430 | 530 | 35-60 |
| JL-KGPS--0.5T | 400 | 380 | 640 | 800 | 500 | 750 | 1-2.5 | 10-30 | 650 | 430 | 500 | 40-60 |
| JL-KGPS--0.75T | 500 | 380 | 800 | 1000 | 500 | 750 | 1-2.5 | 10-30 | 630 | 420 | 460 | 40-70 |
| JL-KGPS--1T | 800 | 380 | 1280 | 1600 | 500 | 750 | 0.7-1 | 10-30 | 600 | 410 | 440 | 40-70 |
| JL-KGPS--1.5T | 1200 | 380 | 1920 | 2400 | 500 | 750 | 0.7-1 | 20-50 | 580 | 400 | 420 | 45-80 |
| 720 | 1010 | 1260 | 950 | 1650 | 40-70 | |||||||
| JL-KGPS--2T | 1500 | 720 | 1263 | 1578 | 950 | 1200 | 0.5-1 | 20-50 | 560 | 400 | 410 | 40-85 |
| 950 | 960 | 1200 | 1200 | 1650 | 40-75 | |||||||
| JL-KGPS--3T | 2000 | 720 | 1600 | 250 | 500 | 1200 | 0.5-1 | 30-60 | 530 | 400 | 410 | 40-85 |
| 950 | 1280 | 1684 | 1200 | 1650 | 45-75 | |||||||
| JL-KGPS--5T | 3000 | 0.3-1 | 30-60 | 510 | 400 | 410 | ||||||
| 1000 | 1850 | 2280 | 1315 | 1850 | 45-85 | |||||||
| JL-KGPS--10T | 5000 | 1000 | 2130 | 2660 | 1315 | 1850 | 0.3-1 | 50-100 | 500 | 400 | 410 | 45-85 |
| JL-KGPS--15T | 9000 | 1000 | 5475 | 6845 | 1315 | 1850 | 0.3-1 | 60-100 | 500 | 400 | 410 | 45-85 |
| JL-KGPS--20T | 15000 | 1000 | 9125 | 11406 | 1315 | 1850 | 0.3-1 | 100-150 | 500 | 400 | 410 | 45-85 |
| JL-KGPS--30T | 18000 | 1000 | 10950 | 13688 | 1315 | 1850 | 0.3-1 | 100-150 | 500 | 400 | 410 | 45-85 |
| Interior temperature:1.steel 1650°C 2.iron1450°C copper 1150 °C 4.brss 950 °C 5. aluminum 700 °C 6.tin:400 °C | ||||||||||||
