MF Series Top Sale Low Price High Quality Melting Down Scrap Metal Aluminum Induction Melting Furnace
(JLZ-90)
MF Series Top Sale Low Price High Quality Melting Down Scrap Metal Aluminum Induction Melting Furnace (JLZ-90)
Main parts of the melting furnace system
1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.
Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 2hours, the first melting when the furnace is cold ,and it will take about 1-1.5hours for the later melting after the furance is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
MF Series Top Sale Low Price High Quality Melting Down Scrap Metal Aluminum Induction Melting Furnace (JLZ-90)
Main Technical Data
Model | JLZ-90KW | |
Input power desire | 3 phase 380V 50/60HZ | |
Oscillate power max | 90KW | |
Input power | 90KVA | |
Max input current | 135A | |
Output current | 25-170A | |
Output voltage | 70-550V | |
Oscillate frequency | 1-20KHZ | |
Cooling water desire | Furnace + induction heater | ≥0.3MPa ≥20L/Min |
| Induction heater | ≥0.2MPa ≥6L/Min |
Duty cycle | 100% 40°C | |
Heating Speed | First cool furnace: 2hours Second heated furnace: 1-1.5hours | |
Dimension | 650*600*1520mm | |
Net weight | 140kg | |
Cable length | 2-6(Meters)
| |
Capacity | 180KG | |
MF Series Top Sale Low Price High Quality Melting Down Scrap Metal Aluminum Induction Melting Furnace (JLZ-90)
List of Accessories In the Package
Item | Name of machine or parts | Specification | Amount |
1 | JLZ-90KW Induction heater | - | 1 pc |
2 | 180KG tilting type melting furnace |
| 1 set |
3 | Foot pedal | 3 core | 1 pc |
4 | Connect cable | - | 1 set |
5 | Instruction Manual | - | 1 pc |
6 | Product catalog | - | 2 sets |
Induction heating power and Furnace:
Graphite Crucible:

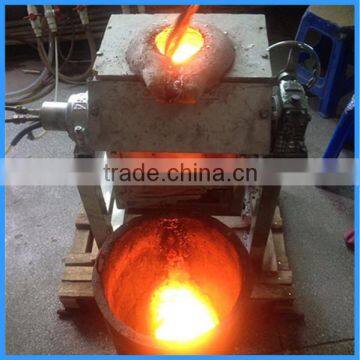

Working Photos:
Packaging & Shipping:
Production Process:
(Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace)
Model | Steel ,iron | Copper, Gold , Silver | Aluminum |
JLZ-15 15KWMelting Furnace |
| 10KG | 3KG |
JLZ -25 25KW Melting Furnace | 5KG | 20KG | 6KG |
JLZ -35 35KW Melting Furnace | 10KG | 30KG | 10KG |
JLZ -45 45KW Melting Furnace | 18KG | 50KG | 20KG |
JLZ -70 70KW Melting Furnace | 25KG | 100KG | 30KG |
JLZ -90 90KW Melting Furnace | 40KG | 120KG | 40KG |
JLZ -110 110KW Melting Furnace | 50KG | 150KG | 50KG |
JLZ -160 160KW Melting Furnace | 100KG | 250KG | 100KG |
Medium Frequency Seris JLZ (100KHZ-1.1MHZ)
Company Profile:
Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996, which is
engaged in R&D, production and sale of solid Induction heating machine professionally.
Several senior experts of induction heating equipment gathered here, who initiate the
induction heating machines with environmental protection and highly effective energy
conservation, positively and diligently.
If you would like to see more products of our company, please click on the following picture and then contact us.
