Top Sale Bronze Copper Induction Smelting Furnace Copper Brass Bronze Small Melting Furnace
(JLZ-15)
Top Sale Bronze Copper Induction Smelting Furnace Copper Brass Bronze Small Melting Furnace (JLZ-15)

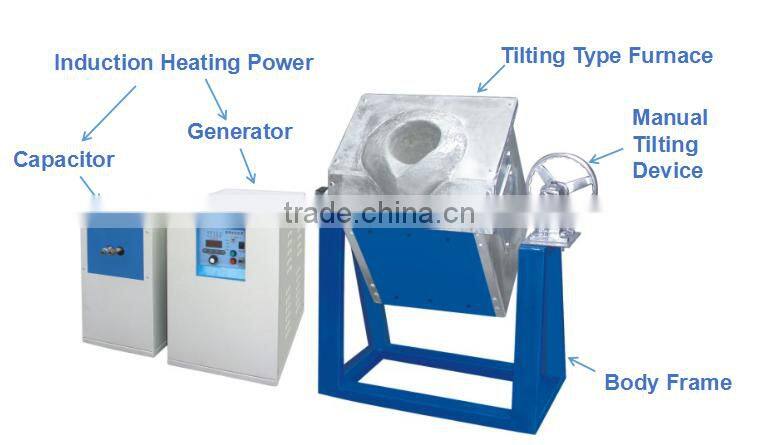

Main parts of the melting furnace system
1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.
Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
Top Sale Bronze Copper Induction Smelting Furnace Copper Brass Bronze Small Melting Furnace (JLZ-15)
Main Technical Data
Model | JLZ-15KW | ||
Input power desire | 3 phase 380V 50/60HZ | ||
Oscillate power max | 15KW | ||
Output current | 3-22A | ||
Output voltage | 70-520V | ||
Oscillate frequency | 1-20KHZ | ||
Cooling water desire | Furnace + induction heater | ≥0.2MPa ≥6L/Min | |
| Induction heater | ≥0.2MPa ≥3L/Min | |
Duty cycle | 100% 40°C | ||
Heating Speed | First cool furnace: 50-60mins Second heated furnace: 20-30mins | ||
Dimension | Heating power | Generator: 560*280*540mm, Transformer: 540*280*400mm | |
| furnace | 950*600*790mm | |
Net weight | 65kg | ||
Cable length | 2-6(Meters)
| ||
Capacity | 10KG | ||
Top Sale Bronze Copper Induction Smelting Furnace Copper Brass Bronze Small Melting Furnace (JLZ-15)
List of Accessories In the Package
Item | Name of machine or parts | Specification | Amount |
1 | JLZ-15KW Generator | - | 1 pc |
2 | JLZ-15KW Capacitor | - | 1 pc |
3 | 10KG Tilting type melting furnace |
| 1 set |
4 | Foot pedal | 3 core | 1 pc |
5 | Connect cable | - | 1 set |
6 | Instruction Manual | - | 1 pc |
7 | Product catalog | - | 2 sets |

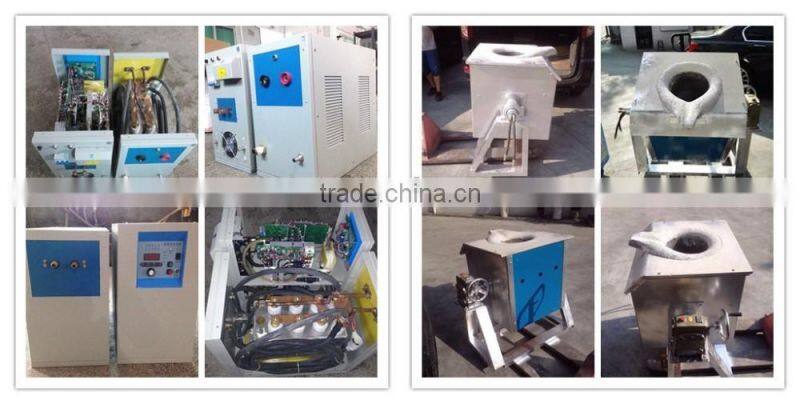

Induction Heating Power and Furnace:

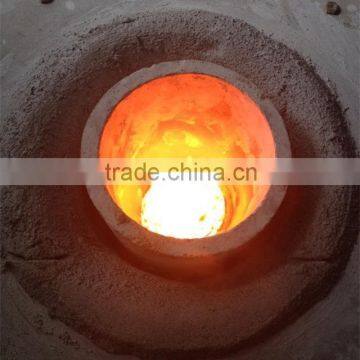

Graphite Crucible:
Making Steps:
(Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace)
Model | Steel ,iron | Copper, Gold , Silver | Aluminum |
JLZ-15 15KWMelting Furnace |
| 10KG | 3KG |
JLZ -25 25KW Melting Furnace | 5KG | 20KG | 6KG |
JLZ -35 35KW Melting Furnace | 10KG | 30KG | 10KG |
JLZ -45 45KW Melting Furnace | 18KG | 50KG | 20KG |
JLZ -70 70KW Melting Furnace | 25KG | 100KG | 30KG |
JLZ -90 90KW Melting Furnace | 40KG | 120KG | 40KG |
JLZ -110 110KW Melting Furnace | 50KG | 150KG | 50KG |
JLZ -160 160KW Melting Furnace | 100KG | 250KG | 100KG |
Medium Frequency Seris JLZ (100KHZ-1.1MHZ)
Company Profile:
Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996,
which is engaged in R&D, production and sale of solid Induction heating machine
professionally.Several senior experts of induction heating equipment gathered
here, who initiate the induction heating machines with environmental protection
and highly effective energy conservation, positively and diligently.
