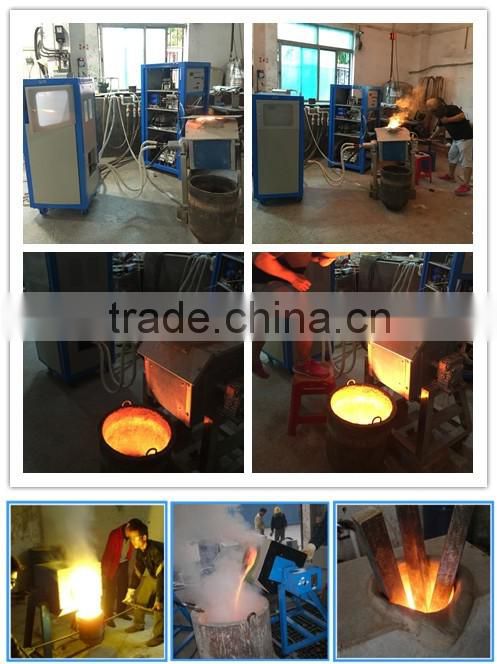

Medium Frequency Induction Salt Smelting Furnace Electric Furnace (JLZ-90)
Medium Frequency Induction Salt Smelting Furnace Electric Furnace (JLZ-90)

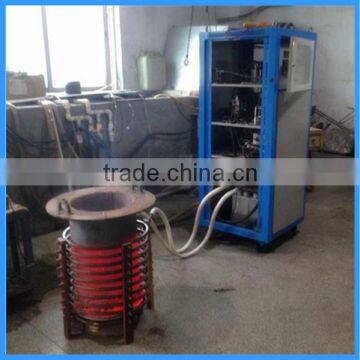

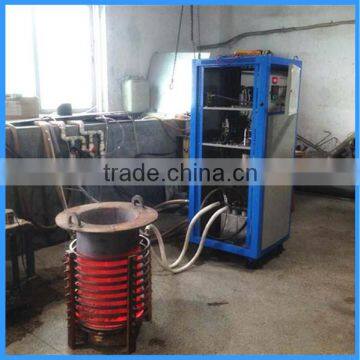

Main parts of the melting furnace system
1. M.F Induction Heating Power.

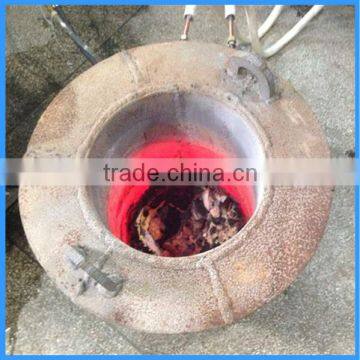

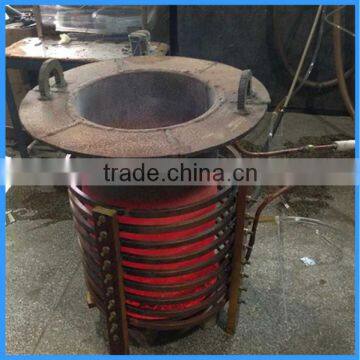

2. Tilting type Melting Furnace.
Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
Main Technical Data
Model | JLZ-90KW | |
Input power desire | 3 phase 380V 50/60HZ | |
Oscillate power max | 90KW | |
Max input current | 135A | |
Output current | 25-170A | |
Output voltage | 70-550V | |
Oscillate frequency | 1-20KHZ | |
Cooling water desire | Furnace + induction heater | ≥0.3MPa ≥20L/Min |
| Induction heater | ≥0.2MPa ≥6L/Min |
Duty cycle | 100% 40°C | |
Heating Speed | First cool furnace: 50-60mins Second heated furnace: 20-30mins | |
Dimension | 650*600*1520mm | |
Net weight | 140kg | |
Cable length | 2-6(Meters)
| |
Capacity | 120KG | |
Medium Frequency Induction Salt Smelting Furnace Electric Furnace (JLZ-90)
Company Profile:
Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996,
which is engaged in R&D, production and sale of solid Induction heating machine
professionally.Several senior experts of induction heating equipment gathered
here, who initiate the induction heating machines with environmental protection
and highly effective energy conservation, positively and diligently.
If you would like to see more products of our company, please click on the following picture and then contact us.
