Specifications
induction heater for bolts1.IGBT technology.
2.Perfect protection function.
3.Converting frequency.
induction heater for bolts
Main Feature
1. IGBT inversion technology reduce operating cost
2. The absolute load merit rate design, can work continuously for 24 hours.
3. The digital phase locked realizes following frequency automatically
4. Design in modules It s installed facility and use conveniently
5. The perfect protection function ,insuring the reliability and easily maintaining of the equipments
6. The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95% efficiently
7. Economically ,and environmental protection ,it can replace of the gas/ coal /electronic tube induction heating machine
Technical parameter
Name | Induction Hardening Machine |
Model | JLC-80KW |
Work power | 3 phase 380V |
Maximum input current | 150A |
Output power | 80kw |
Fluctuating frequency | 10-30KHZ |
The flow rate of cooling water | 0.4Mpa, 32L/min |
Input water temperature protection point | <40°C |
Product size | main :880X500X1060mm |
transformer :590x440x570mm | |
Net weight | main : 110kg |
transformer : 70kg | |
Timing | 1M~99.99H 1S~99.99M 0.01S~99.99S |
The whole set including
1).One Generator , One Transformer; 2). Two induction coils;
3). One foot switch; 4). One Instruction Manual;
5). One Product certificate of quality; 6). One warranty card

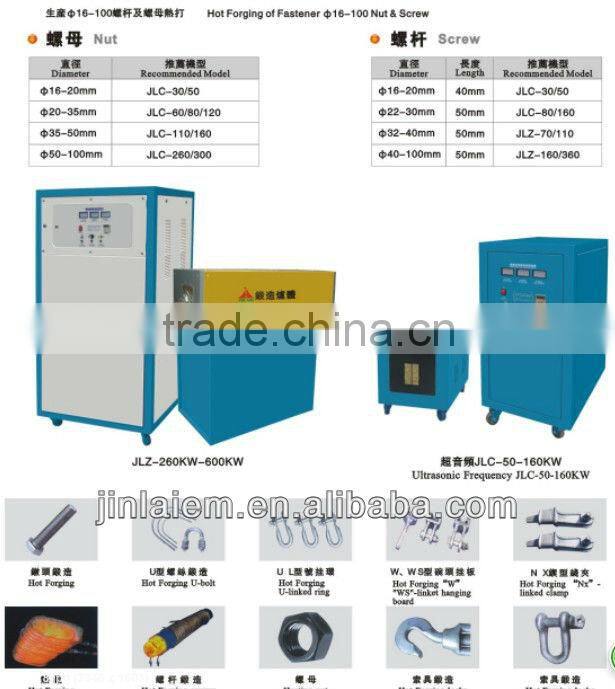

| Model | Sizes for forging | Weight | Machine output | Customers requirement |
| JLC-30KW 1.5KG/Min | φ16*30 | 47g | 32pcs/min | 24-27pcs/min |
| φ16*35 | 54g | 27pcs/min | 23-25pcs/min | |
| φ18*40 | 80g | 18pcs/min | 20-23pcs/min | |
| φ20*40 | 100g | 15pcs/min | 20-23pcs/min | |
| JLC-50KW 2KG/Min | φ22*50 | 149g | 13pcs/min | 10-14pcs/min |
| φ24*60 | 213g | 10pcs/min | 8-10pcs/min | |
| φ25*70 | 210g | 8pcs/min | 8-10pcs/min | |
| JLC-60KW 2.7KG/Min | φ25*70 | 270g | 10pcs/min | 8-10pcs/min |
| φ27*70 | 315g | 8pcs/min | 8-10pcs/min | |
| φ28*70 | 339g | 7pcs/min | 6-8pcs/min | |
| JLC-80KW 3.8KG/Min | φ27*70 | 315g | 12pcs/min | 13-14pcs/min |
| φ28*70 | 339g | 11pcs/min | 10-12pcs/min | |
| φ30*60 | 330g | 11pcs/min | 10-12pcs/min | |
| φ36*70 | 559g | 7pcs/min | 6-8pcs/min | |
| JLC-120KW 4.8KG/Min | φ36*70 | 559g | 9pcs/min | 8-10pcs/min |
| φ40*70 | 619g | 7pcs/min | 7-9pcs/min | |
| φ42*65 | 707g | 7pcs/min | 7-9pcs/min | |
| φ46*65 | 849g | 6pcs/min | 6-8pcs/min | |
| φ50*70 | 1080g | 4.5pcs/min | 4-6pcs/min | |
| JLC-160KW 8KG/Min | φ46*65 | 849g | 10pcs/min | 8-10pcs/min |
| φ50*70 | 1080g | 8pcs/min | 8-10pcs/min | |
| φ55*70 | 1306g | 7pcs/min | 6-8pcs/min | |
| φ60*80 | 1777g | 5pcs/min | 4-6pcs/min | |
| φ65*100 | 2607g | 3pcs/min | 3-4pcs/min | |
| φ70*150 | 4535g | 1.5pcs/min | 2pcs/min |
