15KW High Frequency Braze Solder Welding Machine Induction Heater for Thermocouple (JL-15)
15KW High Frequency Braze Solder Welding Machine Induction Heater for Thermocouple (JL-15)
Main Characteristics:
- 1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically.
- 2. High frequency, heated quickly, its power consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
- 3. Security and reliability, the equipments have the secure voltage and it's secure to operate.
- 4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
- 5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
- 6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc.
Model | JL-15KW |
Input power desire | Single phase 220V 50HZ |
Oscillate power max | 15KW |
Max input current | 37A |
Oscillate frequency | 30-100KHZ |
Cooling water desire | >0.2MPa 2-6L/Min |
Duty cycle | 80% 40°C |
Dimensions(L*W*H) | 500*380*520mm |
Net weight | 32kg |
Cable length | 2-6(Meters) |
The principle of high frequency induction heating is that apply high frequency alernating current to a conduct that is curled to cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the deriction of self-capturing with flux(rotary current), the induced current then generates heat under the influence of the eddy current, so this heating method is called induction heating. hence, metal and other objects under heated can be heated without contact. at this moment, the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be concentratedly heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.

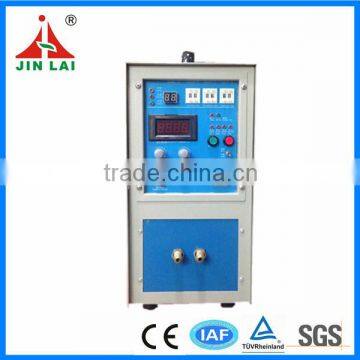

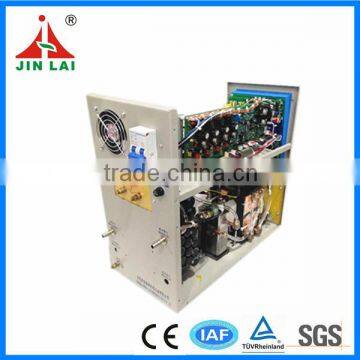

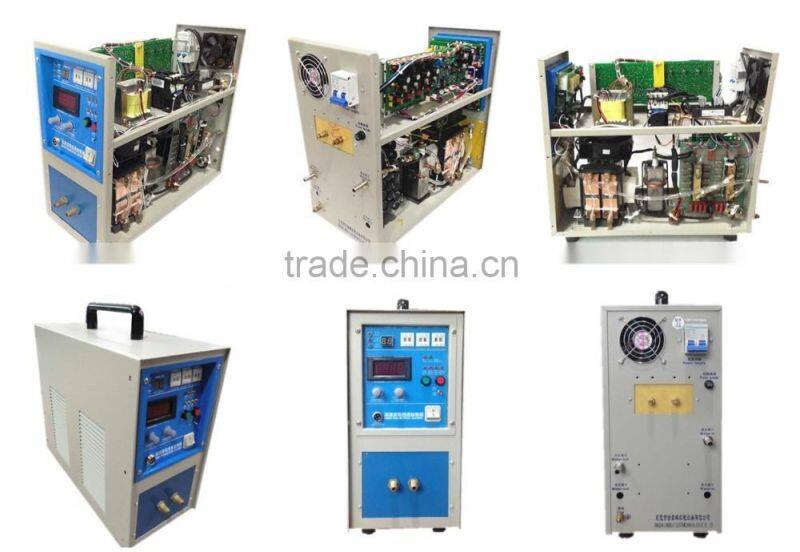

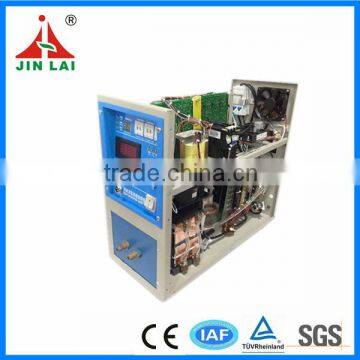

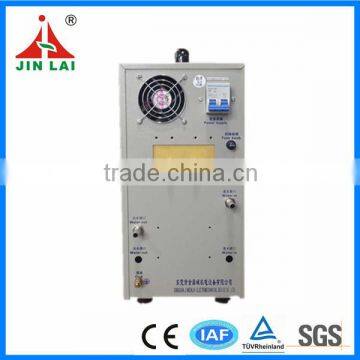

JL-15 Induction Heating Machine:

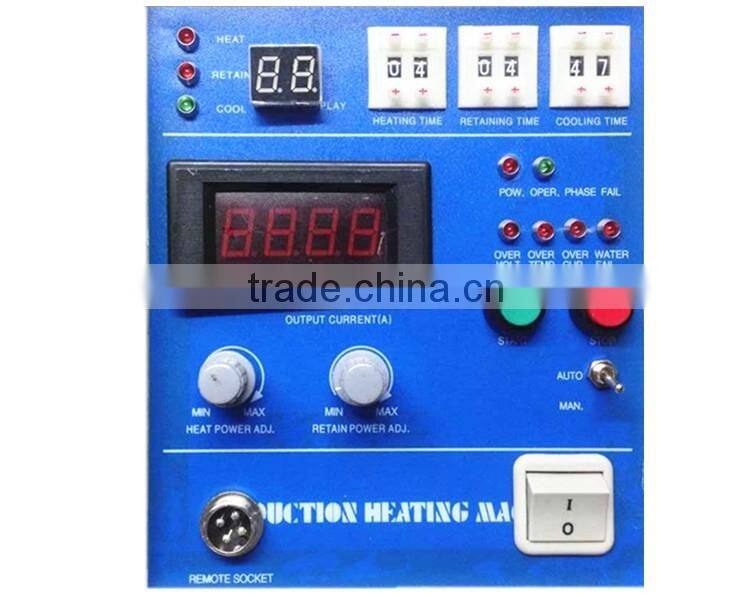

JL-15 Face-plate:

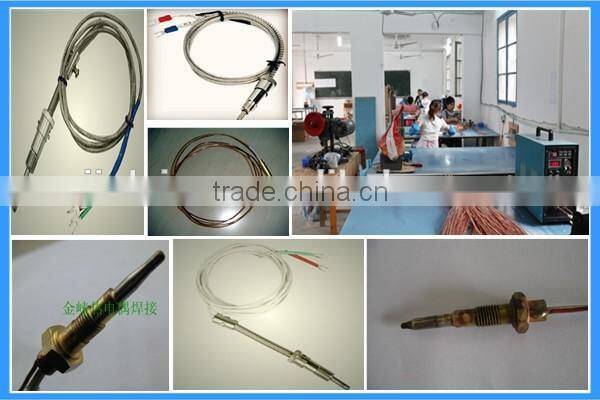

Application: Induction Heating Machine for Brazing Welding Soldering Thermocouple
Applications:

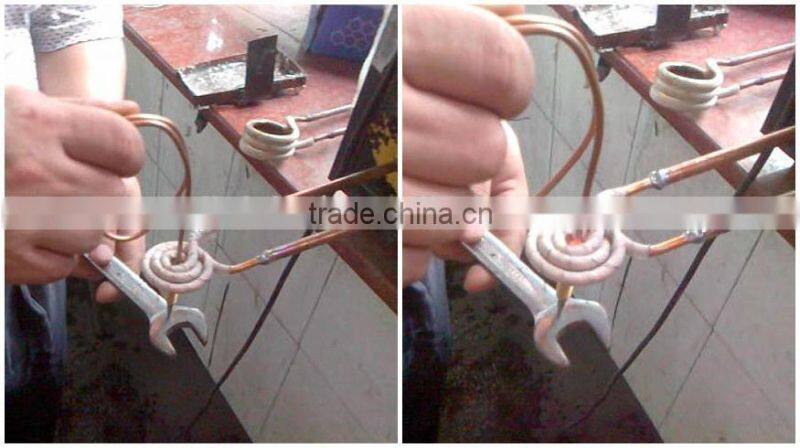

- 1. Metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
- 2. Alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
- 3. Carbide saw blade welding: diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
- 4. Metal welding: such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
- 5. make machine according to customers' actual working situation.

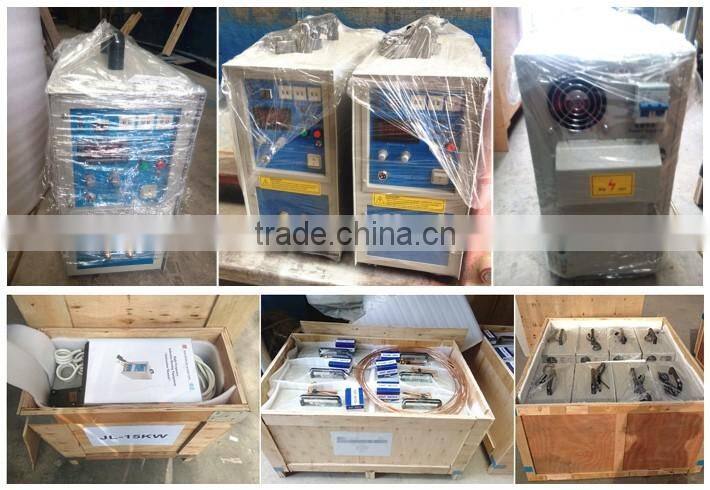

Packing List:
Item | Name of machine or parts | Specification | Amount |
1 | JL-15 Induction heating machine | - | 1 pc |
2 | Foot pedal | 3 core | 1 pc |
3 | Induction Coils | - | 2 sets |
4 | Instruction Manual | - | 1 pc |
5 | Product catalog | - | 2 sets |
Company Profile:
Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996,
which is engaged in R&D, production and sale of solid Induction heating machine
professionally.Several senior experts of induction heating equipment gathered
here, who initiate the induction heating machines with environmental protection
and highly effective energy conservation, positively and diligently.
Pre-sale service:
- 1. recommend the most suitable machine for customers, according to their requirements.
- 2. Inquiry and consulting support.
- 3. Sample testing support.
- 4. View our Factory.
In-sale service:
- 1. Strictly manufacture the machine, according to relevant technical standards.
- 2. Take run test, according to relevant equipment test run regulations.
- 3. Strictly check up the machine, before delivery
- 4. Delivery on time.
After-sale service:
- 1. 12 months warranty period
- 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
- 3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
- 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
- 5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
High Frequency Series:
Model | JL-5 | JL-15 | JL-25 | JL-30 | JL-40 | JL-50 | JL-60 | JL-80 | |||
Input power desire | Single phase 220V 50/60HZ | 3 phase 380V 50/60HZ | |||||||||
Oscillate power max | 5KW | 15KW | 25KW | 30KW | 40KW | 50KW | 60KW | 80KW | |||
Max input current | 20A | 37A | 24A | 38A | 48A | 65A | 80A | 105A | |||
Oscillate frequency | 100-250KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-80KHZ | |||
Cooling water desire | >0.2MPa 2-6L/Min | 0.3Mpa≥6L/MIN | |||||||||
Duty cycle | 80% 40°C | 80% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | |||
Net weight | 19kg | 21kg | 28kg | 25kg/23kg | 35kg/30kg | 45kg/30kg | 50kg/30kg | 80kg/85kg | |||
Cable length | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | |||
