Four Side moulder
- 100 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
- 3HP 12'' combination jointer planer machine with mobile base
- Heavy duty cast iron table 8\" x 83\" Helical Cutterhead Jointer with Digital Height Readout mobile base jointer
- 16/20 inches Thickness planer heavy duty cast iron woodworking surface planer industrial woodworking machine
- W0101 Woodworking Bench 12\" Planer Flat Knife Spiral Knife
- LIVTER 12\" Wood Jointer Woodworking Machine Woodworking Surface
- LIVTER W0301 12\" 300Mm Jointer Thicknesser Combination
Product Details
Condition: | New | Type: | Four Side Moulder | Place of Origin: | Shandong, China |
Brand Name: | JMD | Model Number: | LM-621 | Power(W): | 39.75kw |
Dimension(L*W*H): | 3961*1462*1776mm | Weight: | 3150kg | Certification: | CE ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

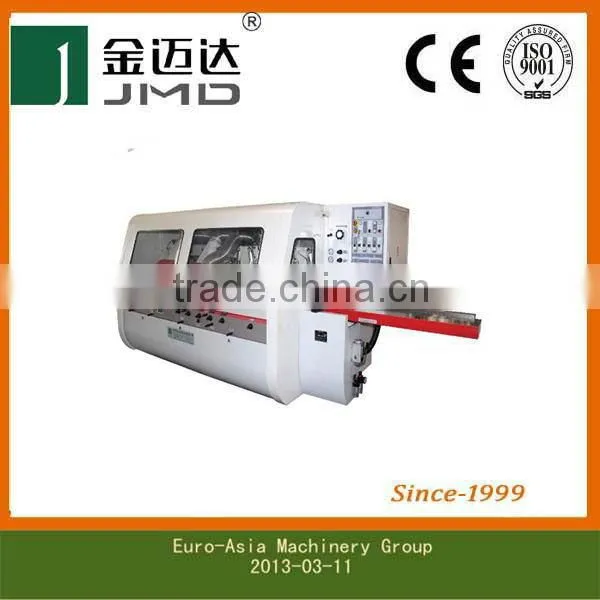

LM-621 wood door and window making machine
Jinan JMD Machinery Co., Ltd., is a hightech enterprise specializing in producing the window machine aluminum doors and windows making machine, aluminum window making machine, aluminium window frame making machine upvc window making machine and aluminum profile cutting machine. Our company is located in Jinan, China, and its production base is located in Xiao Liu Industrial Park, the High Tech Development Zone, Zouping, Shandong Province.
Our company covers an area of 25 mu (15 mu = 1 hectare), with 20 thousand square meters of processing plant, assembly plant, quality control center and warehousing workshop. The main business of our company is machinery processing. We have over one hundred units of lathes, milling machines, planers, grinding machines and other processing equipment.
Performance and Features
1.Use of non-polar feeding, the feeding speed of 7-28 M / min
2.each spindle driven by an independent motor, with strong cutting force.
3.spindle adjustment focus on front, easy to operate.
4.plating countertops, good wear resistance
5.Under the initiative rollers, improve feeding effect
6.Configure Chint electrical components, stability
7.Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise and play a security role
8.pneumatic pressure type feed wheel, adjust the clamping force can be segmented, is conducive to different thicknesses of wood smooth feeding
9.Short material. Configuration of auxiliary device, to promote effective smooth short material
Machine parameters :
Working width:25-210mm
Working thickness Working thickness Working thickness:8-140mm
Length of working table:1800mm
The feeding speed:7-28m/min
Spindle diameter:Φ40mm
Spindle speed:6000r/min
Air pressure:0.6MPa
2,Motor power
The first lower shaft:5.5kW
The first shaft:7.5kW
The right vertical axis:5.5kW
The left vertical axis:5.5kW
The second shaft:5.5kW
The second lower shaft:5.5kW
Lifting beams:0.75 kW
Feeding:4 kW
The total power:39.75 kW
3,Tool Diameter
The right vertical axis:Φ125-Φ180mm
The left vertical axis:Φ125-Φ180mm
The first lower shaft:Φ125mm
The first shaft:Φ125-Φ180mm
The second shaft:Φ125-Φ180mm
The second lower shaft:Φ125-Φ180mm
4,Remarks
Vacuum tube diameter:Φ140mm
Outside dimension (L*W*H):3961*1462*1776mm
Net weight:3150kg
wood door and window planer
