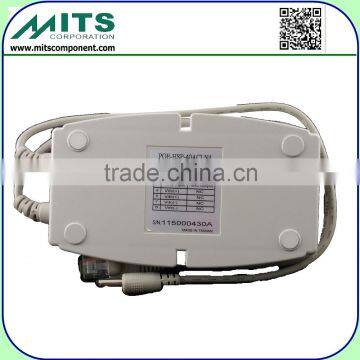

Help Center5.5/2.5mm 40W/24Vac Output High Power PoE Splitter
Related Products
-
25W/12Vdc Output High Power PoE SplitterUS$ 33 - 70MOQ: 10 Pieces -
5.5/2.5mm 25W/12Vdc Output High Power PoE SplitterUS$ 33 - 70MOQ: 10 Pieces
-
RJ45 Socket 12Vdc,rear Terminal 12Vdc Solar+PoE Battery ChargerUS$ 69 - 116MOQ: 10 Pieces
-
MITS 48V DC DC Input POE Injector for Vehicle, Railing Stock, and Marine NavigationUS$ 70 - 70MOQ: 1 Piece
-
100w Ultra High Power PoE Injector - PoE-UIJ Series, MITS Taiwan, AC Input, IEEE802.3at Standard, High EfficiencyNegotiableMOQ: 1 Unit
Part number: POE-HSP-40AC5N4
Description: 40W/24Vac output, 5.5/2.5mm DC Plug
Application
- IP Phone
- IP Camera
- Access Point
- Door Security
- Security CAM
- WiMAX BS/CPE
- Mini Notebook PC
- Network terminals which require high power feed.(IPC,POS....etc.)

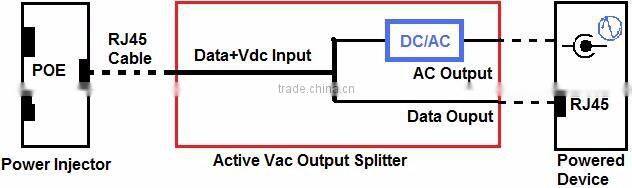

PSE feeds power via Spare pairs
|
RJ-45 Input (Data & Power) |
RJ-45 Output (Data Only) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ |
Data Receive |
Rx+ |
Data Receive |
2 |
Rx- |
Data Receive |
Rx- |
Data Receive |
3 |
Tx+ |
Data Transmit |
Tx+ |
Data Transmit |
4 |
Vin +/ - |
Feeding power(±) |
-Vdc_return(+) |
Not Connected |
5 |
Vin +/ - |
Feeding power(±) |
-Vdc_return(+) |
Not Connected |
6 |
Tx- |
Data Transmit |
Tx- |
Data Transmit |
7 |
Vin +/ - |
Feeding power(±) |
-V dc |
Not Connected |
8 |
Vin +/ - |
Feeding power(±) |
-V dc |
Not Connected |
PSE feeds power via Data pairs
|
RJ-45 Input (Data & Power) |
RJ-45 Output (Data Only) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ & Vin(±) |
Data Receive & Feeding power(±) |
Rx+ |
Data Receive |
2 |
Rx- & Vin(±) |
Data Receive & Feeding power(±) |
Rx- |
Data Receive |
3 |
Tx+ & Vin(±) |
Data Transmit & Feeding power(±) |
Tx+ |
Data Transmit |
4 |
NC |
Not Connected |
NC |
Not Connected |
5 |
NC |
Not Connected |
NC |
Not Connected |
6 |
Tx+ & Vin(±) |
Data Transmit & Feeding power(±) |
Tx+ |
Data Transmit |
7 |
NC |
Not Connected |
NC |
Not Connected |
8 |
NC |
Not Connected |
NC |
Not Connected |
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
Mechanical & Dimension
Plastic Case Material |
PC |
|
Plastic Case Finish |
Texture |
|
Plastic Case Color |
Gray |
|
Plastic Case Dimension |
125 x 75 x 38 (L x W x H) mm. |
|
DC/AC Out Power Plug |
Diameter |
2.1 / 5.5mm or 2.5 / 5.5mm |
Length |
12 +/- 0.5mm. 180℃ angle. |
|
Package
Number of unit in one Carton |
50 |
Weight of Carton Volume |
N.W.:15Kg. G.W.:16Kg. 1.3Cuft. |
Weight of Unit / Weight of Box |
175g / 210g |
Dimension of Box |
165 x 82.5 x 44 (L x W x H) mm |
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.
Accept small, trial orders, and costomised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
