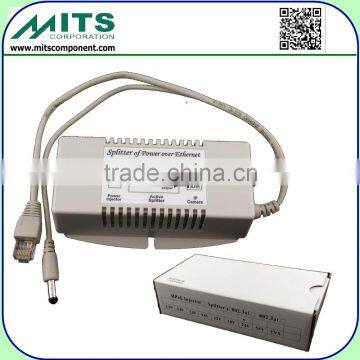

40W/24V, 2.1 / 5.5mm Gigabit High PoE Splitter

Name: 40W/24V, 2.1 / 5.5mm Gigabit High PoE Splitter
Brand: MITS
Price: USD $60 - 104 / Piece

FOB Price

USD $60 - $104 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port TPE

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Taiwan

Brand Name:

MITS

Model Number:

POE-GHS-40241D4

Product Description

Part number: POE-GHS-40241D4

Description: Gigabit, 40W/24V output, 2.1 / 5.5mm DC plug

Application

IP Phone
IP Camera
Access Point
Door Security
Security CAM
WiMAX BS/CPE
Mini Notebook PC
Network terminals which require high power feed. (IPC, POS…..etc.)

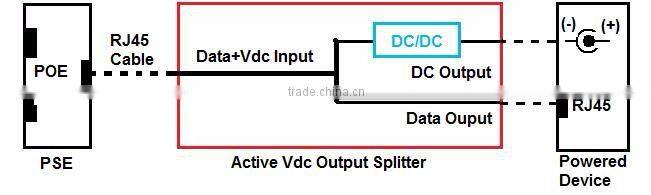

PSE feeds power via Spare pairs

	RJ-45 Input (Data & Power)		RJ-45 Input (Data & Power)
Pin	Symbol	Description	Symbol	Description
1	BI_DA+	Data Pair A+	BI_DA+	Data Pair A+
2	BI_DA-	Data Pair A-	BI_DA-	Data Pair A-
3	BI_DB+	Data Pair B+	BI_DB+	Data Pair B+
4	+Vdc + BI_DC+ p	power(+)+Data Pair C+	BI_DC+	Data
5	+Vdc + BI_DC-	power(+)+Data Pair C-	BI_DC-	Data
6	BI_DB-	Data Pair B-	BI_DB-	Data Pair B-
7	-Vdc + BI_DD+	power(-)+Data Pair D+	BI_DD+	Data Pair D+
8	-Vdc + BI_DD-	power(-)+Data Pair D-	BI_DD-	Data Pair D-

PSE feeds power via Data pairs

	RJ-45 Input (Data & Power)		RJ-45 Input (Data & Power)
Pin	Symbol	Description	Symbol	Description
1	-Vdc + BI_DA+	power(-)+Data Pair A+	BI_DA+	Data Pair A+
2	-Vdc + BI_DA-	power(-)+Data Pair A-	BI_DA-	Data Pair A-
3	+Vdc + BI_DB+	power(+)+Data Pair B+	BI_DB+	Data Pair B+
4	BI_DC+	Data Pair C+	BI_DC+	Data Pair C+
5	BI_DC-	Data Pair C-	BI_DC-	Data Pair C-
6	+Vdc + BI_DB-	power(+)+Data Pair B-	BI_DB-	Data Pair B-
7	BI_DD+	Data Pair D+	BI_DD+	Data Pair D+
8	BI_DD-	Data Pair D-	BI_DD-	Data Pair D-

>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>

Packaging & Shipping

Mechanical & Dimension Mechanical & Dimension

Plastic Case Material	PC
Plastic Case Finish	Texture
Plastic Case Color	Gray
Plastic Case Dimension	125 x 75 x 38 (L x W x H) mm.
DC/AC Out Power Plug	Diameter	2.1 / 5.5mm or 2.5 / 5.5mm
	Length	12 +/- 0.5mm. 180℃ angle
	Polarity	Inside (+) / Outside (-)

Package

Number of unit in one Carton	50
Weight of Carton Volume	N.W.:15Kg. G.W.:16Kg. 1.3Cuft.
Weight of Unit / Weight of Box	175g / 210g
Dimension of Box	165 x 82.5 x 44 (L x W x H) mm

We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.

Accept small, trial orders, and costomised orders too!

Our Services

Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
