Part number: POE-UIJ-HD56NN8
Description:

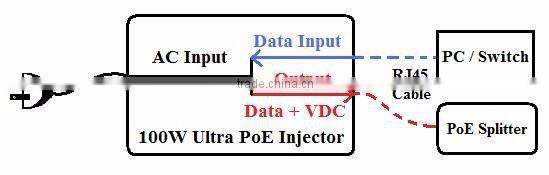

The PoE-UIJ-HD56NN8 is a 100W output of ultra Power over Ethernet (PoE) Injector, which eliminates the need for external power supply. The POE-UIJ-HD56NN8 provides safe and cost effective PoE solution for Ethernet end terminals. It can feed Powered Device (PD) that needs ultra power with maximum 100W power.
Application
- For PDs which need ultra power.
Connectors & Pin out (Giga-base)
|
RJ-45 Output (Data & Power) |
RJ-45 Input (Data Only) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
-Vdc + BI_DA+ |
Power (-) + Data Pair A+ |
BI_DA+ |
Data Pair A+ |
2 |
-Vdc + BI_DA- |
Power (-) + Data Pair A- |
BI_DA- |
Data Pair A- |
3 |
+Vdc + BI_DB+ |
Power (+) + Data Pair B+ |
BI_DB+ |
Data Pair B+ |
4 |
+Vdc + BI_DC+ |
Power (+) + Data Pair C+ |
BI_DC+ |
Data Pair C+ |
5 |
+Vdc + BI_DC- |
Power (+) + Data Pair C- |
BI_DC- |
Data Pair C- |
6 |
+Vdc + BI_DB- |
Power (+) + Data Pair B- |
BI_DB- |
Data Pair B- |
7 |
-Vdc + BI_DD+ |
Power (-) + Data Pair D+ |
BI_DD+ |
Data Pair D+ |
8 |
-Vdc + BI_DD- |
Power (-) + Data Pair D- |
BI_DD- |
Data Pair D- |
9 |
Shield |
Connector shielding |
Shield |
Connector shielding |
