MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone

MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-1
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-2
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-3
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-4
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-5
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone thumbnail-6
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-1
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-2
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-3
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-4

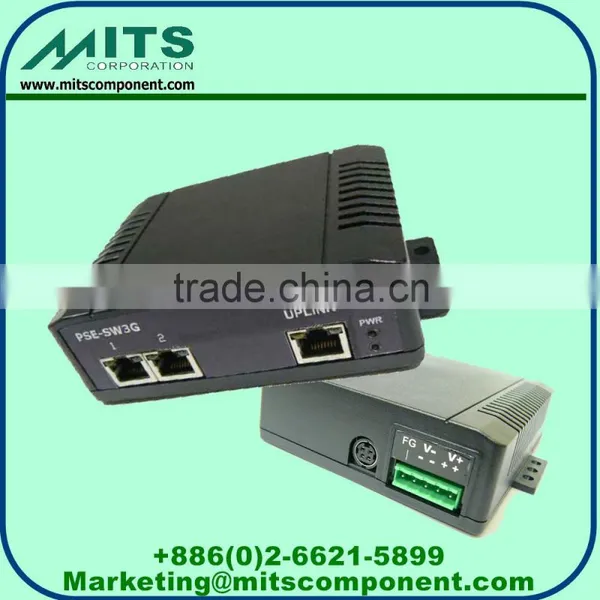

MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-5
MITS Gigabit 3 Port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone photo-6
US$ 135 - 135 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
MITS COMPONENT & SYSTEM CORP.
Payment & Shipping
Payment Methods:
Port of Shipment:
TPE
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100/1000Mbps
Function POE
Communication Mode Other, Full-Duplex & Half-Duplex
Certification IEEE
Switch Capacity N / A
Brand Name MITS
Model Number SW3G Series
Place of Origin Taiwan, China

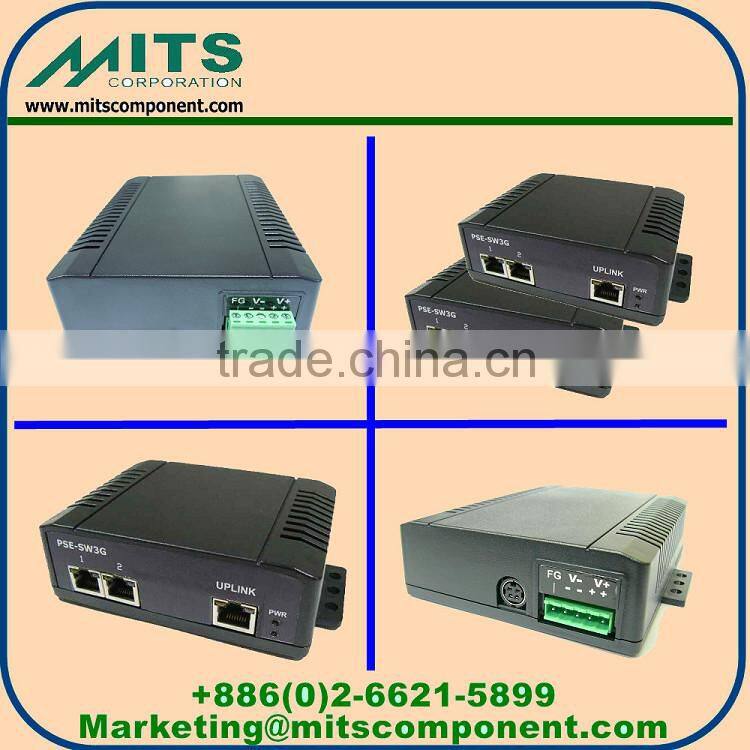

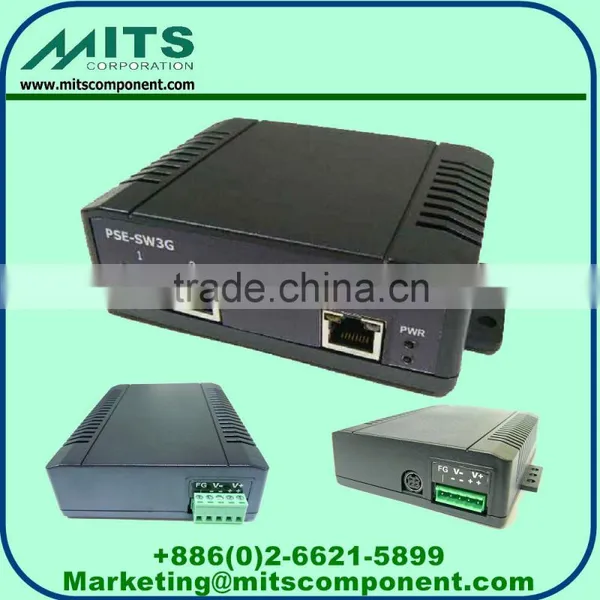

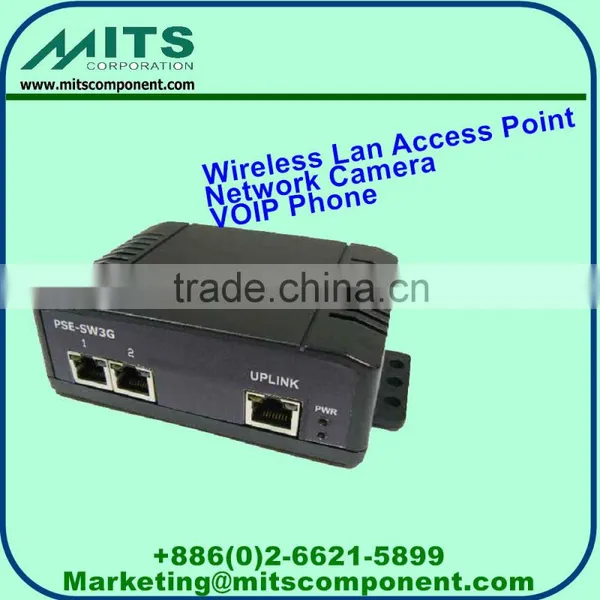

MITS Gigabit 3 port POE Switch, PoE Extender, IEEE802.3 - for Wireless Lan AP, Network Camera, & VOIP Phone



  • IEEE 802.3 at / af
  • 3 Ports (2 PSE & 1 PD)
  • Auto-crossover & auto-polarity
  • Transmission speed - 10/100/1000Mbps, Auto-negotiating

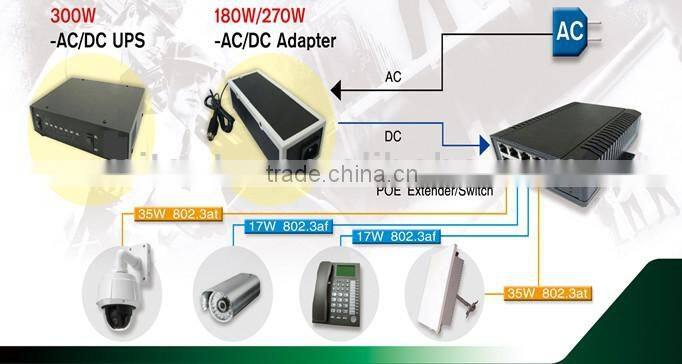

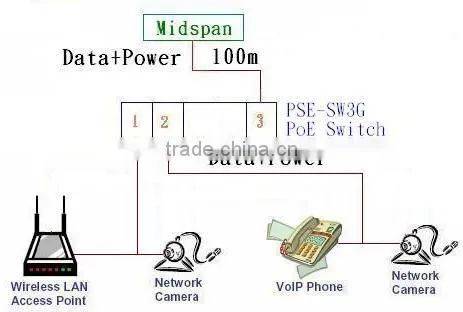

  • For wireless lan access point / network camera / VOIP phone

  >>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0">CONTACT US NOW>>>


Product Description





Specs



Standards

IEEE802.3/IEEE802.3u standards/IEEE802.3ab(10base-T/100base-TX/1000Base-T)

Ports

3 ports with PoE (2 PSE & 1PD), support auto-crossover & auto-polarity

Transmission speed

10/100/1000Mbps (10/100/1000Base-T) & Auto-negotiation

Switch Technology

store-and-forward

Protocols

CSMA/CD

Flow Control

IEEE802.3x (full-duplex), back pressure( half-duplex)

Data Transmission Rate

148800bps for 1000base-T, 148800 bps for 100base-T, 14880 bps for 10base-T

Address table

1K MAC address table self-learning

Connector

RJ-45

PoE port

Port 1&2 : PSE auto power management,

Pin assignment: Data pair A(1,2),data pair B(3,6),data pair C plus, V+(4,5),data pair D plus V-(7,8)

Port 3 :  4 pairs PD (PSE-SW3G44DN)

Maximum PoE Power

Port 1&2: IEEE802.3af – 16.8W , IEEE802.3at – 35W , Current limited – 2A

Port 3: 90W (802.3at 2 event classification)

PSE disconnect mode

DC disconnect

PoE auto detection

IEEE802.3af & IEEE802.3at (2 event classification signaling)

PoE protection

Over -temp.-over current over/ under voltage)

LEDS

*Link/Activity (Green ON/ Green Blinking @1000Mbps,Yellow/Yellow Blinking @10M/100Mbps)

*PoE (Yellow) port 1&2 ON - PD detect

*Port 3 ON – 4 pair power, Blinking-2 pair power

*POWER Green-normal, Red-alarm

Power Input

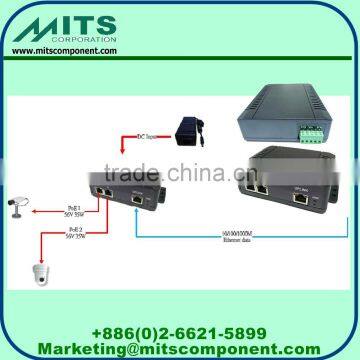

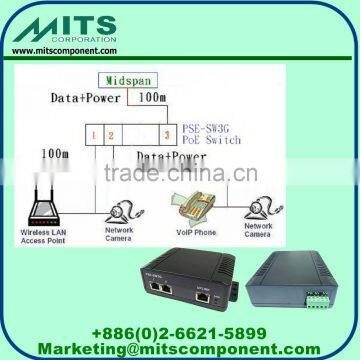

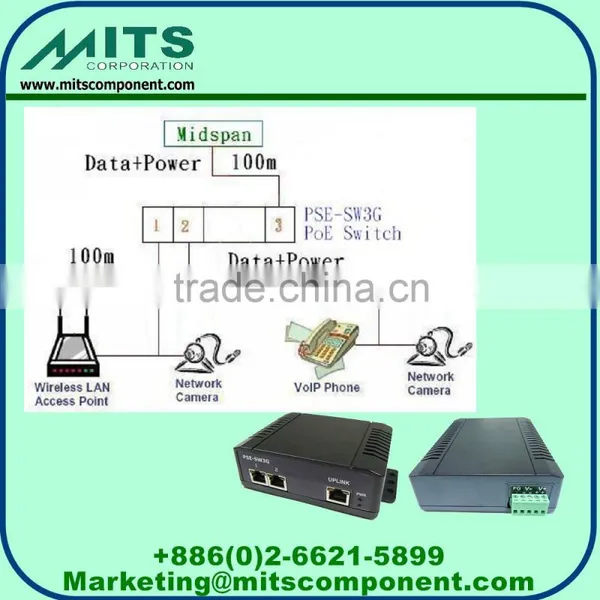

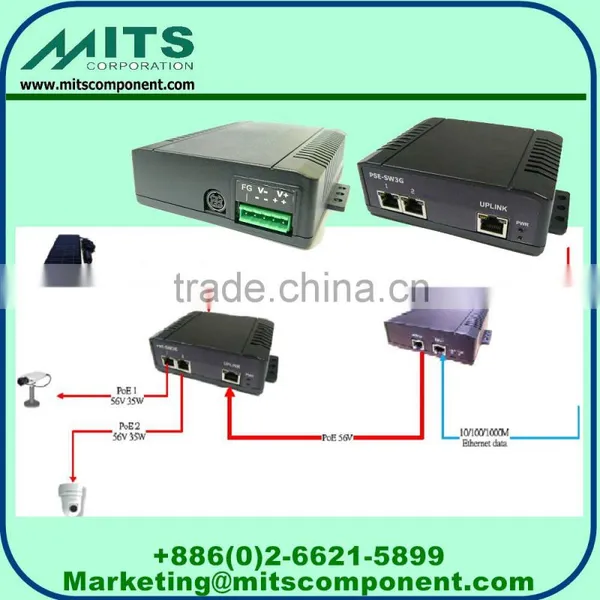

Port 3 from network switch or midspan, or option DC power supply

Power Consumption

2.5W without PD leading

Power Efficiency

85% at full load (@48V Typical)

Operating Temp.

-20°C~ +70°C

Operating humidity

90% relative humidity, non- condensing

Storage Temp.

-40°C~+85°C

Dimension

40 (H)*116 (W)*90 (D) mm





>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0">CONTACT US NOW>>>





Our Services

Please note:  All of our product's delivery term is: Ex-work Taiwan

If there is any product information needed, please contact us or consult online





Company Information



MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.

Any kind of customising product projects are welcome. Please feel free to contact us for product details.
