Double Section FY-DWS - Wall Mounted Led Screen Cabinet
US$ 30 - 60
MOQ: 20 Units
Key Specifications
Get Latest Price
Products Status:
Used
Cabinet Standard:
19'' standard installation
Material:
SPCC cold rolled steel, High quality SPCC cold roll steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Section FY-DWS - Wall Mounted Plate RacksUS$ 30 - 60MOQ: 20 Units -
Double Section FY-DWS - Wall Mounted Server RackUS$ 30 - 60MOQ: 20 Units
-
Double Section FY-DWS - Wall Mount Switch RackUS$ 30 - 60MOQ: 20 Units
-
Double Section FY-DWS - Wall Mounted Coat Rack With ShelfUS$ 30 - 60MOQ: 20 Units
-
Double Section FY-DWS - Wall Mounted Metal Spice RackUS$ 30 - 60MOQ: 20 Units
Products Status
Used
Cabinet Standard
19'' standard installation
Material
SPCC cold rolled steel, High quality SPCC cold roll steel
Size
600W*600*9U
Place of Origin
Guangdong, China
Brand Name
FU YUAN
Model Number
FY-DWS
Double section FY-DWS wall mounted led screen cabinet
Features & Specification:
| 1.Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standard, compatible with 19 inch international inner installation standard, metric system and ETSI standard. | ||||
| 2.The frame is designed as assembly structure. The whole configuration is stable, static loading is more than 60Kgs. | ||||
| 3.Wall mounted design, quick installation and easy maintenance. | ||||
| 4. Side panels adopt quick open latches design, which makes the disassembly & assembly process conveniently. | ||||
| 5. Flat packing and assembled packing are available, providing good solution to save your transportation costs. | ||||
| 6. Axial flow Fan unit is optional to fulfill active cooling . IP degree : IP 20. | ||||
| 7.The inner installation depth is adjustable (take 20MM as unit); the height of the capacity is adjustable (take 1U as unit). | ||||
| 8.International popular 5mm thickness of smoky gray colored toughened glass front door with perforated arched metal edge on both sides. The front door is equipped with MS818 handle lock, steel rear door with small round lock. | ||||
| 9.Customizations based on customer requirements are welcomed; various kinds of specifications and structure adjustment are available. | ||||
| Surface treatment: | Degreasing, Pickling, Phosphating, Cleaning, Drying, Powder coating | |||
| Material: | High quality SPCC (cold rolled steel) | |||
| Thickness: | Mounting profile: 2.0mm, others: 1.2mm to 1.5mm | |||
| Surface color (optional): | RAL 9004 (Black) or RAL 7035(Grey) | |||

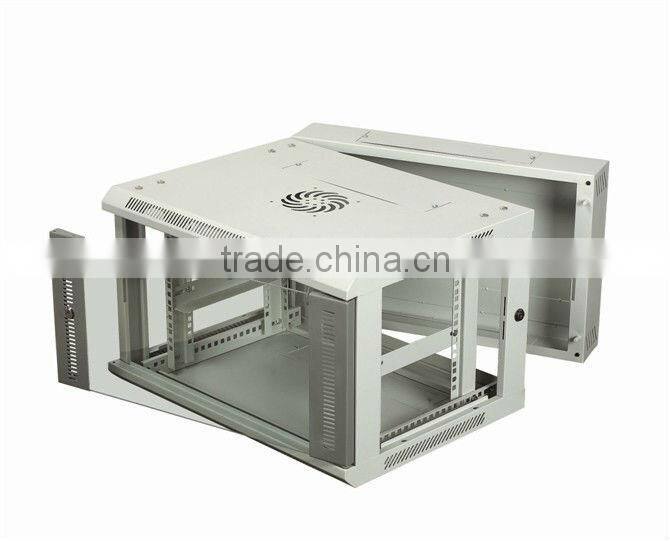

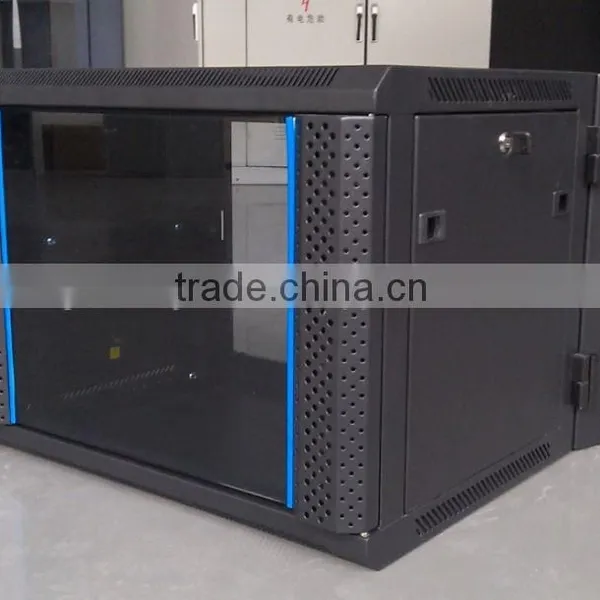

Product images:
Standard accessories:
Packing detail:
Terms:
1. MOQ:20 units
2. Port of loading; Shenzhen, China.
3. Packing: Flat packing or assembled packing
4. Delivery: 20 working days after 30% deposit receipt
5. Payment: T/T with 30% deposit, 70% balance should paid before Delivery
Why choose us?
1. 100% manufacturer selling
2. Wholesale/ Customize sample/OEM are available
3. Competitive price
4. High product quality, strict quality control
5. Fast Delivery: 20 working days after receipt of 30% deposit
6. Best service !
Related products:
Our facilities:
Certificates:
About us:
Brief Introduction to FuYuan Electric Machinery Equipment CO.Ltd.
- Established in 2002
- Specialize in manufacture all kinds of international standard 19 inch inner installation network and server cabinets, Electrical and outdoor cabinets, Fibers products and so on.
- Offer OEM and ODM service for global customers.
- Occupies an area of 30,000 square meters, there are more than 300 workers.
- With advanced facilities of cutting, punching, folding, welding, painting and testing machines.
- Passed ISO 9001, ISO 14001 and GB/T28001 systems
- Strong designing and sales team, Designing team can design several kinds of new styles every season and a lot of hot sell styles for our customers every year
- Client base include Emerson, Ericsson, Foxconn, ZTE, SUNSEA etc famous enterprises
- Warmly welcome customers from home and abroad to establish cooperation and create a bright future with us together.
