Product Details
Products Status: | Used | Cabinet Standard: | 19'' standard installation | Material: | SPCC cold rolled steel, High quality SPCC cold roll steel |
Size: | 600W*600*9U | Place of Origin: | Guangdong, China | Brand Name: | FU YUAN |
Model Number: | FY-DWS |
Product Description

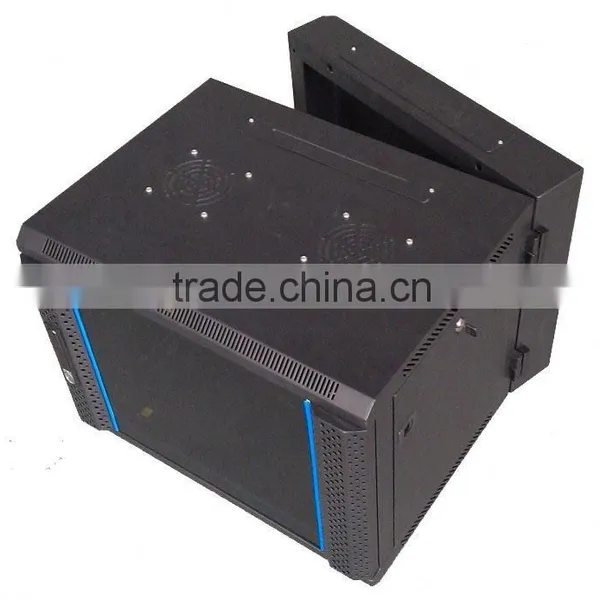

Double section FY-DWS wall mounted plate racks
Features & Specification:
1.Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standard, compatible with 19 inch international inner installation standard, metric system and ETSI standard. | ||||
2.The frame is designed as assembly structure. The whole configuration is stable, static loading is more than 60Kgs. | ||||
3.Wall mounted design, quick installation and easy maintenance. | ||||
4. Side panels adopt quick open latches design, which makes the disassembly & assembly process conveniently. | ||||
5. Flat packing and assembled packing are available, providing good solution to save your transportation costs. | ||||
6. Axial flow Fan unit is optional to fulfill active cooling . IP degree : IP 20. | ||||
7.The inner installation depth is adjustable (take 20MM as unit); the height of the capacity is adjustable (take 1U as unit). | ||||
8.International popular 5mm thickness of smoky gray colored toughened glass front door with perforated arched metal edge on both sides. The front door is equipped with MS818 handle lock, steel rear door with small round lock. | ||||
9.Customizations based on customer requirements are welcomed; various kinds of specifications and structure adjustment are available. | ||||
Surface treatment: | Degreasing, Pickling, Phosphating, Cleaning, Drying, Powder coating | |||
Material: | High quality SPCC (cold rolled steel) | |||
Thickness: | Mounting profile: 2.0mm, others: 1.2mm to 1.5mm | |||
Surface color (optional): | RAL 9004 (Black) or RAL 7035(Grey) |
Product images:
Standard accessories:
Packing detail:
Terms:
1. MOQ:20 units
2. Port of loading; Shenzhen, China.
3. Packing: Flat packing or assembled packing
4. Delivery: 20 working days after 30% deposit receipt
5. Payment: T/T with 30% deposit, 70% balance should paid before Delivery
