Professional Service Water Irrigation Agriculture Pump

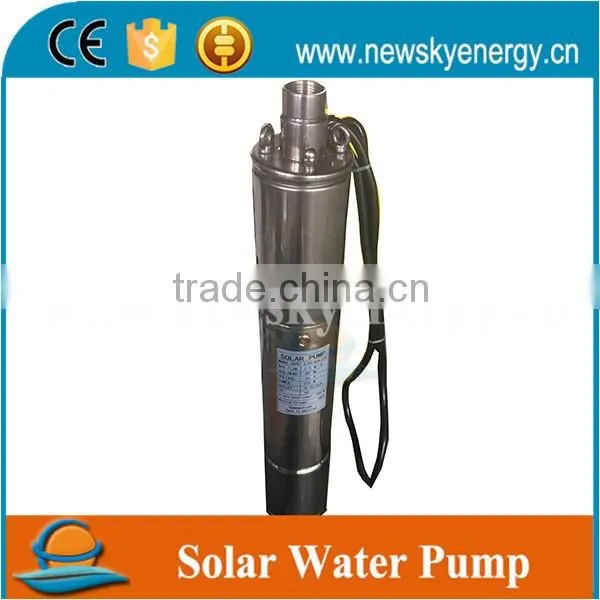

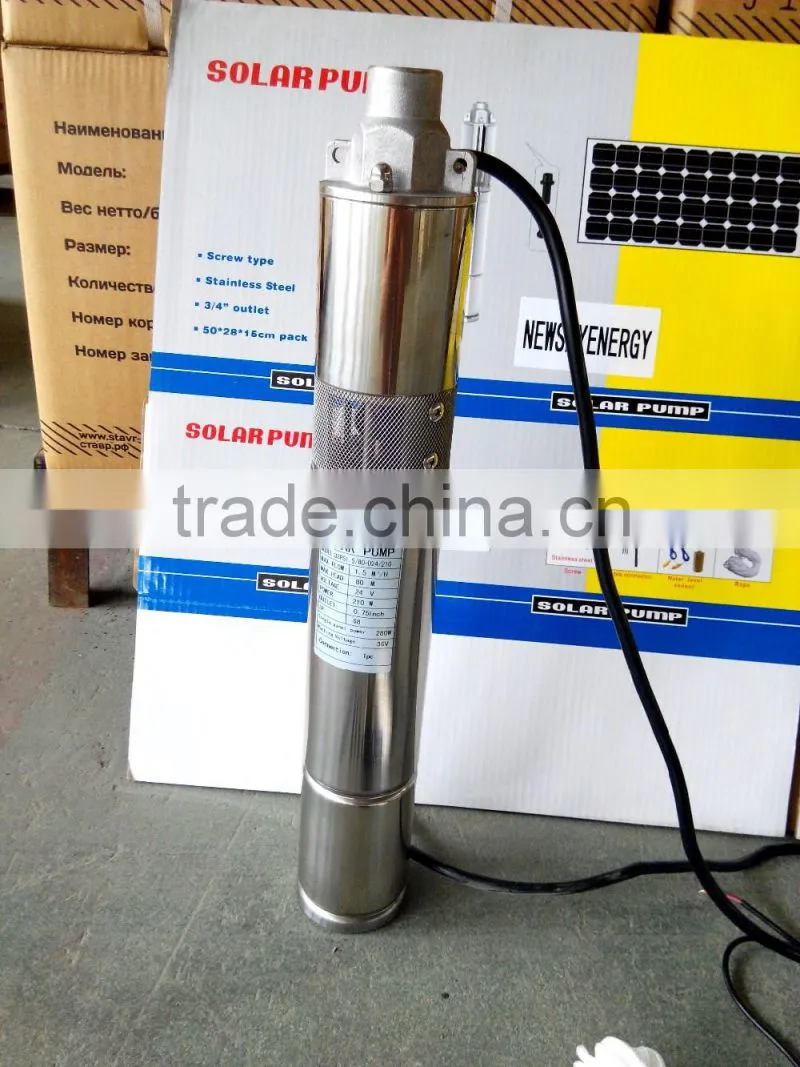

4SPSC DC Solar Water Pump
1. Submersible Water Pump
2.Irrigration Submersible
3.Noiseless
4.Non-pollution
5.CE and ROHS
Feature:

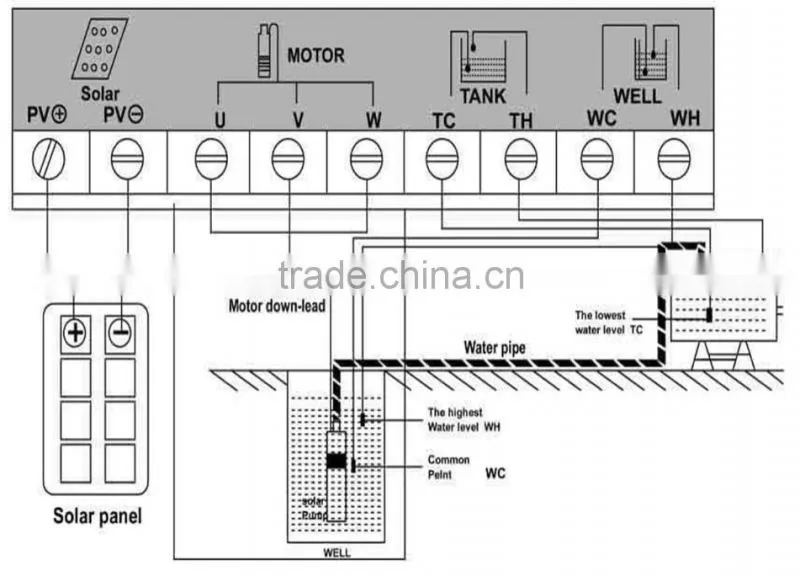

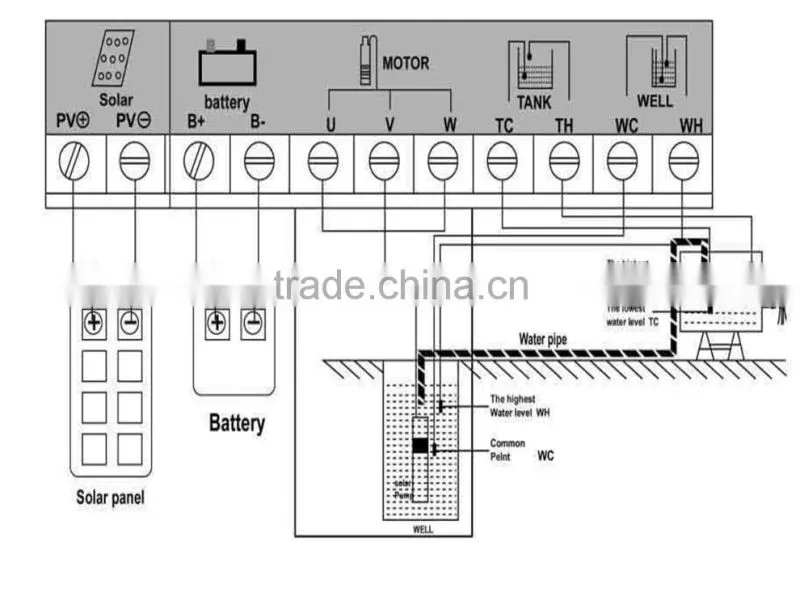

1. Compact structure, high-lift, noiseless, non-pollution, complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, overload, waterless , automatic recovery ,controlling water height as demand.
2. Easy installation, maintenance-free, safe and reliable.
Water depth :1-120m ,Max flow: 18m³/h.

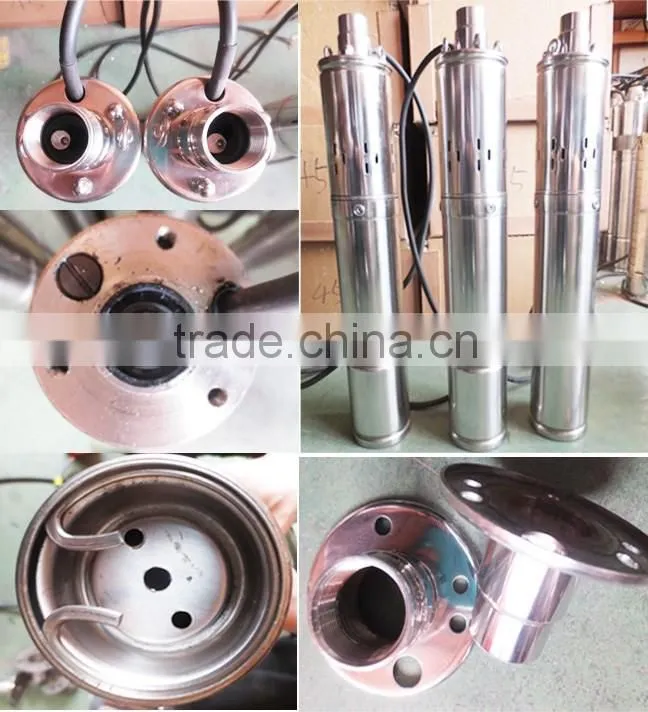

3. Adopt stainless steel casing, shaft core, coupling water entry base and pump body (or copper alloy water
entry base and pump body) to avoid rust or corrosion, stainless steel impeller and stainless steel blower
inlet casing. New “floating style” structure of impeller avoids axial pressure to motor. with combination
of motor and controller, the Max efficiency is over 85%,raise 25% than traditional AC pump.
4. Material: 1)stainless steel casing, shaft core, coupling and pump body, copper alloy connecting base, stainless steel impeller
and stainless steel inlet blower inlet casing. 2) Water immersion style stainless steel submersible motor, graphite
bearings.
Application:
Water irrigation, high efficiency of increasing oxygen on aquaculture, pumping water from
deep well, gardening, fountain etc.
Working condition:
ØNon-corrosive water, the volume ratio of sand content no more than 3‰ particle size less than 1mm.
ØMax medium temperature up to +40℃, PH value remain 5-10.
ØWork close to the rated head and must be immersed in water
| Model | Impeller | voltage (V) | Power (W) | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Outer Diameter (MM) | Weight (KG) |
| 4SPS3/60-D36/500 | Screw | 36-64 | 300-700 | 3 | 60 | 1" | 100*480 | 10 |
| 4SPS3.6/80-D48/750 | Screw | 48-86 | 450-1000 | 3.6 | 80 | 1" | 100*480 | 10.5 |
| 4SPSC5.0/28-D24/250 | Centrifugal (Stainless steel) | 24-43 | 120-360 | 5 | 28 | 1.25" | 100*540 | 12 |
| 4SPSC5.5/38-D36/400 | Centrifugal (Stainless steel) | 24-43 | 200-500 | 5.5 | 38 | 1.25" | 100*650 | 12.5 |
| 4SPSC5.5/58-D48/750 | Centrifugal (Stainless steel) | 48-86 | 450-900 | 5.5 | 58 | 1.25" | 100*680 | 13.5 |
| 4SPSC6.0/72-D72/1000 | Centrifugal (Stainless steel) | 48-86 | 600-1200 | 6 | 72 | 1.25" | 100*740 | 15.5 |
| 4SPSC6.5/98-D72/1300 | Centrifugal (Stainless steel) | 72-129 | 800-1500 | 6.5 | 98 | 1.25" | 100*880 | 16.5 |
| 4SPSC10/30-D48/750 | Centrifugal (Stainless steel) | 48-86 | 450-900 | 10 | 30 | 1.5" | 100*540 | 13.5 |
| 4SPSC10/44-D72/1000 | Centrifugal (Stainless steel) | 48-86 | 600-1200 | 10 | 44 | 1.5" | 100*650 | 15 |
| 4SPSC10/57-D72/1300 | Centrifugal (Stainless steel) | 72-129 | 800-1500 | 10 | 57 | 1.5" | 100*680 | 15.5 |
| 4SPSC15/21-D72/1000 | Centrifugal (Stainless steel) | 48-86 | 600-1200 | 15 | 21 | 2" | 100*540 | 13.5 |
| 4SPSC15/28-D72/1300 | Centrifugal (Stainless steel) | 72-129 | 800-1500 | 15 | 28 | 2" | 100*620 | 14 |
--------------------Why Choose us?------------------
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all you questions in professional and fluent English.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4.Special discount and protection of sales area provided to your distributor.
NEW SKY ENERGY GROUP LIMITED is a an energy-saving technology pioneer company, engaged in develop and apply wind turbine,solar lighting sytem, solar cooling system, and solar energy freezer fridge refrigerator.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind & solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of "credit,innovation,hard working and social responsibility"
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
