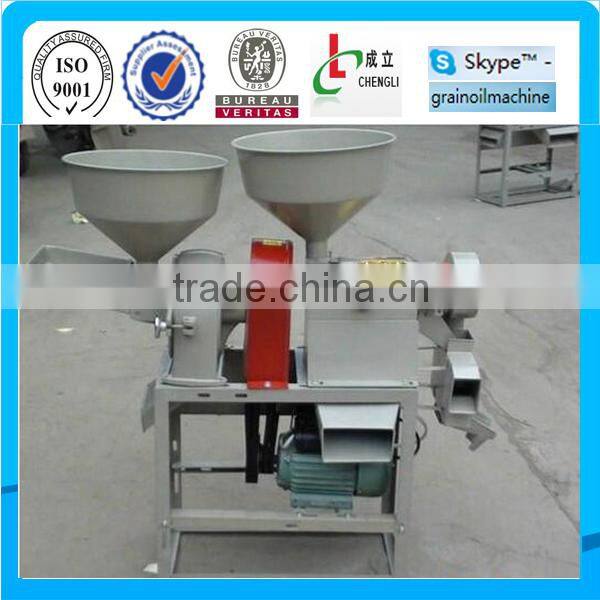

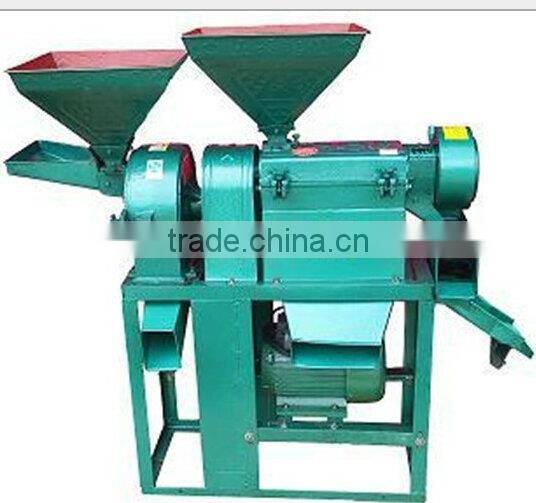

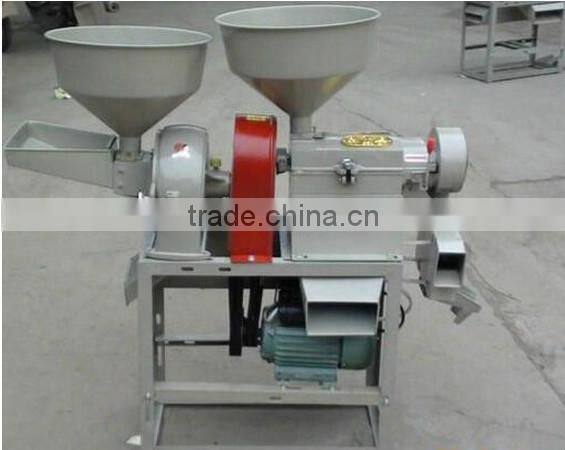

Combined of rice milling and grain crusher machine
combined of rice milling and grain crusher machine

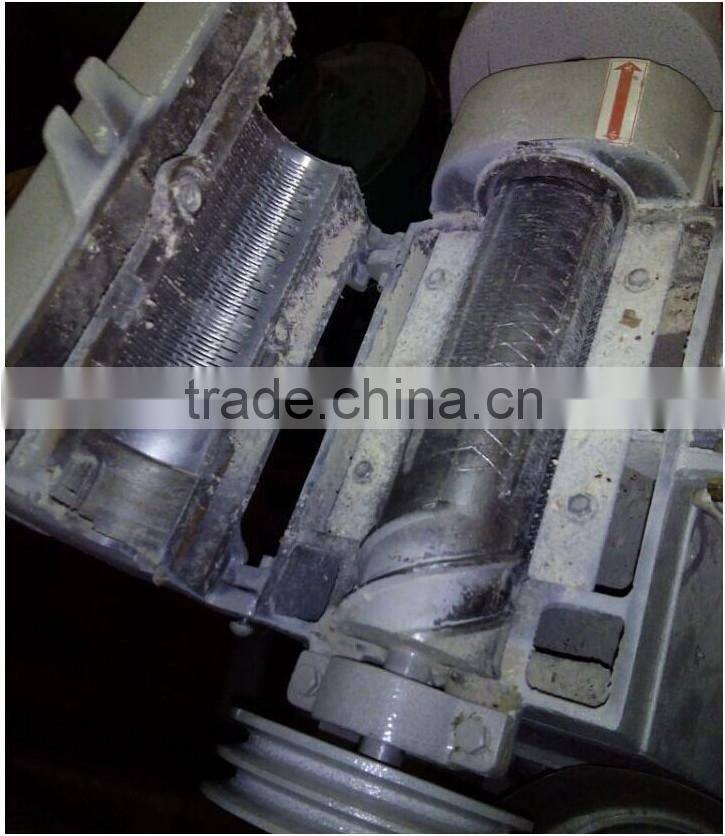

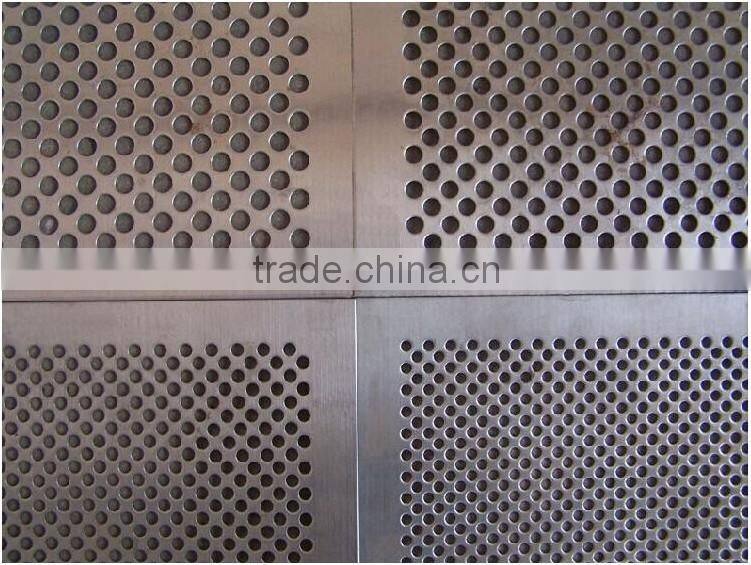

This machine is dominated by four major rice mill, grinder, motor, chassis and other components, mainly by meter cover, the seat base, rice rolls, rice sieve, rice knife, into the hopper, slide screen, pulley adjusting means components. Crusher mainly consists of feed hopper, mill housing, a hopper and other components.
The machine milling part-time can be processed into a rice paddy, and complete separation of rice, bran, broken rice. Section can be used to crush crushed rice, maize, sorghum, beans, potatoes, stem class and beating. But is moisture and trash content work piece will directly affect grain quality and effectiveness of the machine, load, and for other purposes will result contrary to the intended use of the machine. This machine is used to grind the rice, shelling rice husk, and at the same time to separate the husk and rice.
This rice milling and grain crusher machine can do husking and whitening at the same time. Can need one machine can finish the process of paddy to rice. And at the same time can make the rice, cavings, broken rice aparted.
It also has crusher machine ,can used to crush the paddy, corn , beans, tomatoes and so on ,also can beating .
This series rice milling machine is the one with high quality and newest design, high product speed and Energy saving.
Features of
combined of rice milling and grain crusher machine
1. Can remove paddy husk, whitening rice , crush rice husk at one time
2. It is easy to operate with less power consumption and high productivity.
3. with Iron roller that the rice has low breakage
4. Low temperature when working
Work principle for Combined of rice milling and grain crusher machine
combined of rice milling and grain crusher machine
This machine consists of milling and the chaff two working systems Process: cleaning, coarse grinding and fine grinding. When the boot grind grain, the rice from the hopper into the flow, roller, rice knives, rice sieve composed of milled white room, by the mechanical The role of cutting edge grinding to complete the processing of rice milling. The effect of fan getting the clean and dust free rice bran , the broken rice meters of slip from the screen separator to separate into the broken shed after collection device, which enables the isolation of rice and rice bran crushed into dust.
Name |
Combined of rice milling and grain crusher machine |
Model |
CL-6N100 |
Power: |
2.2kw |
speed of main shaft |
1780r/min |
productivity |
rice≥220Kg/h corn maize≥150Kg/h |
voltage |
220v,single phase;380V, three phase |
dimension |
750*340*580(mm) |
weight |
65kg |
Usages |
Mainly used for the rural families |
