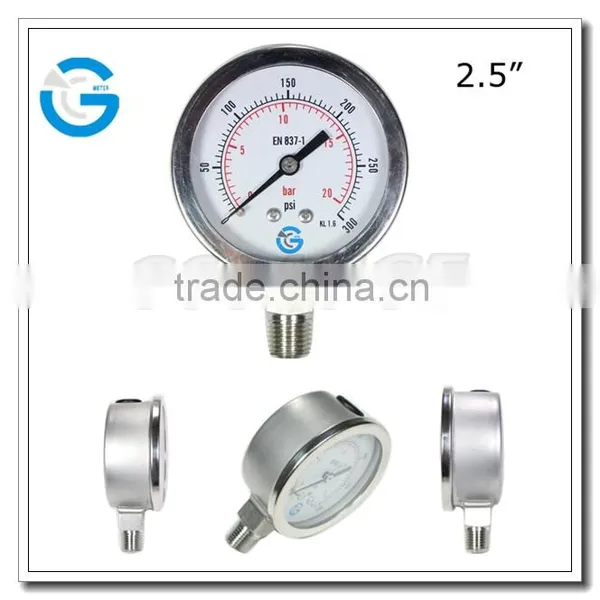

High Quality 2.5 Inch All Stainless Steel Bottom Entry Industrial Pressure Meter

US$ 3.5 - 16 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

industrial pressure meter

Ningbo GC Bob Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GC

Model Number industrial pressure meter

High quality 2.5 inch all stainless steel bottom entry industrial pressure meter

All stainless steel pressure gauge

Crimped ring

Liquid fillable

Highly accurate

Outdoor and severe ambient and process conditions

Use where harmful vibration and pulsation are present

Hydraulic equipment, pressure washers, oil field equipment, pumps,

compressors and process systems

Dial	1.5″,2″,2.5″,4″(40mm,50mm,63mm,100mm)
Scale ranges	-1—1000bar
Accuracy class	1.5″(40mm),2(50mm):±2.5% of full scale 2.5″(63mm),4″(100mm): ±1.5% of full scale
Process connection	1⁄8″,1⁄4″NPT or 1/2″NPT standard with restricted orifice
Bourdon tube	316LSS,drawn seamless
Wetted parts/socket	Stainless steel 304 or 316
Movement	316SS
Pointer	Aluminum,micrometer adjustable
Welding	TIG,Laser Welding
Case material	stainless steel 304,DIN bayonet
Window(lens)	tempered glass,safety glass
Fill	glycerin
IP class	IP 65
