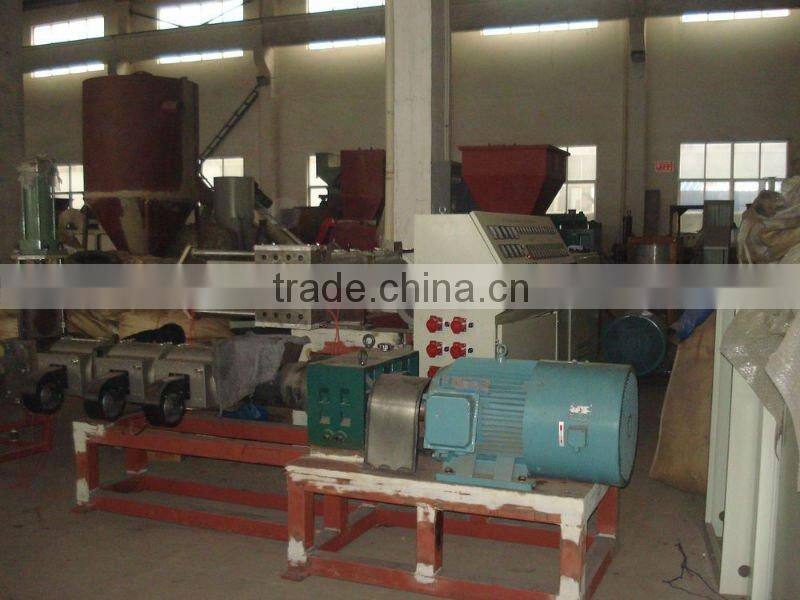

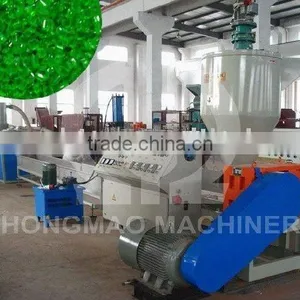

double-ranks recycling & granulating system

wooden case or moisture proof package

Specifications

PE PP pelletizer
1.output: 80-1000kg/h
2.stable performance
3.CE, ISO9001

double-ranks recycling &granulating system Technical Parameters:

A. Belt Conveyer

1. Motor power:  1.5KW

2. Length of belt:       5000mm

3. Width of belt:        600mm

4. Material of belt:   Industry Rubber

5. Mobile Truckle installed in the bottom, so it is flexible and convenient.

6.Detecting width:600mm

7.Detecting height:420mm

8.Minimum sensibility:2-3mm

9.Warning method: alarm

10. Detected material: All the metals

B. Compact Feeder with Cutter

1. Motor power:                   55KW

2. Rotary speed of cutter:           750r/min

3. Rotary cutting knife quantity:  4PCS, 2 Groups.

4. Stationary knife quantity:          16 PCS

5. Knife material:                  Cr12MoV

6. Temperature point of inner barrel: One thermocouple, adopting PID temperature-controlling to measure the temperature.

7. Equipped with clean door with good airproof, so it is easy to clear the material in the barrel, and to check the status in the barrel.

8. There is exhaust unit on top of barrel, it can exclude the left vapor exists in the raw material.

C. SJ135/32 Extruder

1. Extruder Screw diameter: φ135mm, Material: 38CrMoAlA with nitrogen treatment, it can increase the rigidness and using date.

2. L/D Ratio: 32: 1

3. Motor power: 110KW, use inverter to adjust the speed.

4. Connect way of motor and reducer: Coupling axis machine.

5. Use extruder with special gear tooth surface reducer, use high strength alloy steel to make gear wheel and axis, gear wheels through crafts of quenching, cementite and abrasion.

6. Instrument: Adopting PID temperature-controlling to measure the temperature, use Siemens contactor.

7. Heating system:Use ceramic heater, outer equipped with stainless steel cover, and blower cooling.

8. Heater power: 6 Zones, 8KW/Zone, total 48KW; 6 Zones cooler, 0.24KW/Zone, Total 1.44KW.

9. Mould heating: 2 Zones ×4Kw, total 8KW.

10. Mesh-exchanger: Adoptnon-stop hydraulic controlling machine, oil pump power is 3KW.

11. Vent amount:   2 Pieces (to exhaust gas)

12. Vacuum pump:      3KW

13. Extruder and motor alarming with high electricity protecting sound and light.

D. Granulating die face

1. Process material:   40Cr

2. Die inner treatment:  Cr

3. Material-discharge hole quantity:   36 holes

4. Diameter of Material-discharge hole:  3mm

E. Water-ring Cutter

1. Motor Power:1.5KW,use the inverter to adjust the speed.

2. Cutting knife amount: 3 sets

3. water-cycle pump power: 3KW

F. Vibrosieve

1. Vibrating motor power:  0.4KW

2. Adopt stainless steel to make hopper and screen

3. Screen length:           1500mm

4. Screen width:            550mm

5. Water-storage tank cubage:  800L

G. Material-convey System

1. Blower power:            3KW

2. Blower pipe diameter:   φ127mm

3. Adopt stainless steel to make Wind convey pipeline.

H. Silo

1.Silo cubage:  1000L

2. Adopt stainless steel to make the silo.

I. Electric Control Box

 Contactors adopt “Siemens”. System contral by  “Siemens” PLC and screen touch.

J. Production Capacity:  350-400Kg/h.(for PP PE film)





Description:



This PE PP pelletizer is used for PE PP film recycling and reproducing.



Application:



PE PP pelletizer is mainly used for processing of waste plastic film(industrial packaging film, agricultural film, greenhouse film, beer package, bag, etc.), woven bags, agricultural convenience bag, basin, barrels and bottles, furniture, supplies, etc



Features:



1. Simple process



2. automatic temperature control,



3. low power consumption



4. non-pollution



5.high output











Why are you choose us ?



1.We can bring you High-quality equipment and vey competitive market price and bring you more profits .



2.Our factory have more than 10 years of manufacture industry machine experience, we can solve various problems in the work, to improve the machine efficiency for you .Our engineers can also design the machine as the customers requirements .



3.We also has a good supply system, can provide you one-stop service with the pre-sale, sales and after sale service .Its save your purchasing cost and maintenance cost .



We promise :



1. we will provide all the machines for the complete production according to customer's requirements.



2. we will provide complete service for factory layout and other information to help customer to build the factory.



3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.



4. Except one year quality guarantee, we will provide after-sell service for all the life.



5. for long-term cooperation, we always provide good quality, good price and good service to customer
