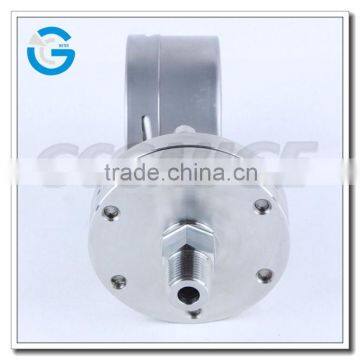

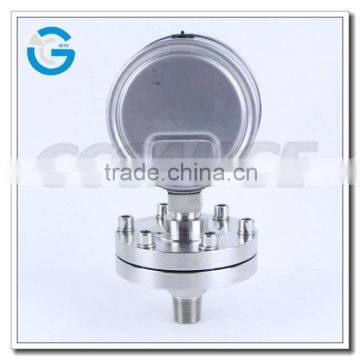

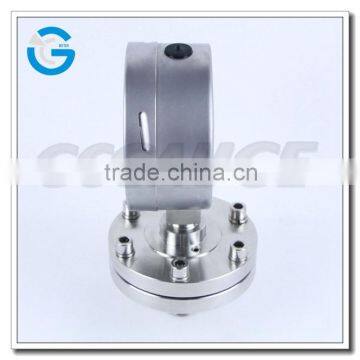

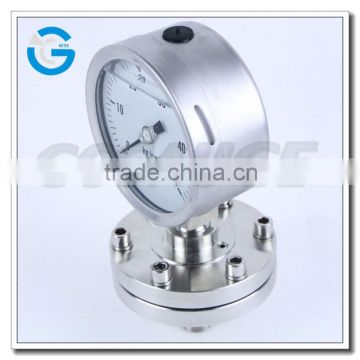

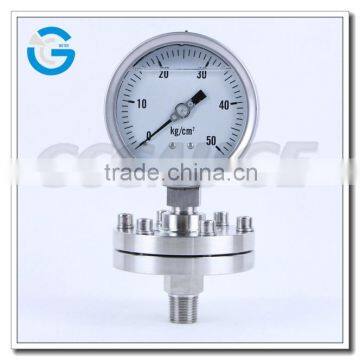

High quality 4 inch all stainless steel diaphragm type pressure manometer
Range: FMH 0-10/0-40MPa
FMM 0-1/0-10MPa
FMS -1-0/0-0.6MPa
Accuracy: (add to instrument accuracy) ± 0.5% for
direct mounting;
± 1% for dampeners, over pressure
protector, distance transmission and so on.
Working Temperature: -45-+150℃
Diaphragm material: Hastelloy B, Hastelloy C, Tantalum,Titanium, Monel 316L PTEE coated
Wetted material:321, 304, 316L(or+PTFE)
Connection: Thread M20*1.5,1/2”NPT other on request
Filling liquid: As different media, optional fluorocarbon oil, -60-+120℃, Food oil, -20-+200℃
Diaphragm gauges are universally used in petrochemical, alkali, chemical fiber, pharmaceutical, metallurgical, and food industries.

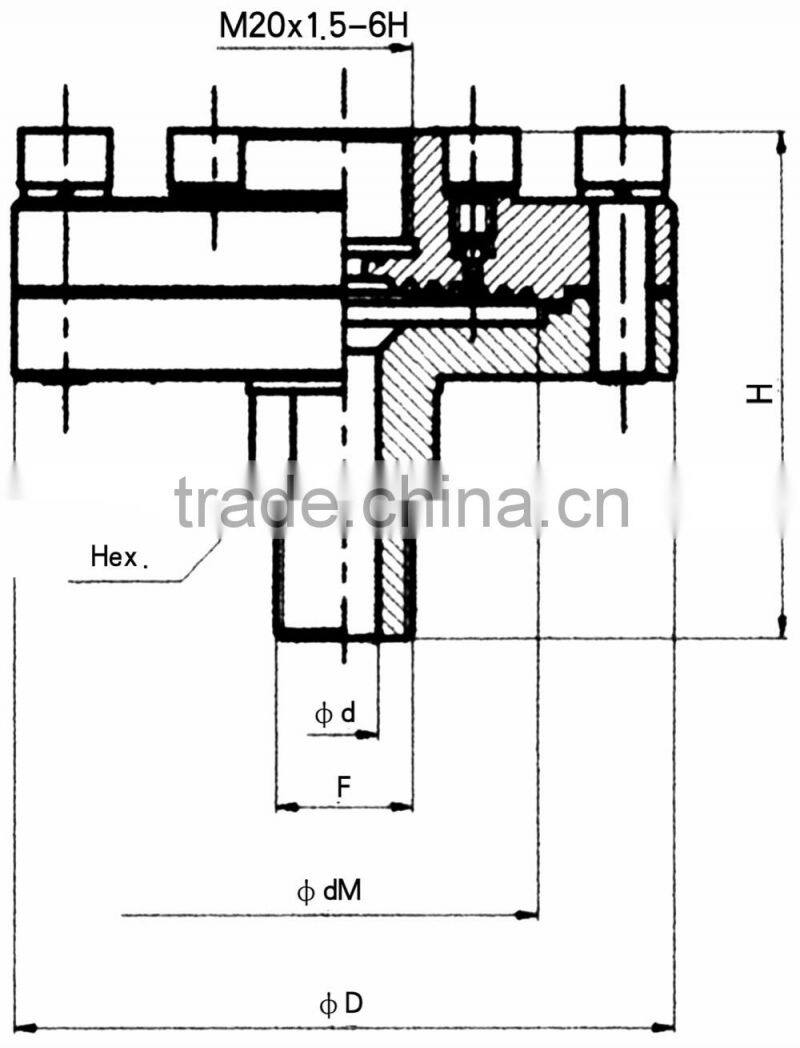

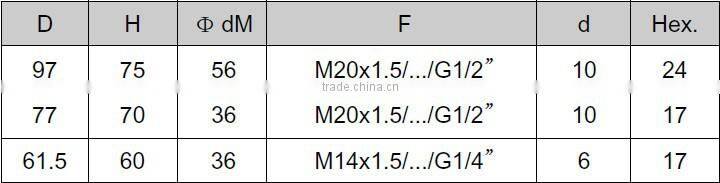

DIMENSIONS (mm)
φ dM=56,range:-0.1~0 / 0~4MPa
φ dM=36,range:0~1.6 / 0~40MPa
