Home > Industrial Equipment & Components > Compressor > Compressor Unit > SGM08 Intelligent Control System 8bar 7.5KW Oil Free Screw Air Compressor

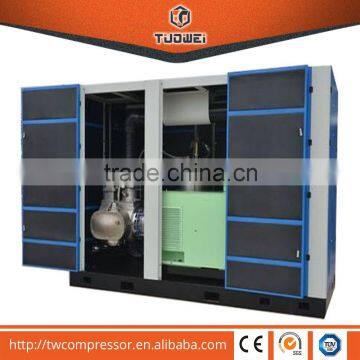

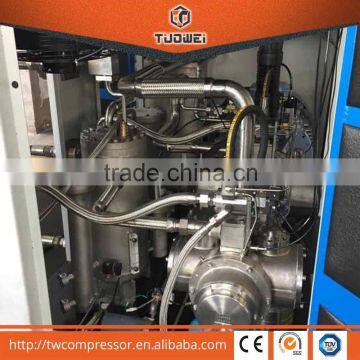

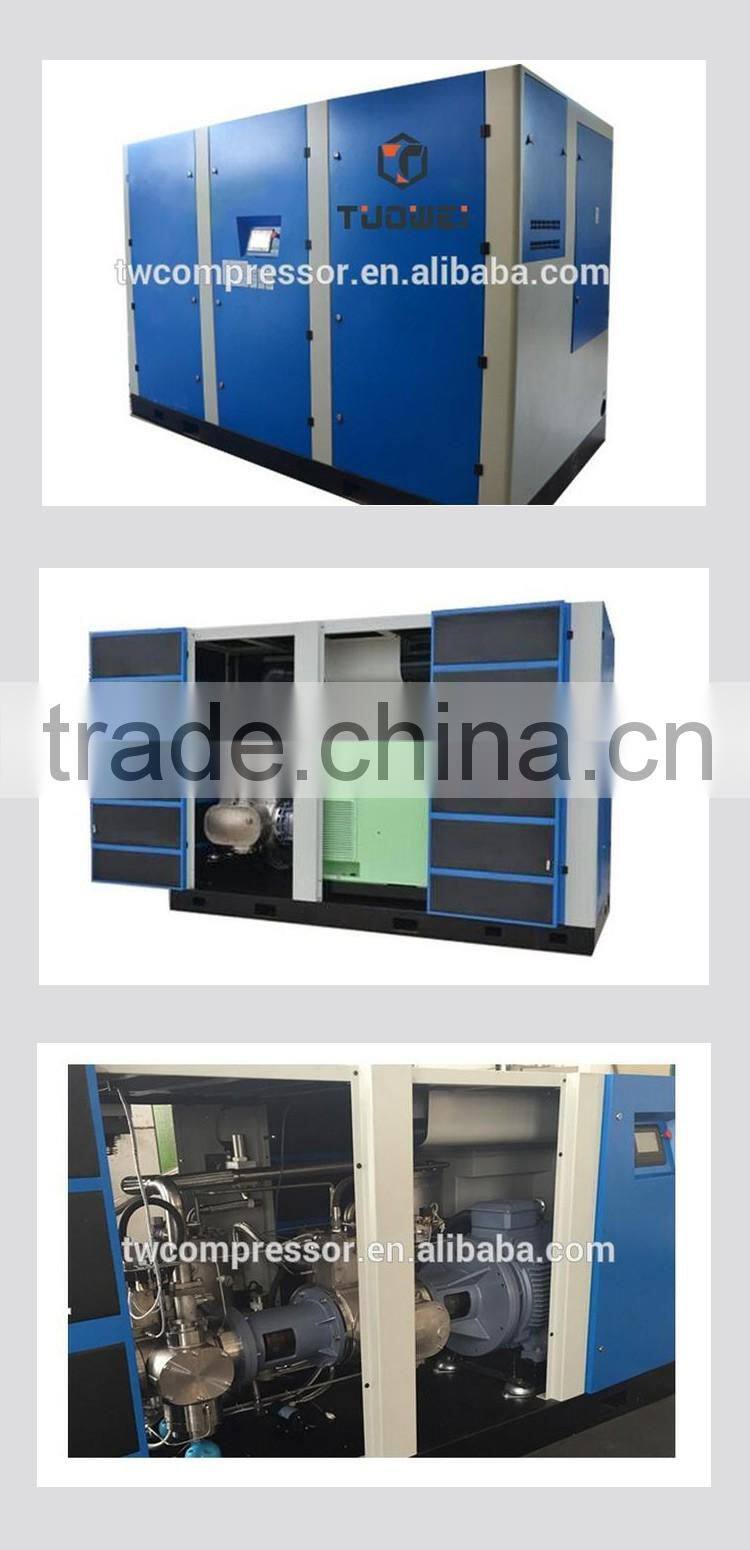

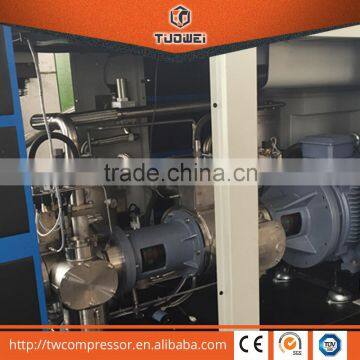

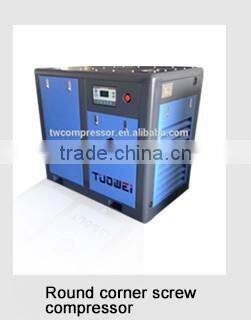

SGM08 Intelligent Control System 8bar 7.5KW Oil Free Screw Air Compressor
US$ 6,800 - 7,200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Efficient Filtering and Seperating System SGM11 8bar 11KW Oil Free Screw Air CompressorUS$ 9,700 - 10,200MOQ: 1 Piece -
High Efficiency SGM18 8bar 18KW Oil Free Screw Air CompressorUS$ 12,300 - 12,800MOQ: 1 Piece
-
World Advanced Screw Air SGM22 8bar 22KW Oil Free Screw Air CompressorUS$ 12,900 - 13,500MOQ: 1 Piece
-
High Efficiency Low Maintenance SGM30 8bar 30KW Oil Free Screw Air CompressorUS$ 14,700 - 15,400MOQ: 1 Piece
-
SGM37 Intelligent Control System 8bar 37KW Oil Free Screw Air CompressorUS$ 15,600 - 16,200MOQ: 1 Piece
Condition
New
Type
Screw
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Oil-free
Mute
No
Place of Origin
Guangdong, China
Brand Name
Tuowei
Model Number
SGM08
Voltage
380v/3ph/50hz(or Customized)
Dimension(L*W*H)
1300*800*1300mm
Weight
500kg
Certification
CE,TUV,ISO
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available
SGM08 intelligent control system 8bar 7.5KW oil free screw air compressor
| Type | Screw | Noise level | ≤58dB(A) |
| Lubrication Style | Lubricated | protection class | IP54 |
| Model Number | SGM08 | Dimension(L*W*H) | 1300*800*1300mm |
| Weight | 500kgs |
Certification | TUV |
| Pressure | 8bar | Displacemint | 1.15m3/min |
| Power | 7.5kw | Cooling water | 2T/h |
Advantages
-World advanced screw air compressor the features of high efficiency low maintenance and lifetime.-Intelligent control system to automatically control the start&stop on the machine and adjust the air capacity.
-Complete production fuction with fault alarm and indication.
-Efficient filtering and seperating system.
-Large oil-after cooler ensures tge machines in optimum operation temperature.
-Energy saving and low emission in the industry.
-Not only do we offer screw air compressors, but also we try our best to break industry monopoly to offer users the most profits.
Warranty
- Two years for the air end,one year for the whole machine.
- We will send new parts to you for replacement within the warranty period.
>
| SGM OIL FREE SCREW AIR COMPRESSOR | |||||||||
| Model |
Pressure Mpa |
Capacity M3/min |
Power Kw |
Noise dB(A) |
Weight Kg |
Inlet and outlet pipe diameter of cooling water |
Quantity of cooling water |
Dimensions mm |
Air outlet |
| Water entering 32°C | |||||||||
| T/h | |||||||||
| SGM08 | 0.8 | 1.15 | 7.5 | 58 | 500 | 3/4" | 2 | 1300×800×1300 | 3/4" |
| 1 | 1.02 | ||||||||
| SGM11 | 0.8 | 1.55 | 11 | 58 | 540 | 3/4" | 2.5 | 1300×800×1300 | 3/4" |
| 1 | 1.32 | ||||||||
| 1.25 | 1.02 | ||||||||
| SGM15 | 0.8 | 2.4 | 15 | 63 | 650 | 1" | 3.5 | 1600×910×1350 | 1" |
| 1 | 2.12 | ||||||||
| 1.25 | 1.61 | ||||||||
| SGM18 | 0.8 | 3.1 | 18.5 | 65 | 840 | 1" | 4 | 1600×910×1350 | 1" |
| 1 | 2.62 | ||||||||
| 1.25 | 2.13 | ||||||||
| SGM22 | 0.8 | 3.5 | 22 | 65 | 870 | 1" | 5 | 1600×910×1350 | 1" |
| 1 | 3.13 | ||||||||
| 1.25 | 2.61 | ||||||||
| SGM30 | 0.8 | 5 | 30 | 66 | 980 | 1 1/4" | 7 | 1950×1050×1432 | 1 1/2" |
| 1 | 4.2 | ||||||||
| 1.25 | 3.18 | ||||||||
| SGM37 | 0.8 | 6.1 | 37 | 67 | 1000 | 1 1/4" | 9 | 1950×1050×1432 | 1 1/2" |
| 1 | 5.22 | ||||||||
| 1.25 | 4.81 | ||||||||
| SGM45 | 0.8 | 7.3 | 45 | 68 | 1060 | 1 1/2" | 10 | 2150×1300×1590 | 2" |
| 1 | 6.13 | ||||||||
| 1.25 | 5.65 | ||||||||
| SGM55 | 0.8 | 9.6 | 55 | 70 | 1250 | 1 1/2" | 12 | 2150×1300×1590 | 2" |
| 1 | 8.6 | ||||||||
| 1.25 | 7.42 | ||||||||
| SGM75 | 0.8 | 12.5 | 75 | 73 | 1480 | 1 1/2" | 18 | 2150×1300×1590 | 2" |
| 1 | 11.42 | ||||||||
| 1.25 | 9.83 | ||||||||
| SGM90 | 0.8 | 16.3 | 90 | 73 | 2030 | 2" | 20 | 2550×1400×1605 | 2 1/2" |
| 1 | 14.52 | ||||||||
| 1.25 | 12.3 | ||||||||
| SGM110 | 0.8 | 19.4 | 110 | 78 | 2450 | 2" | 24 | 2550×1400×1605 | 2 1/2" |
| 1 | 16.9 | ||||||||
| 1.25 | 15.1 | ||||||||
| SGM132 | 0.8 | 22.21 | 132 | 78 | 2850 | 2" | 30 | 2550×1400×1605 | 2 1/2" |
| 1 | 20.38 | ||||||||
| 1.25 | 18.29 | ||||||||
| SGM160 | 0.8 | 28.85 | 160 | 78 | 3750 | 2 1/2" | 35 | 3300×2200×2000 | 3" |
| 1 | 24.52 | ||||||||
| 1.25 | 22.17 | ||||||||
| SGM200 | 0.8 | 36.63 | 200 | 78 | 4100 | 3" | 43 | 3300×2200×2000 | 4" |
| 1 | 32.7 | ||||||||
| 1.25 | 27.72 | ||||||||
| SGM250 | 0.8 | 42.88 | 250 | 78 | 4750 | 3" | 53 | 3300×2200×2000 | 4" |
| 1 | 39 | ||||||||
| 1.25 | 34.64 | ||||||||
| SGM320 | 0.8 | 59.1 | 320 | 80 | 6350 | 4" | 60 | 3600×2800×2000 | 5" |
| 1 | 53.5 | ||||||||
| 1.25 | 48.25 | ||||||||
Related Products
FAQ
-What checking/controlls do you do before shipping out the machines?We will test pressure,airflow,oil leakage,all parts assembled tight, Vibration performance and temperature before packed.
-What is the rotor speed for the air end?
2980rmp.
-Can change the voltage to 415v/220v/575v/6000v, 50HZ/60HZ?
Yes, it can changed.
-Can you offer both air cooled and water cooled?
Yes, we can.
-Can you offer two stage,four stage IP54 motor?
Yes, we can offer.
-What is brand of the inverter?
Using Holip/Yisit/Huichuang,Price will be higher if use ABB/SIEMENS/TECO brand.
-Will you use rubber pipe for air and oil system?
Use steel hard and flexible pipe.
-Which kind of oil will you used for?
46#mineral oil.
-Do you offer touch control panel,Remote monitoring?
Yes,offered.
Our Services
Company Information
Tuowei Compressor is a professional supplier for screw compressors. Offer 1--42m3/min water lubricated oil free compressors .
which is widely used for pharmaceutical companies, food production enterprises, advanced packaging manufacturers and electronic industries.
The company the world's first two high-pressure screw compressor, do the world's highest pressure of 100 kilograms per square centimeter (ie 10.0MPa), to fill the gaps in international, is the world's only manufacturer of two-screw compressor.
Currently this high-pressure screw compressor products used Chinese rocket Research Institute, China Aviation Industry Corporation, the world's top 500 technology companies such as Honeywell aerospace manufacturing companies, and extensive use of the blowing, tire manufacturing, high-pressure valve pressure test and other industries.
