Product Description

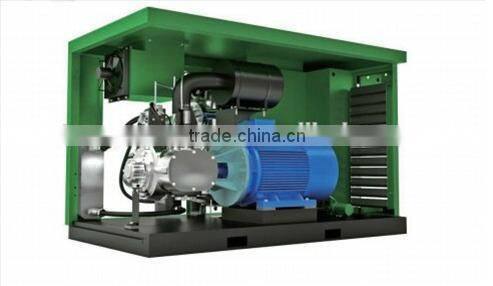

8bar oil free lubrication style and screw type oil free air compressor
1. Air end: Inheriting the full-stainless steel oil-free air end of French.
2. Motor: With the high-quality motor of well-known brand, IP code of IP 54, Level F of insulation level, grease lubrication, SKF bearing, high efficiency, the special design of the machine can be conducted according to the requirements of the users.
3. Vapor separator: The delicate design of the full stainless steel vapor separating tank makes the vapor completely separate inside.
4. Water screw controller: The advanced controlling and monitoring system can display all operation situation of the whole unit, together with RS485 interface fulfilling remote control.
5. Air inlet valve: Patent air inlet valve 100% reliability.
Detailed Images

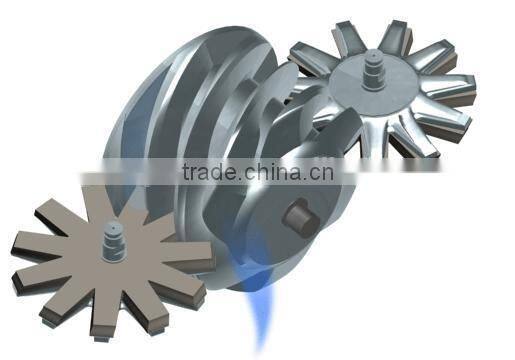

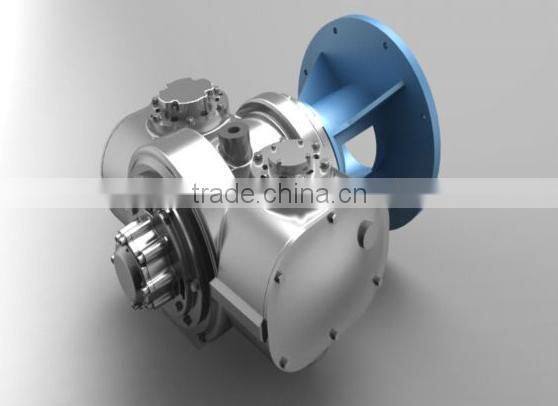

Air end Inside sketch of air end

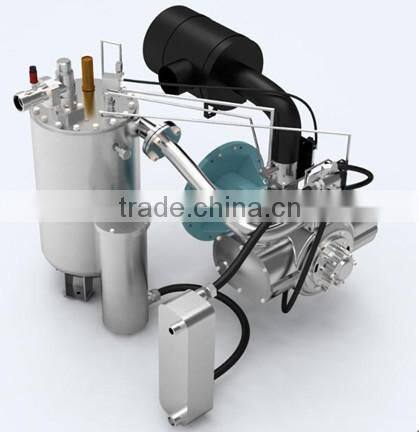

Internal structure of oil-free screw air compressor

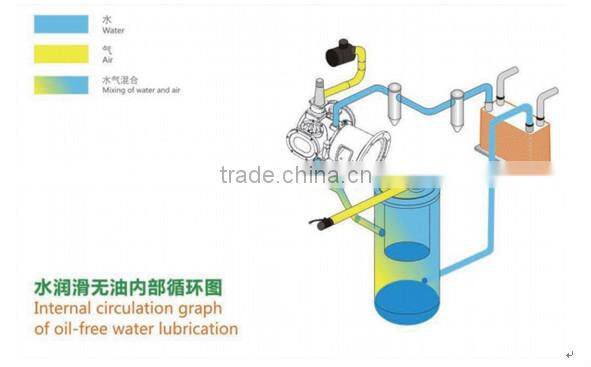

Internal circulation graph of oil-free water lubrication

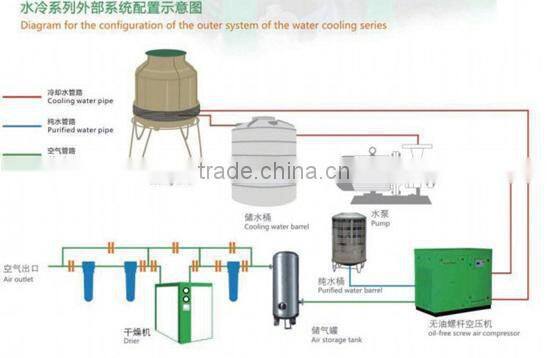

Diagram for the configuration of the outer system of the water cooling series

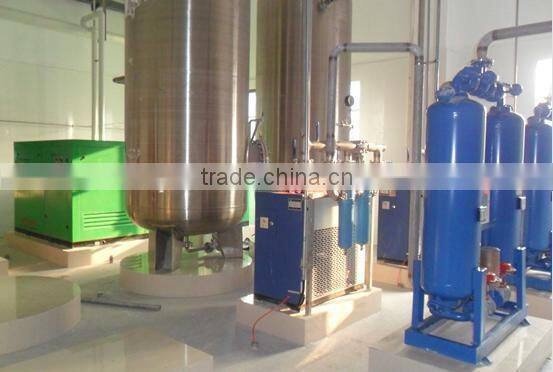

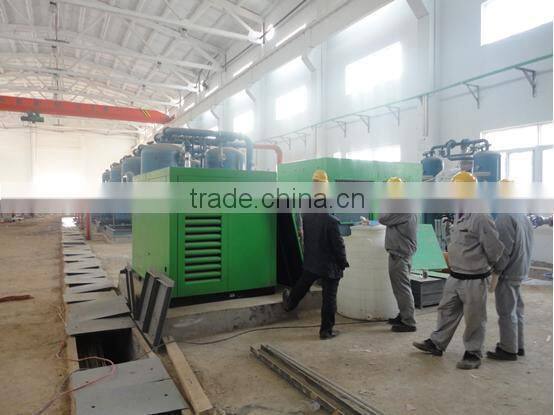

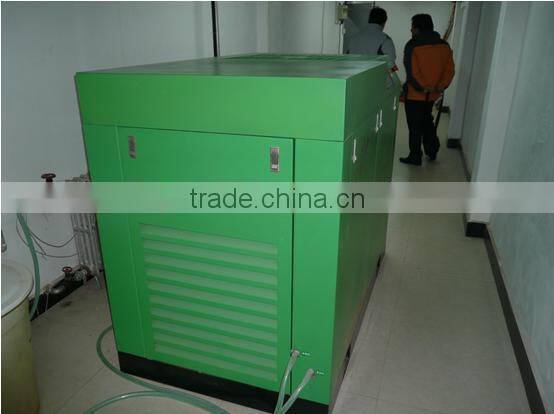

Practical applications
SGM Oil-free Screw Air Compressor Technical Specifications:
| Model | Pressure | Capacity | Power | Noise | Weight | Inlet and outlet pipe diameter | Quantity of cooling water | Dimensions | Air outlet |
| Mpa | M3/min | Kw | dB(A) | Kg | of cooling water | Water entering 32°C | mm | ||
| T/h | |||||||||
| SGM08 | 0.8 | 1.15 | 7.5 | 58 | 500 | 3/4" | 2 | 1300×800×1300 | 3/4" |
| 1 | 1.02 | ||||||||
| SGM11 | 0.8 | 1.55 | 11 | 58 | 540 | 3/4" | 2.5 | 1300×800×1300 | 3/4" |
| 1 | 1.32 | ||||||||
| 1.25 | 1.02 | ||||||||
| SGM15 | 0.8 | 2.4 | 15 | 63 | 650 | 1" | 3.5 | 1600×910×1350 | 1" |
| 1 | 2.12 | ||||||||
| 1.25 | 1.61 | ||||||||
| SGM18 | 0.8 | 3.1 | 18.5 | 65 | 840 | 1" | 4 | 1600×910×1350 | 1" |
| 1 | 2.62 | ||||||||
| 1.25 | 2.13 | ||||||||
| SGM22 | 0.8 | 3.5 | 22 | 65 | 870 | 1" | 5 | 1600×910×1350 | 1" |
| 1 | 3.13 | ||||||||
| 1.25 | 2.61 | ||||||||
| SGM30 | 0.8 | 5 | 30 | 66 | 980 | 1 1/4" | 7 | 1950×1050×1432 | 1 1/2" |
| 1 | 4.2 | ||||||||
| 1.25 | 3.18 | ||||||||
| SGM37 | 0.8 | 6.1 | 37 | 67 | 1000 | 1 1/4" | 9 | 1950×1050×1432 | 1 1/2" |
| 1 | 5.22 | ||||||||
| 1.25 | 4.81 | ||||||||
| SGM45 | 0.8 | 7.3 | 45 | 68 | 1060 | 1 1/2" | 10 | 2150×1300×1590 | 2" |
| 1 | 6.13 | ||||||||
| 1.25 | 5.65 | ||||||||
| SGM55 | 0.8 | 9.6 | 55 | 70 | 1250 | 1 1/2" | 12 | 2150×1300×1590 | 2" |
| 1 | 8.6 | ||||||||
| 1.25 | 7.42 | ||||||||
| SGM75 | 0.8 | 12.5 | 75 | 73 | 1480 | 1 1/2" | 18 | 2150×1300×1590 | 2" |
| 1 | 11.42 | ||||||||
| 1.25 | 9.83 | ||||||||
| SGM90 | 0.8 | 16.3 | 90 | 73 | 2030 | 2" | 20 | 2550×1400×1605 | 2 1/2" |
| 1 | 14.52 | ||||||||
| 1.25 | 12.3 | ||||||||
| SGM110 | 0.8 | 19.4 | 110 | 78 | 2450 | 2" | 24 | 2550×1400×1605 | 2 1/2" |
| 1 | 16.9 | ||||||||
| 1.25 | 15.1 | ||||||||
| SGM132 | 0.8 | 22.21 | 132 | 78 | 2850 | 2" | 30 | 2550×1400×1605 | 2 1/2" |
| 1 | 20.38 | ||||||||
| 1.25 | 18.29 | ||||||||
| SGM160 | 0.8 | 28.85 | 160 | 78 | 3750 | 2 1/2" | 35 | 3300×2200×2000 | 3" |
| 1 | 24.52 | ||||||||
| 1.25 | 22.17 | ||||||||
| SGM200 | 0.8 | 36.63 | 200 | 78 | 4100 | 3" | 43 | 3300×2200×2000 | 4" |
| 1 | 32.7 | ||||||||
| 1.25 | 27.72 | ||||||||
| SGM250 | 0.8 | 42.88 | 250 | 78 | 4750 | 3" | 53 | 3300×2200×2000 | 4" |
| 1 | 39 | ||||||||
| 1.25 | 34.64 | ||||||||
| SGM320 | 0.8 | 59.1 | 320 | 80 | 6350 | 4" | 60 | 3600×2800×2000 | 5" |
| 1 | 53.5 | ||||||||
| 1.25 | 48.25 |
Warranty
Five years for air end,one year for whole machine.
Contact details
FUZHOU TUOWEI MECHANICAL & ELECTRIAL EQUIPMENT CO., LTD
Add:#1401-1402 No.14Building ,Haixibaiyuecheng, No.120 Fuxia Road,Cangshan District,Fuzhou,Fujian,China
Tel:86-591-83753886
Fax:86-591-83790287
Mobile:86-13599041824
Skype: hajarliu
