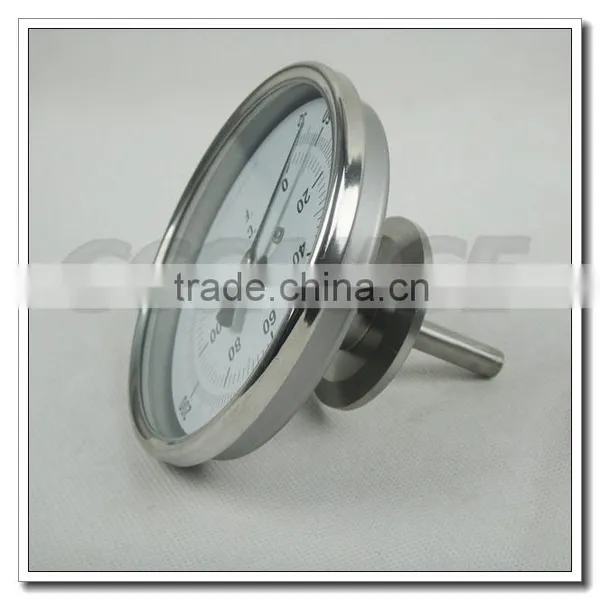

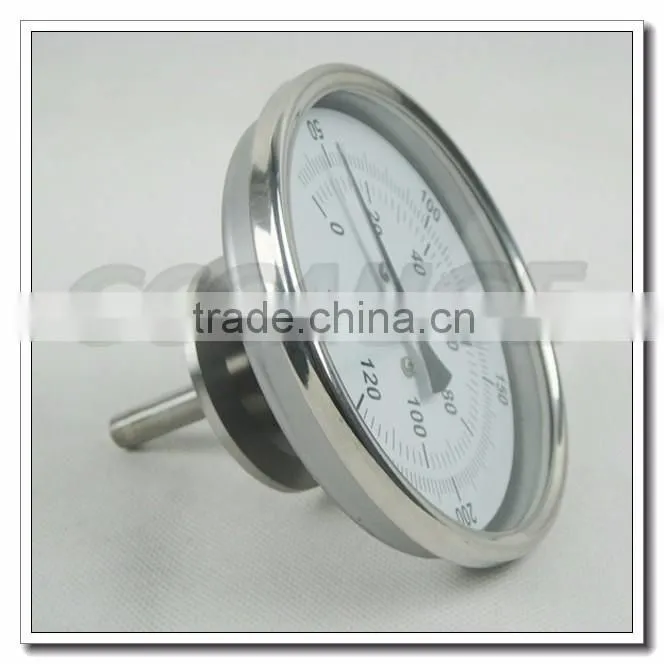

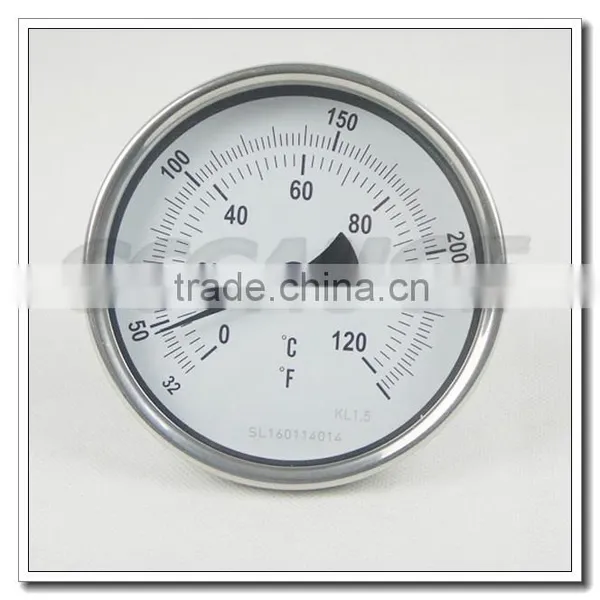

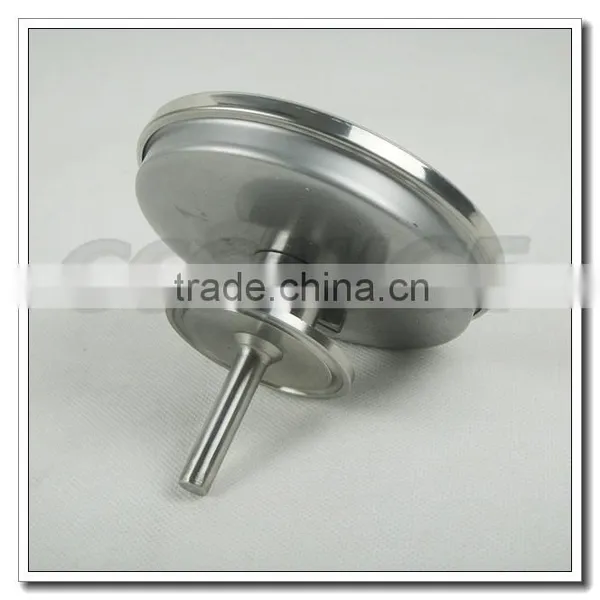

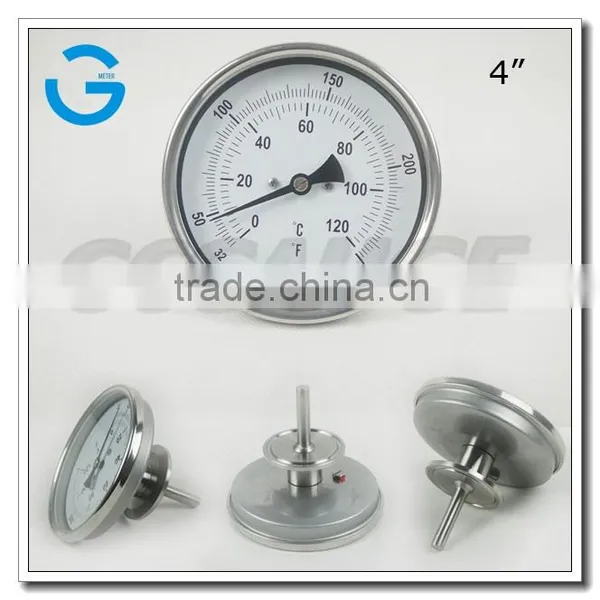

High quality 4 inch stainless steel bottom mount sanitary temperature gauge
A general purpose, tamper-proof, 304 stainless steel thermometer
hermetically sealed case
Bi-metallic sensing element for reliable readings
Bottom or back connected
Stem length from 2.5" (63mm) and up
±1% accuracy
Dial |
4" (100mm) dish shaped dial, aluminum with black markings |
pointer |
Brass, painted black |
Case/Ring |
AISI 304 SS |
Welding |
TIG |
Lens |
hermetically sealed |
Maximum operating pressure |
125 psi (861 kPa) |
Stem |
AISI 316SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm Stem with thread clamping connection |
Operating Temperature |
maximum 75% of full scale value |
Connection |
1/2” NPT, bottom or centre back |
Ambient/Process Temperature |
Maximum 248°F (120°C) |
Movement |
Bi-metallic coil |
Enclosure Rating |
IP68 |
Options/notes:
The length of stem can be extended, backing mounting and bottom mounting are acceptable
Adjustable at black.
Sanitary medical industry process
