265 CFM portable electrical screw air compressor
Product Description
1. Air end:Patented line of large-diameter rotor design.Airend and diesel is directly connected through high-elastic coupling without increasing gear. Speed of air end is consistent with the diesel engine which make it higher efficiency, better reliability and longer life.
2. Diesel Engine :Using the famous diesel engine, like the Steyr, Yuchai and so on. Strong power, reliable operation, fuel saving and low-level emissions and noise.
3. Gas control system is simple and reliable. Inlet rate from 0 to 100% and be adjusted automatically depending on the gas consumption.Automatically adjust the engine throttle to save diesel fuel.
4. Microcomputer intelligent control air compressor discharge pressure, exhaust gas temperature, engine speed, oil pressure, water temperature and fuel tank level operating parameters with automatic alarm and shutdown protection.
5. Multi-stage air filter, suitable for dusty work environment; multi-stage fuel filter; large oil-water cooler, suitable for high temperature, high altitude environment.
6. Spacious maintenance doors, parts and components to be maintained within the accessible range, the maintenance of air filters, oil filters, fuel tanks, batteries and oil coolers are convenient and easily which reducing downtime.
7. Easy to move in rough terrain conditions can still be mobile and flexible. Each compressor configuration rings for safe hoisting and transportation.
8. Using the famous diesel engine, like the Cummins, Steyr, Yuchai and so on. Strong power, reliable operation, fuel saving and low-level emissions and noise.

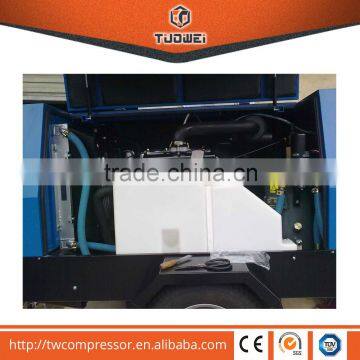

Detailed Images

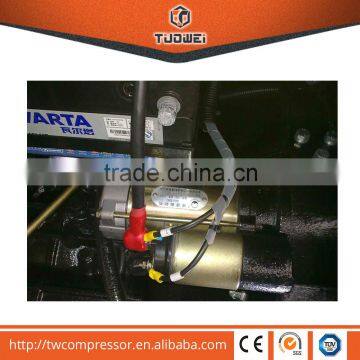

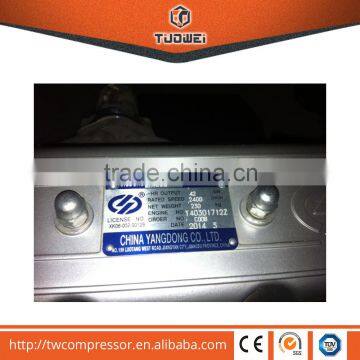

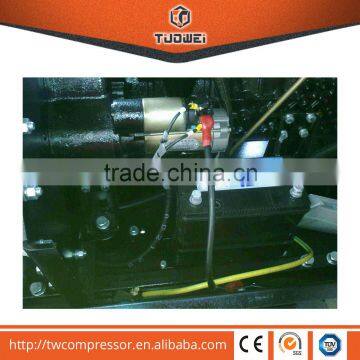

Air end Diesel Oil/air seperator

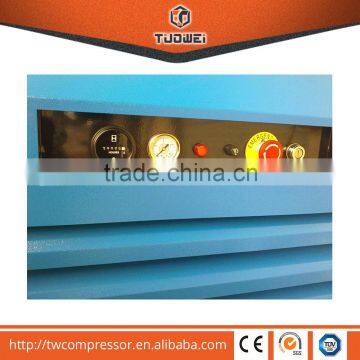

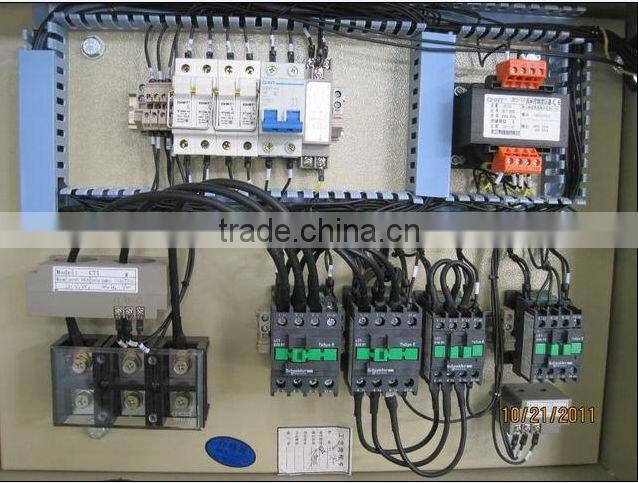

Microcomputer intelligent control panel fans

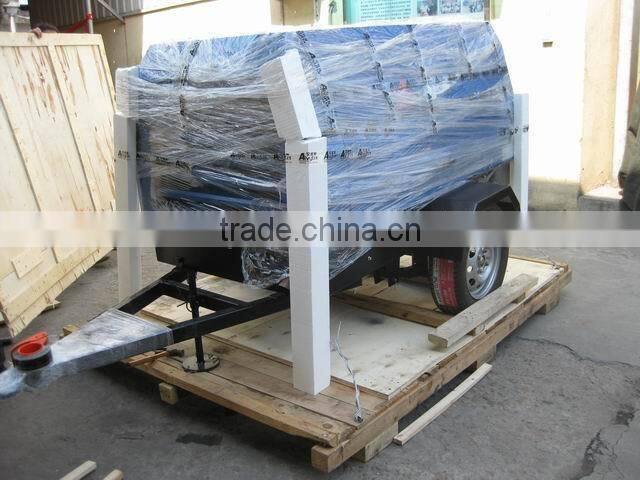

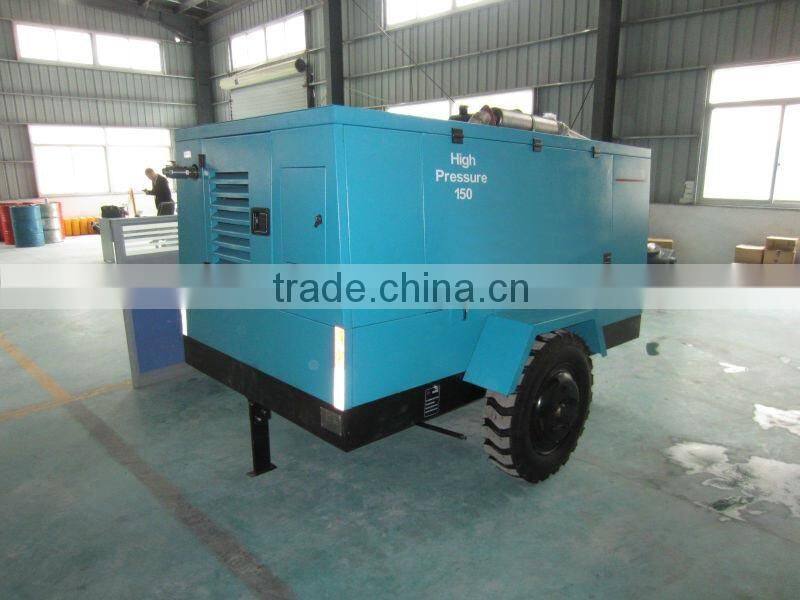

Product Overviews Packaging

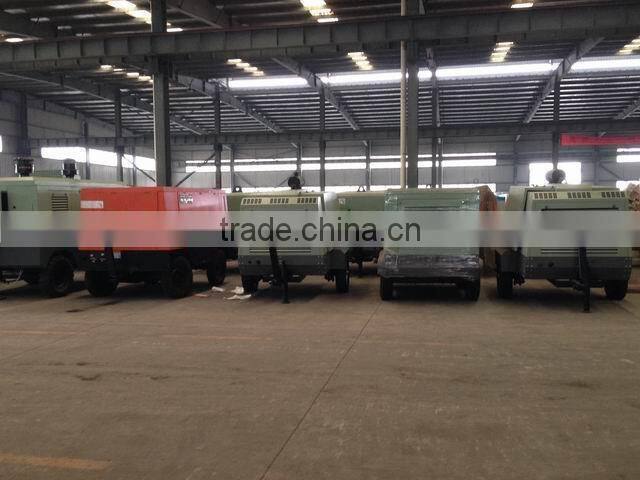

Factory information
Single Stage Portable Diesel Screw Compressor | ||||||
Style No. |
Capacity |
Pressure |
Diesel Brand |
Diesel |
Weight |
Dimension |
|
cfm |
Psi |
|
|
kg |
mm×mm×mm |
SYC-3.6/7 |
127 |
102 |
YTO |
YND485G,22KW |
652 |
2630X1318X1280 |
SYC-5/7 |
177 |
102 |
YTO |
YSD490G,32KW |
880 |
2821X1470X1361 |
SYC-6/7 |
212 |
102 |
YUCHAI |
YCD4B22-95,70kW |
1400 |
3750×1920×1700 |
SYC-7.5/7 |
265 |
102 |
YUCHAI |
YC4D80-K11,58kW |
1850 |
3900×1920×1700 |
SYC-8.5/14 |
300 |
203 |
CUMMINS |
4BTA3.9-C125,93kW |
1900 |
3750×1920×1900 |
SYC-9/7 |
318 |
102 |
YUCHAI |
YC4D95Z-K20Y,70kW |
1850 |
3900×1920×1700 |
SYC-9/14.5 |
318 |
210 |
YUCHAI |
YC6B150Z-K20,110kW |
2380 |
4080×1980×2350 |
SYC-10/7 |
353 |
102 |
YUCHAI |
YC4D95Z-K20,70kW |
1900 |
3900×1920×1700 |
SYC-10/10 |
353 |
145 |
CUMMINS |
4BTA3.9-C125,93kW |
1900 |
3900×1920×1900 |
SYC-10/13 |
353 |
189 |
YUCHAI |
YC6B150Z-K20,110kW |
2050 |
4080×1980×2350 |
SYC-12/7 |
424 |
102 |
CUMMINS |
4BTA3.9-C125,93kW |
2050 |
3900×1980×1900 |
SYC-12/7A |
424 |
102 |
YUCHAI |
YC4A125Z-T10,92kW |
2050 |
4000×1980×1900 |
SYC-12/10 |
424 |
145 |
YUCHAI |
YC6B150Z-K20,110kW |
2380 |
4080×1980×2350 |
SYC-12/12 |
424 |
174 |
CUMMINS |
EQ6BT5.9-C160,118kW |
2380 |
4080×1980×2350 |
SYC-12/13 |
424 |
189 |
CUMMINS |
6BTA5.9-C180,132kW |
2750 |
3450×1520×2350 |
SYC-13/13 |
459 |
189 |
CUMMINS |
6BTA5.9-C180,132kW |
2750 |
3350×1520×2220 |
SYC-13/13A |
459 |
189 |
YUCHAI |
YC6A190Z-T10,140kW |
2750 |
3350×1520×2220 |
SYC-13/17 |
459 |
247 |
CUMMINS |
6CTA8.3-C215,158kW |
3400 |
3780×1980×2500 |
SYC-15/13 |
530 |
189 |
STEYR |
WD415.23,166kW |
3350 |
3380×1650×2500 |
SYC-15/13A |
530 |
189 |
YUCHAI |
YC6A240-20,177kW |
3350 |
3380×1650×2500 |
SYC-16/13 |
565 |
189 |
CUMMINS |
6CTA8.3-C215,158kW |
3350 |
3650×1800×2500 |
SYC-17/7 |
600 |
102 |
CUMMINS |
6BTA5.9-C180,132kW |
3350 |
3380×1640×2350 |
SYC-17/14.5 |
600 |
210 |
CUMMINS |
6CTA8.3-C260,194kW |
3400 |
3980×1800×2450 |
SYC-18/17 |
635 |
246 |
CUMMINS |
6CTA8.3-C260,194kW |
3400 |
3980×1800×2450 |
SYC-22/8 |
777 |
116 |
CUMMINS |
6CTA8.3-C260,194kW |
4000 |
4580×1950×2600 |
SYC-22/13 |
777 |
189 |
YUCHAI |
YC6M340L-K20 250kW |
4500 |
4580×1950×2600 |
SYC-27/10 |
953 |
145 |
YUCHAI |
YC6M340L-K20 250KW |
5000 |
4600×1950×2600 |
SYC-32/10 |
1130 |
145 |
YUCHAI |
YC6M395L-K20 288KW |
5000 |
4600×1950×2600 |
|
Diesel Portable Screw Two Stages compression | ||||||
SYC-19.5/19 |
688 |
275 |
CUMMINS |
6CTA8.3-C260,194kW |
3700 |
3650×1800×2500 |
SYC-22/20 |
777 |
290 |
YUCHAI |
YC6M395L-K20,288kW |
4850 |
4450×1950×2650 |
SYC-22/20K |
777 |
290 |
CUMMINS |
6LTAA8.9-C360,265kW |
4500 |
4600×1950×2850 |
SYC-26/20 |
918 |
290 |
CUMMINS |
6LTAA8.9-C360,265kW |
4850 |
4600×1950×2850 |
SYC-26/25 |
918 |
362 |
CUMMINS OR YUCHAI |
QSZ13-C500 OR YC6K500L,375kw |
5100 |
4700×2100×2500 |
SYC-21/35 |
741 |
507 |
5100 |
4700×2100×2500 |
||
SYC-33/25 |
1165 |
362 |
CUMMINS OR YUCHAI |
QSZ13-C550 OR YC6K550L,412kw |
5200 |
4700×2100×2500 |
SYC-26/35 |
918 |
507 |
5200 |
4700×2100×2500 |
||
SYC-39/25 |
1377 |
362 |
CUMMINS OR CAT |
KTA19-P630 OR C-18 ACERT,472kw |
5500 |
4700×2100×2500 |
SYC-33/35 |
1165 |
507 |
5500 |
4700×2100×2500 |
||
Warranty
Two years for air end,one year for whole machine.
We will send new parts to you for replacement within the warranty period.
