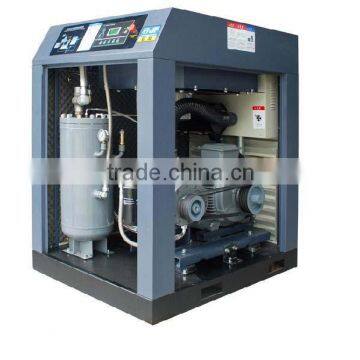

420v screw driven electrical air cooling silence industrial air compressor
Technical Parameter
| Model | SG-22 | |
| Capacity/Pressure | (m3/min.)/(bar) | 3.8/7.0 |
| 3.5/8.0 | ||
| 3.2/10.0 | ||
| 2.9/13.0 | ||
| Motor Power | KW | 22 |
| HP | 30 | |
| Noise | dB(A) | 69±2 |
| Pipe Diameter | G1 1/4 | |
| Weight | KG | 500 |
| Dimension | L(mm) | 1100 |
| W(mm) | 850 | |
| H(mm) | 1300 | |
| Cooling Air Flow | (m3/min.) | 100 |

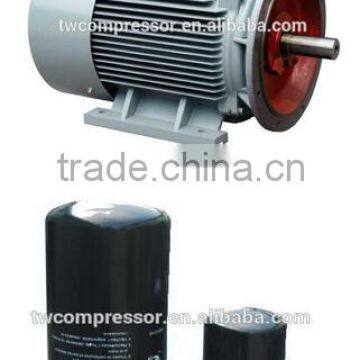

1.Motor: With the tailor-made low RPM motor and the isolation rate F SKF bearings, our compressors are ensured to operate reliably and are 3% to 5% more efficient than competing machines.
2.Air End: By using the most advanced 3rd generation 5:6 rotors and the optimized rotor profile from Europe, our air-ends are the best-in-class with low noise, low energy consumption, low maintenance cost, and long reliable service life.
3.Oil Filter: Adopting the aerospace design revolving oil filter with superior materials, our oil filters show a better filtering result than other oil filters and effectively extent the service life of air-ends.
4.Air Filter: By using the large dust holding and low flow resistance design, our air filters can filter the micro articles in the air to ensure every component of the system works normally and efficiently. The dust holding rate is over 99.5%.
5.Air Inlet Valve: With the design, the inler valve can be adjusted between 0 to 100%. By using the volume, adjustment valve, the compressors will loss less pressure and have a longer service life.
6.Oil-Air Separator: With the super high volume tank, the superior quality separator components, and the advanced design thrice oil-air separator, our compressors can ensure the high quality of the compressed air which contains less than 3ppm oil.
Detailed Information of Screw Air Compressor's Spare Parts
| Item | Parts | Brands |
| 1 | Air end | GU/Torin(Germany origin) |
| 2 | Intake valve | Hoerbiger(Germany) |
| 3 | Solenoid valve | CEME(Itality) |
| 4 | Temperature sensor | Hoerbiger(Germany) |
| 5 | Pressure sensor | Huba original(Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR |
| 8 | Thermotat valve | Italy VMC |
| 9 | PLC | Schneider Eletric(France) |
| 10 | Minimal pressure valve | Hoerbiger(Germany) |
| 11 | Air filter element | Germany MANN |
| 12 | Oil filter element | Germany MANN |
| 13 | Oil separator element | Germany MANN |
| 14 | Bearing | Sweden SKF |
About 80% spare parts we use are the famous brands in the world!!!
SG Electric Industrial Screw Air Compressor Technical Specifications
|
Model |
Pressure/Capacity(m3/min.) |
Power of Motor | Size of Outlet | Dimension | Weight | Noise | |||
| 7bar | 8bar | 10bar | 13bar | KW | mm | KG | dB(A) | ||
| SG-06 | 0.85 | 0.78 | 0.65 | 0.5 | 5.5 | G3/4 | 750*650*830 | 178 | 65±2 |
| SG-08 | 1.2 | 1.1 | 0.95 | 0.8 | 7.5 | G3/4 | 750*650*830 | 178 | 66±2 |
| SG-11 | 1.7 | 1.6 | 1.4 | 1.2 | 11 | G3/4 | 950*770*1050 | 335 | 68±2 |
| SG-15 | 2.4 | 2.2 | 2.0 | 1.7 | 15 | G3/4 | 930*770*1100 | 350 | 68±2 |
| SG-18 | 3.1 | 2.9 | 2.7 | 2.2 | 18.5 | G1 1/4 | 1100*850*1300 | 500 | 69±2 |
| SG-22 | 3.8 | 3.5 | 3.2 | 2.9 | 22 | G1 1/4 | 1100*850*1300 | 500 | 69±2 |
| SG-30 | 5.2 | 5.0 | 4.3 | 3.7 | 30 | G1 1/4 | 1100*850*1300 | 560 | 69±2 |
| SG-37 | 6.4 | 6.1 | 5.7 | 5.1 | 37 | G1 1/2 | 1200*1000*1420 | 700 | 70±2 |
| SG-45 | 8.0 | 7.7 | 7.0 | 5.8 | 45 | G1 1/2 | 1200*1000*1420 | 820 | 72±2 |
| SG-55 | 10.5 | 9.8 | 8.7 | 7.5 | 55 | G2 | 1500*1150*1500 | 1300 | 73±2 |
| SG-75 | 13.6 | 13.3 | 11.6 | 9.8 | 75 | G2 | 1550*1270*1500 | 1350 | 75±2 |
| SG-90 | 16.3 | 16.0 | 14.6 | 12.3 | 90 | G2 | 1700*1550*1600 | 1650 | 75±2 |
| SG-110 | 20.8 | 20.6 | 17.0 | 14.2 | 110 | DN65 | 2380*1650*1900 | 2500 | 75±2 |
| SG-132 | 24.8 | 24.0 | 20.6 | 16.5 | 132 | DN65 | 2380*1650*1900 | 2600 | 75±2 |
| SG-160 | 28.5 | 27.0 | 23.2 | 19.7 | 160 | DN80 | 3000*1800*2050 | 3150 | 75±2 |
| SG-185 | 32.5 | 30.2 | 27.0 | 22.5 | 185 | DN80 | 3000*1800*2050 | 3300 | 78±2 |
| SG-220 | 38.6 | 36.4 | 33.1 | 30.5 | 220 | DN100 | 3000*1980*1900 | 4300 | 78±2 |
| SG-250 | 43.9 | 42.5 | 38.8 | 34.6 | 250 | DN100 | 3000*1980*1900 | 4600 | 78±2 |
| SG-315 | 56.0 | 53.0 | 49.0 | 43.0 | 315 | DN125 | 3800*2280*2248 | 6500 | 80±2 |
| SG-355 | 64.0 | 62.0 | 57.6 | 49.0 | 355 | DN125 | 3800*2280*2248 | 7000 | 82±2 |
| SG-400 | 74.0 | 72.0 | 62.0 | 56.5 | 400 | DN150 | 4200*2200*2350 | 7500 | 83±2 |
Fuzhou Tuowei Mechanical&Electrical Equipment Co.,Ltd
Establish in 2010, Fuzhou Tuowei Mechanical & Electrical Equipment Co.,Ltd is a professional high tech enterprise. Located in Fuzhou, Fujian.
We are fully committed to provide technologically advanced screw air compressors. We have partnered with leading opetators and manufactors in this industry. Our company professionally supplies rotory screw air compressor, diesel portable compressor, oil free compressor, drilling rig, air dryer and spare parts. We had established a supply-and-distribution network that consists of well-know dealer and manufactorers in the air compressor business. The equipment is widely implemented in industry such as textile, steel, mining, railway and municipal engineering.
1. World advanced screw air compressor the features of high efficiency low maintenance and lifetime.
2. Intelligent control system to automatically control the start&stop on the machine and adjust the air capacity.
3. Complete production fuction with fault alarm and indicatin.
4. Efficient filtering and seperating system.
5. Large oil-after cooler ensures tge machines in optimum operation temperature.
6. Energy saving and low emission in the industry.
7. Not only do we offer screw air compressors, but also we try our best to break industry monopoly to offer users the most profits.
Two years for the air end, one year for the whole machine.
We will send new parts to you for replacement within the warranty period.
