1.2m3/min Displacement Belt Direct Drive Rotary Electric Dental Air Compressor Price
US$ 1,350 - 1,550
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5.5KW AC Power 7bar Industrial Air Compressor With Low PricesUS$ 1,100 - 1,300MOQ: 1 Piece -
28.5m3/min 7bar Belt Direct Drive Rotary Electric Screw Air CompressorUS$ 14,500 - 14,800MOQ: 1 Piece
-
AC Power 24.8m3/min Displacement Electric Screw Truck Air Brake CompressorUS$ 10,300 - 10,600MOQ: 1 Piece
-
Belt Direct Drive Electric Screw Air Compressor With Spare PartsUS$ 9,700 - 10,000MOQ: 1 Piece
-
Electric Rotary Screw 16.3m3/min Displacement Air Compressor With MotorUS$ 8,400 - 8,700MOQ: 1 Piece
Condition
New
Type
Rotary
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
No
Place of Origin
Guangdong, China
Brand Name
Tuowei
Model Number
SG08
Voltage
380/220V
Dimension(L*W*H)
750*650*830mm
Weight
200kg
Certification
CE Certification
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available

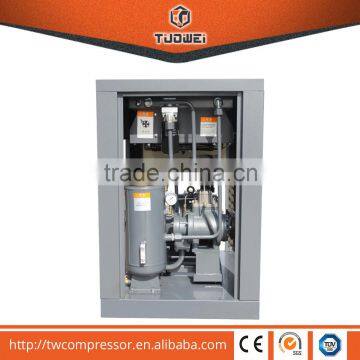

1.2m3/min displacement belt direct drive rotary electric dental air compressor price
Product Description
Advantages
-Simple, Compact Design:Sturdy construction with few moving parts, easy to access and maintain ,easy to replace parts, very reliable and durable.
-Direct Axial Coupling to the Motor:
Direct coupling is possible because the high compression ratio permit slow rotation speeds, eliminating the need for transmission or gears. Fewer parts, mean slower energy dissipation and simplified maintenance.
-Low Rotation Speeds:
Lower speeds reduce vibration, thus diminishing noise and wear, lowering temperature and eliminating the need for foundations.
-Low Cycle Temperature:
Lower temperatures reduce wear, coolant consumption and leakage caused by distension of parts.Less energy is needed for cooling, and the purity of delivered air is enhanced.
-Low Need for Maintenance:
With fewer parts suffering little wear, single-stage rotary units offer cleaner and more reliable operation, significantly reducing maintenance needs.
| Belt Drive Screw Air Compressor | ||||||||||||||||||
| Model | SG 06 | SG 08 | SG 11 | SG 15 | SG 18 | SG 22 | SG 30 | SG 37 | SG 45 | SG 55 | SG 75 | SG 90 | SG 110 | SG 132 | SG 160 | |||
| Capacity / Pressure | 0.85 / 0.7 | 1.2 / 0.7 | 1.7 / 0.7 | 2.4 / 0.7 | 3.1 / 0.7 | 3.8 / 0.7 | 5.2 / 0.7 | 6.4 / 0.7 | 8.0 / 0.7 | 10.5 / 0.7 | 13.6 / 0.7 | 16.3 / 0.7 | 20.8 / 0.7 | 24.8 / 0.7 | 28.5 / 0.7 | |||
| (m³/min/Mpa) | 0.78 / 0.8 | 1.1 / 0.8 | 1.6 / 0.8 | 2.2 / 0.8 | 2.9 / 0.8 | 3.5 / 0.8 | 5.0 / 0.8 | 6.1 / 0.8 | 7.7 / 0.8 | 9.8 / 0.8 | 13.3 /0.8 | 16.0 / 0.8 | 20.6 / 0.8 | 24.0 / 0.8 | 27.0 / 0.8 | |||
| 0.65 / 1.0 | 0.95 / 1.0 | 1.4/ 1.0 | 2.0 / 1.0 | 2.7 / 1.0 | 3.2 / 1.0 | 4.3 / 1.0 | 5.7 / 1.0 | 7.0 / 1.0 | 8.7 / 1.0 | 11.6 / 1.0 | 14.6 / 1.0 | 17.0 / 1.0 | 20.6 / 1.0 | 23.2 / 1.0 | ||||
| 0.5 / 1.3 | 0.8 / 1.3 | 1.2 / 1.3 | 1.7 / 1.3 | 2.2 / 1.3 | 2.9 / 1.3 | 3.7 / 1.3 | 5.1 / 1.3 | 5.8 / 1.3 | 7.5 / 1.3 | 9.8 / 1.3 | 12.3 / 1.3 | 14.2 / 1.3 | 16.5 / 1.3 | 19.7 / 1.3 | ||||
| Motor | Power (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | ||
| Horsepower | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 | 125 | 150 | 180 | 220 | |||
| Noise dB(A) | 63±2 | 65±2 | 68±2 | 68±2 | 69±2 | 69±2 | 69±2 | 70±2 | 72±2 | 73±2 | 75±2 | 75±2 | 75±2 | 75±2 | 75±2 | |||
| Air Outlet | G3/4 | G3/4 | G3/4 | G3/4 | G1 1/4 | G1 1/4 | G1 1/4 | G1 1/2 | G1 1/2 | G2 | G2 | G2 | DN65 | DN65 | DN80 | |||
| Pipe Diameter | 700 | 700 | 1230 | 1350 | 1650 | 2500 | 2600 | 3150 | ||||||||||
| Weight (kg) | 200 | 200 | 335 | 350 | 500 | 500 | 560 | 1200 | 1200 | 1500 | 1550 | 1700 | 2380 | 2380 | 3000 | |||
| Housing dimension | L(mm) | 750 | 750 | 950 | 930 | 1100 | 1100 | 1100 | 1000 | 1000 | 1150 | 1270 | 1550 | 1650 | 1650 | 1800 | ||
| W(mm) | 650 | 650 | 770 | 770 | 850 | 850 | 850 | 1420 | 1420 | 1500 | 1500 | 1600 | 1900 | 1900 | 2050 | |||
| H(mm) | 830 | 830 | 1100 | 1100 | 1300 | 1300 | 1300 | 180 | 191 | 320 | 330 | 400 | 450 | 450 | 500 | |||
| Cooling air Flow | 23 | 23 | 91 | 91 | 100 | 100 | 100 | - | 3 | 5 | 5 | 7 | 10 | 10 | 10 | |||
| ( m³.min) | - | 23 | 23 | 23 | 23 | 100 | 100 | 100 | ||||||||||
| Direct Drive Screw Air Compressor | ||||||||||||||||||
| Model | SGD 22 | SGD 30 | SGD 37 | SGD 45 | SGD 55 | SGD 75 | SGD 90 | SGD 185 | SGD 220 | SGD 250 | SGD 315 | SGD 355 | SGD 400 | SGD 450 | SGD 500 | SGD 560 | SGD 630 | |
| Capacity / Pressure | 3.8 / 0.7 | 5.2 / 0.7 | 6.4 / 0.7 | 8.0 / 0.7 | 10.5 / 0.7 | 13.6 / 0.7 | 16.3 / 0.7 | 32.5 / 0.7 | 38.6 / 0.7 | 43.9 / 0.7 | 56.0 / 0.7 | 64.0 / 0.7 | 74.0 / 0.7 | 85.0 / 0.7 | 93.0 / 0.7 | 105.0 / 0.7 | 125.0 / 0.7 | |
| (m³/min / Mpa) | 3.5 / 0.8 | 5.0 / 0.8 | 6.1 / 0.8 | 7.7 / 0.8 | 9.8 / 0.8 | 13.3 / 0.8 | 16.0 / 0.8 | 30.2 / 0.8 | 36.4 / 0.8 | 42.5 / 0.8 | 53.0 / 0.8 | 62.0 / 0.8 | 72.0 / 0.8 | 82.0 / 0.8 | 91.0 / 0.8 | 100.0 / 0.8 | 120.0 / 0.8 | |
| 3.2 / 1.0 | 4.3 / 1.0 | 5.7 / 1.0 | 7.0 / 1.0 | 8.7 / 1.0 | 11.6 / 1.0 | 14.6 / 1.0 | 27.0 / 1.0 | 33.1 / 1.0 | 38.8 / 1.0 | 49.0 / 1.0 | 57.6 / 1.0 | 62.0 / 1.0 | 70.0 / 1.0 | 82.0 / 1.0 | 85.0 / 1.0 | 100.0 / 1.0 | ||
| 2.9 / 1.3 | 3.7 / 1.3 | 5.1 / 1.3 | 5.8 / 1.3 | 7.5 / 1.3 | 9.8 / 1.3 | 12.3 / 1.3 | 22.5 / 1.3 | 30.5 / 1.3 | 34.6 / 1.3 | 43.0 / 1.3 | 49.0 / 1.3 | 56.5 / 1.3 | 60.5 / 1.3 | 68.0 / 1.3 | - | - | ||
| Motor | Power (KW) | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 185 | 220 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Horsepower | 30 | 40 | 50 | 60 | 75 | 100 | 125 | 250 | 300 | 340 | 420 | 480 | 540 | 600 | 670 | 750 | 840 | |
| Noise dB(A) | 69±2 | 69±2 | 70±2 | 72±2 | 73±2 | 75±2 | 75±2 | 78±2 | 78±2 | 78±2 | 80±2 | 82±2 | 83±2 | 84±2 | 86±2 | 88±2 | 88±2 | |
| Air Outlet | G1 1/4 | G1 1/4 | G1 1/2 | G1 1/2 | G2 | G2 | G2 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | DN200 | |
| Pipe Diameter | 720 | 900 | 1350 | 1400 | 1700 | 3330 | 4300 | 4600 | 6500 | 7000 | 7500 | |||||||
| Weight (kg) | 520 | 650 | 1500 | 1500 | 1650 | 1800 | 2000 | 3000 | 3000 | 3000 | 3800 | 3800 | 4200 | 8100 | 8500 | 9000 | 9000 | |
| Housing dimension | L(mm) | 1300 | 1500 | 1000 | 1000 | 1170 | 1200 | 1200 | 1800 | 1980 | 1980 | 2280 | 2280 | 2200 | 4650 | 4650 | 4650 | 4650 |
| W(mm) | 850 | 1000 | 1300 | 1300 | 1440 | 1500 | 1600 | 2050 | 1900 | 1900 | 2248 | 2248 | 2350 | 2050 | 2150 | 2150 | 2150 | |
| H(mm) | 1150 | 1300 | 180 | 191 | 320 | 330 | 400 | 600 | 900 | 900 | - | - | - | 2120 | 2120 | 2120 | 2120 | |
| Cooling air Flow | 100 | 100 | - | 3 | 5 | 5 | 7 | 12 | 20 | 20 | 30 | 30 | 35 | 35 | 35 | 35 | 35 | |
| ( m³.min) | - | 23 | 23 | 23 | 23 | 100 | 145 | 145 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | |||
| Variable Speed Screw Air Compressor | ||||||||||||||||||
| Model | SGV 06 |
SGV 08 |
SGV 11 |
SGV 15 |
SGV 18 |
SGV 22 |
SGV 30 |
SGV 37 |
SGV 45 |
SGV |
SGV 75 |
SGV 90 |
SGV 132 |
SGV 160 |
SGV 185 |
SGV 220 |
SGV 250 |
|
| Capacity/Pressure | 0.85 / 0.7 | 1.2 / 0.7 | 1.7 / 0.7 | 2.4 / 0.7 | 3.1 / 0.7 | 3.8 / 0.7 | 5.2 / 0.7 | 6.4 / 0.7 | 8.0 / 0.7 | 10.5 / 0.7 | 13.6 / 0.7 | 16.3 / 0.7 | 24.8 / 0.7 | 28.5 / 0.7 | 32.5 / 0.7 | 38.6 / 0.7 | 43.9 / 0.7 | |
| (m³.min/Mpa) | 6.1 / 0.8 | 7.7 / 0.8 | 9.8 / 0.8 | 13.3 / 0.8 | 16.0 / 0.8 | 24.0 / 0.8 | 27.0 / 0.8 | 30.2 / 0.8 | 36.4 / 0.8 | 42.5 / 0.8 | ||||||||
| 0.78 / 0.8 | 1.1 / 0.8 | 1.6 / 0.8 | 2.2 / 0.8 | 2.9 / 0.8 | 3.5 / 0.8 | 5.0 / 0.8 | 5.7 / 1.0 | 7.0 / 1.0 | 8.7 / 1.0 | 11.6 / 1.0 | 14.6 / 1.0 | 20.6 / 1.0 | 23.2 / 1.0 | 27.0 / 1.0 | 33.1 / 1.0 | 38.8 / 1.0 | ||
| 0.65 / 1.0 | 0.95 / 1.0 | 1.4 / 1.0 | 2.0 / 1.0 | 2.7 / 1.0 | 3.2 / 1.0 | 4.3 / 1.0 | 5.1 / 1.3 | 5.8 / 1.3 | 7.5 / 1.3 | 9.8 / 1.3 | 12.3 / 1.3 | 16.5 / 1.3 | 19.7 / 1.3 | 22.5 / 1.3 | 30.5 / 1.3 | 34.6 / 1.3 | ||
| 0.5 / 1.3 | 0.8 / 1.3 | 1.2 / 1.3 | 1.7 / 1.3 | 2.2 / 1.3 | 2.9 / 1.3 | 3.7 / 1.3 | 37 | 45 | 55 | 75 | 90 | 132 | 160 | 185 | 220 | 250 | ||
| Motor | KW | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 50 | 60 | 75 | 100 | 125 | 180 | 220 | 250 | 300 | 340 |
| HP | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 70±2 | 72±2 | 73±2 | 75±2 | 75±2 | 75±2 | 75±2 | 78±2 | 78±2 | 78±2 | |
| Noise dB(A) | 65±2 | 66±2 | 68±2 | 68±2 | 69±2 | 69±2 | 69±2 | G1 1/2 | G1 1/2 | G2 | G2 | G2 | DN65 | DN80 | DN80 | DN100 | DN100 | |
| Pipe Diameter | G3/4 | G3/4 | G3/4 | G3/4 | G11/4 | G11/4 | G11/4 | 760 | 845 | 1350 | 1420 | 1750 | 3100 | 3500 | 3500 | 4500 | 4800 | |
| Weight(kg) | 210 | 210 | 365 | 365 | 525 | 550 | 610 | 1300 | 1300 | 1650 | 1700 | 1700 | 2550 | 3000 | 3000 | 3250 | 3250 | |
| Dimension | L(mm) | 750 | 750 | 950 | 950 | 1100 | 1100 | 1100 | 1000 | 1000 | 1350 | 1550 | 1550 | 1650 | 1800 | 1800 | 1980 | 1980 |
| W(mm) | 650 | 650 | 800 | 800 | 1000 | 1000 | 1000 | 1350 | 1350 | 1500 | 1600 | 1600 | 2000 | 2050 | 2050 | 1900 | 1900 | |
| H(mm) | 825 | 825 | 1130 | 1130 | 1240 | 1240 | 1240 | 180 | 191 | 320 | 330 | 400 | 450 | 500 | 600 | 900 | 900 | |
| Cooling air Flow | 23 | 23 | 91 | 91 | 100 | 100 | 100 | - | 3 | 5 | 5 | 7 | 10 | 10 | 12 | 20 | 20 | |
| ( m³/min) | - | 23 | 23 | 23 | 23 | 100 | 100 | 100 | 145 | 145 | ||||||||
Related Products
FAQ
-What checking/controlls do you do before shipping out the machines?We will test pressure,airflow,oil leakage,all parts assembled tight, Vibration performance and temperature before packed.
-What is the rotor speed for the air end?
2980rmp.
-Can change the voltage to 415v/220v/575v/6000v, 50HZ/60HZ?
Yes, it can changed.
-Can you offer both air cooled and water cooled?
Yes, we can.
-Can you offer two stage,four stage IP54 motor?
Yes, we can offer.
-What is brand of the inverter?
Using Holip/Yisit/Huichuang,Price will be higher if use ABB/SIEMENS/TECO brand.
-Will you use rubber pipe for air and oil system?
Use steel hard and flexible pipe.
-Which kind of oil will you used for?
46#mineral oil.
-Do you offer touch control panel,Remote monitoring?
Yes,offered.
