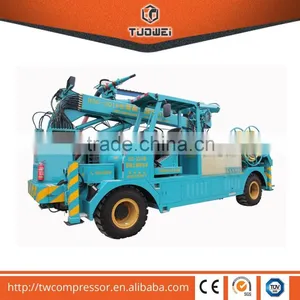

China Concrete Mixer Shotcrete Machine Price
US$ 154,000 - 308,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Tuowei
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tunnel Mining Construction Wet Shotcrete MachineUS$ 154,000 - 308,000MOQ: 1 Piece -
Concrete Shotcrete Machine Price , Shotcrete Machines Used for TunnelUS$ 154,000 - 308,000MOQ: 1 Piece
-
Wet Shorcrete Machine 8 Cubic Meters Concrete Mixer TruckUS$ 154,000 - 308,000MOQ: 1 Piece
-
Underground Mine Rotary Geotechnical Drilling RigUS$ 260,000 - 270,000MOQ: 1 Piece
-
Underground Borehole Drilling Rig for Geological ExplorationUS$ 260,000 - 270,000MOQ: 1 Piece
Condition
New
Place of Origin
Guangdong, China
Brand Name
Tuowei
Model Number
THSC-3016
Usage
Other
Voltage
380V/50HZ
Power(W)
92kw
Dimension(L*W*H)
8100*2730*3250
Weight
17200kgs
Certification
ISO9001
Warranty
1year
After-sales Service Provided
Overseas third-party support available
China concrete mixer shotcrete machine price
Features:
1.a generous amount, large bore, long stroke concrete injection pump, high reliability and adaptability
2.spray robot injection range (height, width and depth are larger)
3.synchronous accelerator add system adopts imported hose pump, hydraulic motor, electric proportional valve regulating the flow speed to achieve the purpose of regulating traffic
4.use of electric screw air compressors, flow 11.5 ~ 13.6m3 / min, pressure 0.8Mpa, motor power 65kw or 75kw
5.with the overall chassis rigidity structure, closed hydrostatic travel systems, CVT, closed brake, four-wheel drive, 4 to rotate, two-way driving. Adopt joint venture brand engine and imported hydraulic components.
6.reliable electrical system design, components are imported brand-name products, all the operations can be sprayed concrete on the remote centralized operation by one person.
7.the series 3016A-type dual power to be realized jet models, both diesel engines used to drive travel system, the machine can also drive all systems
8.a single power injection model (3016) in the absence of power can also use the power of the injected diesel engine robot at a slower speed to achieve motion to be driven concrete pump material cylinder piston and S pipe swing cylinder manually
9.the machine is equipped with two sets of water cleaning system
This series of wet concrete shotcrete machine is a world-class product design wet spraying machine, a high-end product of wet spraying machine, its functional diversity, adapt to a wide range. Its performance is stable and reliable, large capacity injection, high efficiency, good spray effect, nimble convenient, self-ability. More suitable for larger sections and requires a large amount of sprayed concrete and sprayed concrete needs efficient tunnel.
| Item | Unit | THSC-3016 | THSC-3016A | THSC-2815 | |
| Machine Parameter |
L*W*H | mm | 8100×2730× 3250 |
8100×2730× 3250 |
7800×2530× 328 0 |
| Weight | kg | ||||
| 17200 | 17600 | 14500 | |||
| Boom leg parameters |
Boom formal structure |
The main arm swing, telescopic spray arm rotation |
|||
| Jet vertical height |
m | 16 | 16 | 15 | |
| Jet horizontal width |
m | 2×14 | 2×14 | 2×13 | |
| Injection depth | m | 8 | 8 | 8 | |
| Boom pitch angle |
. | -30°~ +60° | -30°~ +60° | -30°~ +60° | |
| Arm pitch angle | . | +60°~-30° | +60°~-30° | +60°~-30° | |
| Sprinklers Back Corner |
. | 360° | 360° | 360° | |
| Head swing angle |
. | 240° | 240° | 240° | |
| Front leg span | mm | 3620 | 3620 | 3220 | |
| Job-driven approach |
Proper functioning of the motor drive, diesel-powered boom to a sudden power outage and wash away |
Motor and diesel hybrid | Proper functioning of the motor drive, diesel-moving and can discharge cleaning and retractable boom |
||
| Rated motor power |
kW | 59 | 55 | 59 | |
| Motor operating voltage / frequency |
V/Hz | 380/50 | 380/50 | 380/50 | |
| Engine rated power | kW | 92 | 92 | 93 | |
| Pumping system parameters |
Theoretical displacement | m3/h | 30 | 30 | 28 |
| Theoretical commutation frequency |
17 | 17 | 23 | ||
| System pressure | Mpa | 23 | 23 | 23 | |
| Outlet pressure | Mpa | 7 | 7 | 7 | |
| Conveying cylinder bore |
mm | Φ180 | Φ180 | Φ160 | |
| Delivery cylinder stroke |
mm | 1200 | 1200 | 1000 | |
| Diameter nozzle mouth |
mm | Φ45 | Φ45 | Φ45 | |
| Chassis parameters |
Number of spokes | mm | 1830 | 1830 | 1830 |
| Wheelbase | mm | 4500 | 4500 | 4100 | |
| Front and rear axle drive mode |
- | 4×4 | 4×4 | 4×4 | |
| Fuel tank capacity | L | 240 | 200 | 190 | |
| Maximum speed | Km/h | 22 | 22 | 22 | |
| Maximum grade | % | 40 | 40 | 40 | |
| Minimum ground clearance |
mm | 450 | 450 | 450 | |
| Minimum turning radius |
m | 5.5 | 5.5 | 5 | |
| Braking distance | m | ≤10 | ≤10 | ≤10 | |
| Auxiliary system parameters |
Cable | m | 100 | 100 | 100 |
| Compressor power |
kW | ||||
| 75 | 75 | 55 | |||
| Displacement compressor | m3/min | 11.5 | 11.5 | 10.7 | |
| Working pressure compressor |
Mpa | 0.8 | 0.8 | 0.75 | |
| Admixture maximum output |
L/h | 800 | 800 | 800 | |
| Admixture Systems Pressure |
Mpa | 1 | 1 | 1 | |
| Accelerator tank capacity |
L | 1000 | 1000 | 1000 | |
-What checking/controlls do you do before shipping out the machines?We will test pressure,airflow,oil leakage,all parts assembled tight, Vibration performance and temperature before packed.
-What is the rotor speed for the air end?
2980rmp.
-Can change the voltage to 415v/220v/575v/6000v, 50HZ/60HZ?
Yes, it can changed.
-Can you offer both air cooled and water cooled?
Yes, we can.
-Can you offer two stage,four stage IP54 motor?
Yes, we can offer.
-What is brand of the inverter?
Using Holip/Yisit/Huichuang,Price will be higher if use ABB/SIEMENS/TECO brand.
-Will you use rubber pipe for air and oil system?
Use steel hard and flexible pipe.
-Which kind of oil will you used for?
46#mineral oil.
-Do you offer touch control panel,Remote monitoring?
Yes,offered.
-What is the rotor speed for the air end?
2980rmp.
-Can change the voltage to 415v/220v/575v/6000v, 50HZ/60HZ?
Yes, it can changed.
-Can you offer both air cooled and water cooled?
Yes, we can.
-Can you offer two stage,four stage IP54 motor?
Yes, we can offer.
-What is brand of the inverter?
Using Holip/Yisit/Huichuang,Price will be higher if use ABB/SIEMENS/TECO brand.
-Will you use rubber pipe for air and oil system?
Use steel hard and flexible pipe.
-Which kind of oil will you used for?
46#mineral oil.
-Do you offer touch control panel,Remote monitoring?
Yes,offered.
