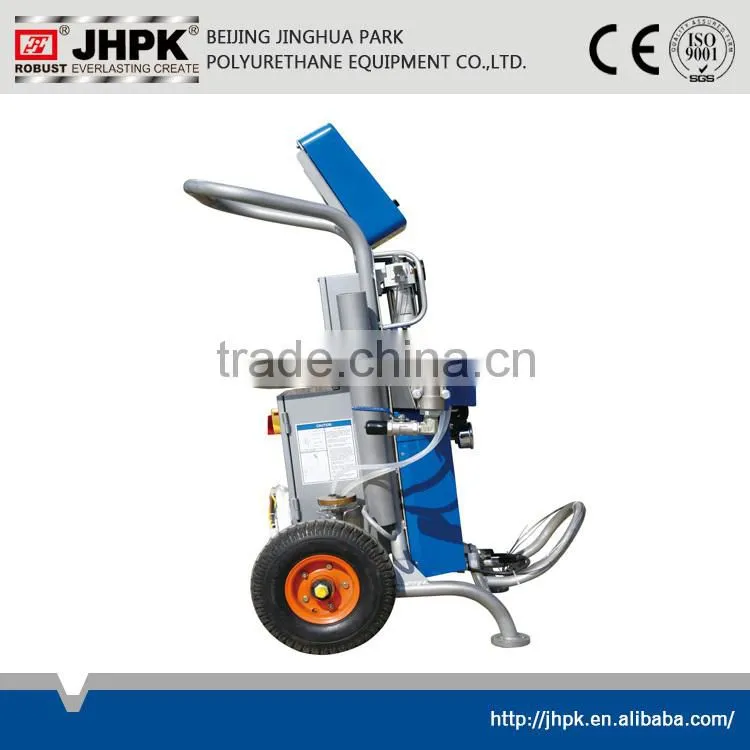

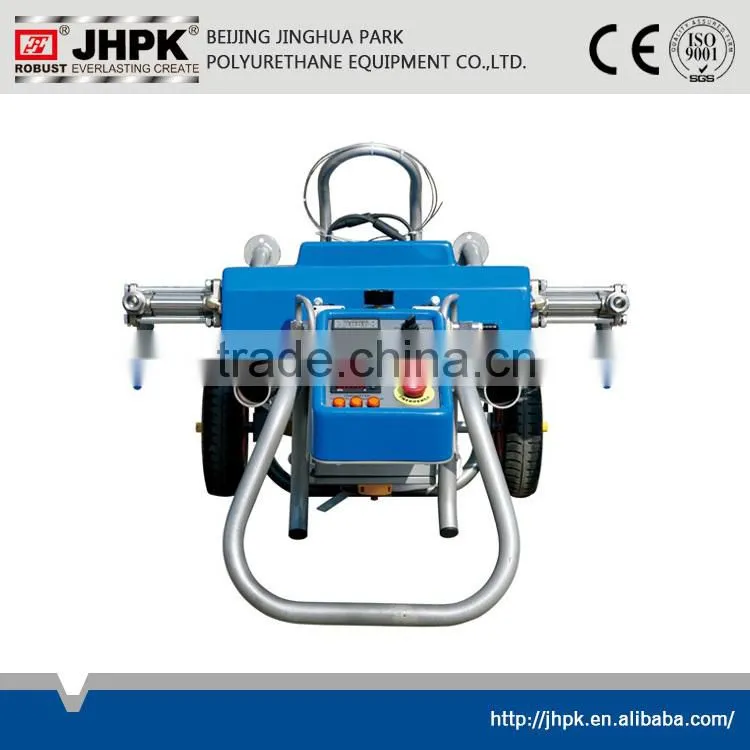

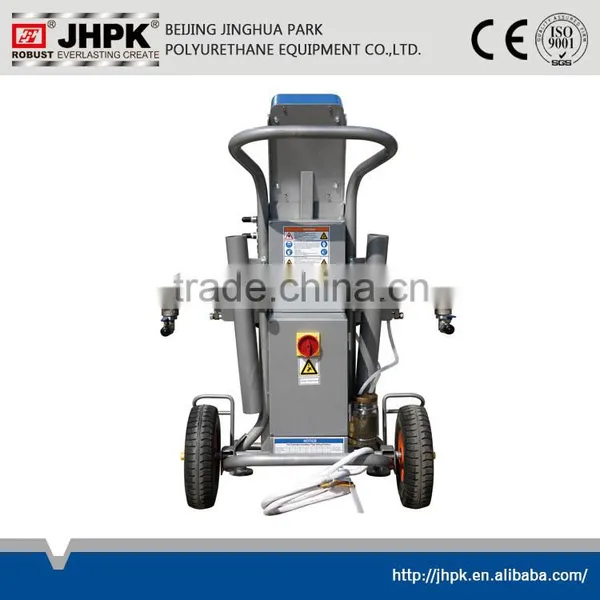

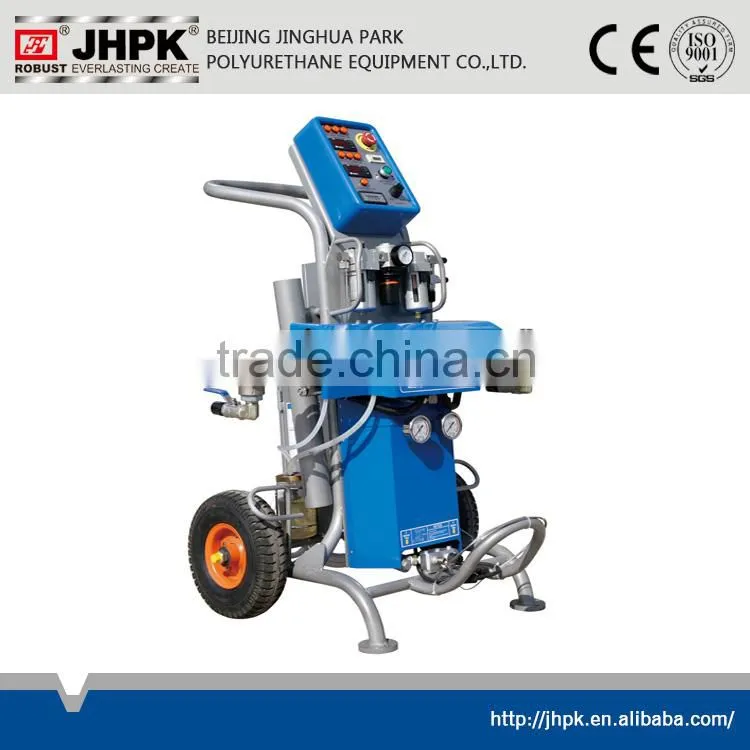

PU coldroom Insulation equipment
- 9999 Set / Sets per Month
- Tianjin
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Paint |
Application: | Other, insulation | Additional Capabilities: | Coating | Place of Origin: | Beijing, China |
Brand Name: | JHPK | Model Number: | H30 | Max. Loading Capacity: | 250kg |
Voltage: | 380V/50Hz | Power(W): | 4500W*2 or 6000W*2 | Dimension(L*W*H): | 1000*900*1550mm |
Certification: | CE, ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
The equipment has obtained CE certification, safe and environmental protection.
Having the proprietary property rights in design and production, several national patents have been applied and approved.
The perfect coaxial structure design of the horizontal booster pump reduces greatly the abrasion of the sealing. There is no pressure difference during operation and the commuting pressure fluctuation value is ideal and stable.
The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.
The delicate coupling structure is easy for the dismounting of the booster pump during the maintenance. When necessary, the complete unilateral raw material pump can be replaced to change the proportion of the raw material.
The pneumatic commuting control assembly is simple in structure and reliable in operation, and enables the pump body operating normally during the lack of electricity.
The design and application of the reset function when shut down realizes the dual protection.
The dual filters of the equipment for both high and low pressure and the filter of the nozzle realize the triple filtration protection for the raw material and reduce the blocking.
The special armoured temperature sensor inside the heater can collect the temperature signal at any time, hence the overshooting value for heating is well controlled.
The flagelliform armoured temperature sensor inside the heating tube makes the collection of the temperature data more sensitive and accurate without signal losing.
The heating tubes adopt special technology for winding the heating copper belt. The heating is even and reliable. The tubes are safe and durable with full closed water-proof connection, as well as the heat insulation layer and anti-abrasion layer.
The accurate action counter makes it easy to have the knowledge of material consumption when stop working.
The compact control panel and the operation hint of key parts make it easy for fast handling and operation.
The equipment frame uses the solid rubber wheel dispensing with air filling which is more suitable for the construction site.
The equipment is of humanization design with low weight, small volume. It is convenient and flexible and can contain 4 groups of heating tubes (90 meters). It can be easily shifted by one person.
Technical Data:
Ratio of raw materials | 1:1 standard fixed ratio (changeable ratio can be selected) |
Viscosity range of raw material | 200-1000 CPS (under operation temperature) |
Output of raw materials | 2-10 kg/min |
Heating temperature range | 0℃~70℃ |
Electrical source | 3 phase 4 wire, 380V 50HZ 14A×3+16A |
Compressed air | 0.5~0.8Mpa 1m3/min |
Output pressure of raw material per group | 5~13.8Mpa |
Standard Configuration:
Main equipment | 1set |
Nozzle | 1pc |
Heating tube per group | 15 meter (standard) |
Max. length (optional) | 90 meter |
Short tube with nozzle per group | 1.5 meter |
Feeding pump | 2 sets |
The equipment has obtained CE certification, safe and environmental protection.
Having the proprietary property rights in design and production, several national patents have been applied and approved.
Beijing Jinghua Park Polyurethane Equipment Co.Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China.JHPK specializes in developing,manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system.With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
