Auto diesel engine towable trailer rotary screw 10 bar mobile compressor

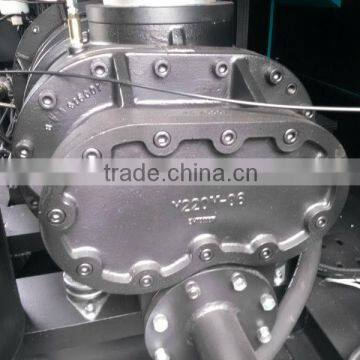

1.Air End: Patented line of large-diameter rotor design. Air end and diesel is directly connected through high-elastic coupling without increasing gear. Speed of air end is consistent with the diesel engine which make it higher efficiency, better reliablility and longer life.

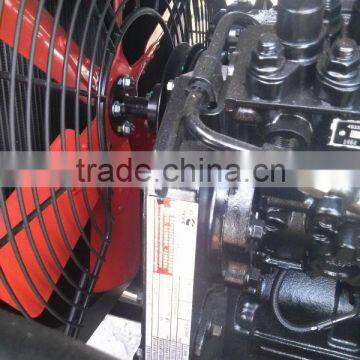

2.Diesel Engine: Using the famous diesel engine. like the Cummins,Yuchai and so on. Strong power, reliable operation, fuel saving and low-level emissions and noise.
3.Gas Control System: It is simple and reliable. Inlet rate from 0 to 100% and be adjusted automatically depending on the gas consumption. Automatically adjust the engine throttle to save diesel fuel.
4.Microcomputor Intelligent Control: Air compressor discharge pressure, exhaust gas temperature, engine speed, oil pressure, water temperature and fuel tank level operating parameters with automatic alarm and shutdown protection.
5.Multi-Stage Air Filter and Large Oil-Water Cooler: It is not only suitable for dusty work environment, but it is suitable for high temperature and high altitude environment.
6.Parts and Components: They can be maintained within the accesible range which is convenient and easy.
7.Covenient: Easy to move in rough terrain.Each compressor has lifting rings on the top for safe hoisting and transportation.
| Single Stage Compression Portable Diesel Screw Air Compressor | ||||||
Model |
Capacity (Cfm) |
Pressure (Psi) |
Diesel Brand | Diesel Engine Type | Weight(kg) | Diemension(mm) |
| SYC-3.6/7 | 127 | 102 | YTO | YND485G,22KW | 652 | 2630*1318*1280 |
| SYC-5/7 | 177 | 102 | YTO | YSD490G,32KW | 880 | 2821*1470*1361 |
| SYC-6/7 | 212 | 102 | YUCHAI | YCD4B22-95,70KW | 1400 | 3750*1820*1700 |
| SYC-7.5/7 | 265 | 102 | YUCHAI | YCD4B22-95,70KW | 1850 | 3900*1920*1700 |
| SYC-8.5/14 | 300 | 203 | CUMMINS | 4BTA3.9-C125,93KW | 1900 | 3750*1920*1900 |
| SYC-9/7 | 318 | 102 | YUCHAI | YC4D95Z-K20Y,70KW | 1850 | 3900*1920*1700 |
| SYC-9/14.5 | 318 | 210 | YUCHAI | YC6B150Z-K20,110KW | 2380 | 4080*1980*2350 |
| SYC-10/7 | 353 | 102 | YUCHAI | YC4D95Z-K20Y,70KW | 1900 | 3900*1920*1700 |
| SYC10/10 | 353 | 145 | CUMMINS | 4BTA3.9-C125,93KW | 1900 | 3900*1920*1900 |
| SYC-10/13 | 353 | 189 | YUCHAI | YC6B150Z-K20,110KW | 2050 | 4080*1980*2350 |
| SYC-12/7 | 424 | 102 | CUMMINS | 4BTA3.9-C125,93KW | 2050 | 3900*1980*1900 |
| SYC-12/10 | 424 | 145 | YUCHAI | YC6B150Z-K20,110KW | 2380 | 4080*1980*2350 |
| SYC-12/12 | 424 | 174 | CUMMINS | 6BT5.9-C160,118KW | 2380 | 4080*1980*2350 |
| SYC-12/13 | 424 | 189 | CUMMINS | 6BTA5.9-C180,132KW | 2750 | 3450*1520*2350 |
| SYC-13/13 | 459 | 189 | CUMMINS | 6BTA5.9-C180,132KW | 2750 | 3350*1520*2220 |
| SYC-13/17 | 459 | 247 | CUMMINS | 6CTA8.3-C215,158KW | 3400 | 3780*1980*2500 |
| SYC-15/13 | 530 | 189 | YUCHAI | YC6A240-20,177KW | 3350 | 3380*1650*2500 |
| SYC-16/13 | 565 | 189 | CUMMINS | 6CTA8.3-C215,158KW | 3350 | 3650*1800*2500 |
| SYC-17/7 | 600 | 102 | CUMMINS | 6BTA5.9-C180,132KW | 3350 | 3380*1640*2350 |
| SYC-17/14.5 | 600 | 210 | CUMMINS | 6CTA8.3-C260,194KW | 3400 | 3980*1800*2450 |
| SYC-18/17 | 636 | 247 | CUMMINS | 6CTA8.3-C260,194KW | 3400 | 3980*1800*2450 |
| SYC-19/14.5 | 670 | 210 | CUMMINS | 6CTA8.3-C260,194KW | 3400 | 3980*1800*2450 |
| SYC-22/8 | 777 | 116 | CUMMINS | 6CTA8.3-C260,194KW | 4000 | 4580*1950*2600 |
| SYC-22/14 | 777 | 203 | CUMMINS | 6CTA8.9-C325,239KW | 4500 | 4580*1950*2600 |
| SYC-27/10 | 953 | 145 | CUMMINS | 6LTAA8.9-C325,239KW | 4500 | 4580*1950*2600 |
| SYC-32/10 | 1130 | 145 | CUMMINS | 6LTAA8.9-C360,270KW | 4500 | 4600*1950*2850 |
|
Two Stages Compression Portable Diesel Screw Air Compressor | ||||||
| SYC-19.5/19 | 689 | 276 | CUMMINS | 6CTA8.3-C260,194KW | 3700 | 3650*1800*2500 |
| SYC-22/20 | 777 | 290 | CUMMINS | 6LTA8.9-C360,265KW | 4500 | 4600*1950*2850 |
| SYC-26/20 | 918 | 290 | CUMMINS | 6LTA8.9-C360,265KW | 4850 | 4600*1950*2850 |
| SYC-27/22 | 953 | 319 | CUMMINS | NTA855-P400 | 5000 | 4600*1950*2850 |
| SYC-26/25 | 918 | 362 | CUMMINS | QSZ13-C500 | 5100 | 4700*2100*2500 |
| SYC-21/35 | 741 | 507 | CUMMINS | QSZ13-C500 | 5100 | 4700*2100*2500 |
| SYC-33/25 | 1165 | 362 | CUMMINS | QSZ13-C550 | 5200 | 4700*2100*2500 |
| SYC-26/35 | 918 | 507 | CUMMINS | QSZ13-C550 | 5200 | 4700*2100*2500 |
Fuzhou Tuowei Mechanical&Electrical Equipment Co.,Ltd
Establish in 2010, Fuzhou Tuowei Mechanical &Electrical Equipment Co.,Ltd is a professional high tech enterprise. Located in Fuzhou, Fujian.
We are fully committed to provide technologically advanced screw air compressors. We have partnered with leading opetators and manufactors in this industry. Our company professionally supplies rotory screw air compressor, diesel portable compressor, oil free compressor, drilling rig, air dryer and spare parts. We had established a supply-and-distribution network that consists of well-know dealer and manufactorers in the air compressor business. The equipment is widely implemented in industry such as textile, steel, mining, railway and municipal engineering.
1. World advanced screw air compressor the features of high efficiency low maintenance and lifetime.
2. Intelligent control system to automatically control the start&stop on the machine and adjust the air capacity.
3. Complete production fuction with fault alarm and indicatin.
4. Efficient filtering and seperating system.
5. Large oil-after cooler ensures tge machines in optimum operation temperature.
6. Energy saving and low emission in the industry.
7. Not only do we offer screw air compressors, but also we try our best to break industry monopoly to offer users the most profits.
Two years for the air end,one year for the whole machine.
We will send new parts to you for replacement within the warranty period.
