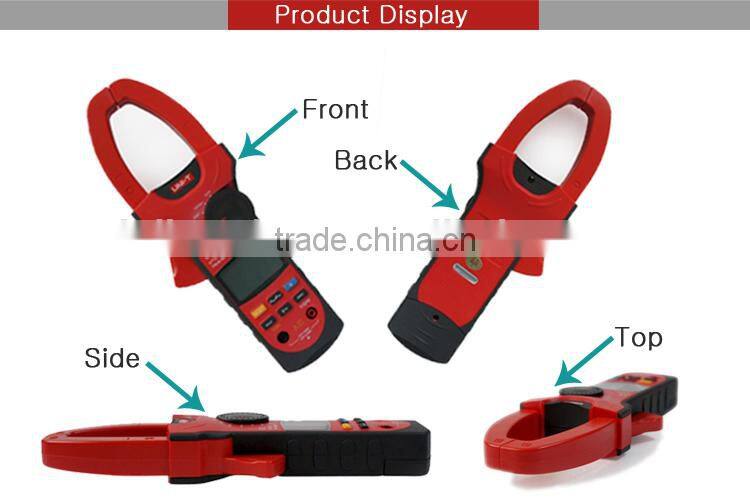

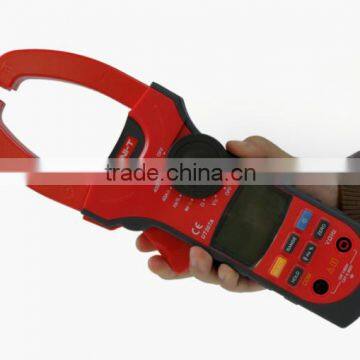

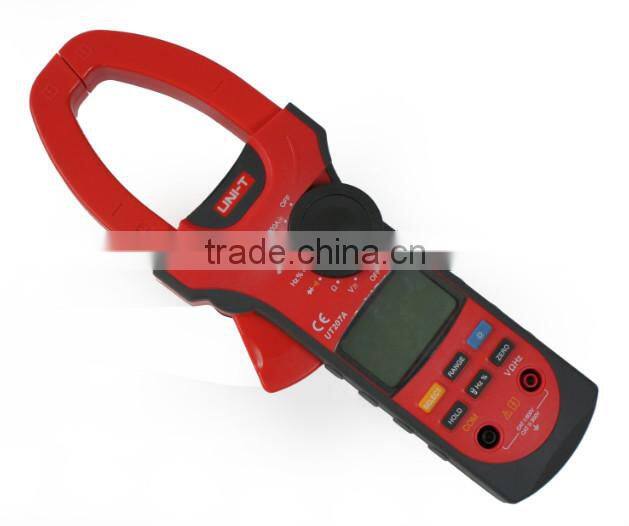

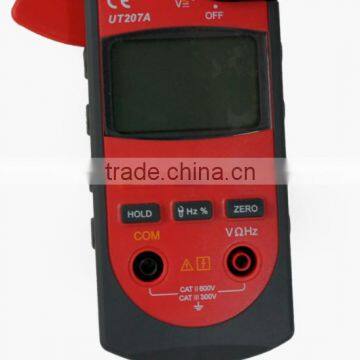

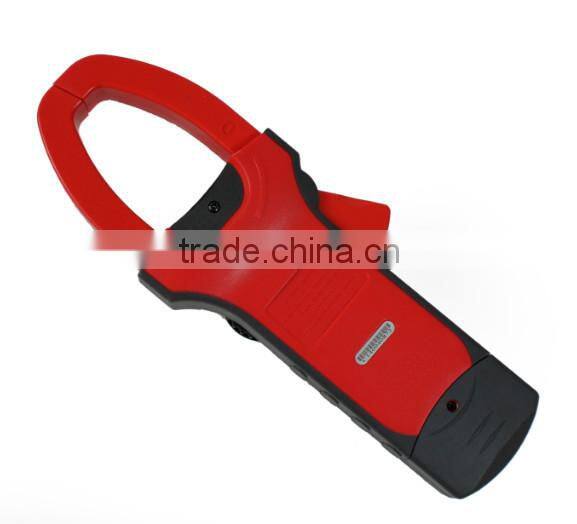

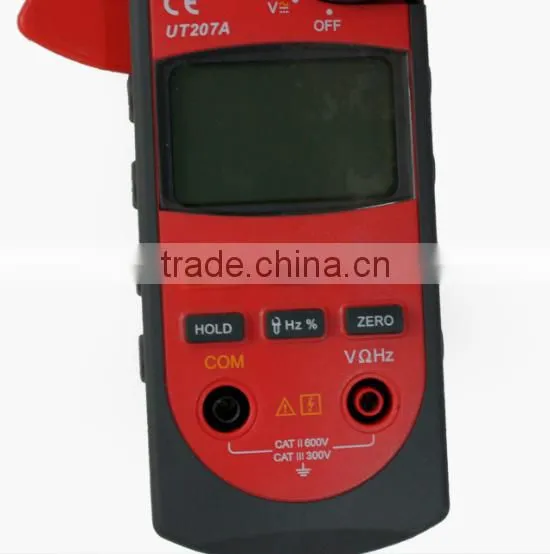

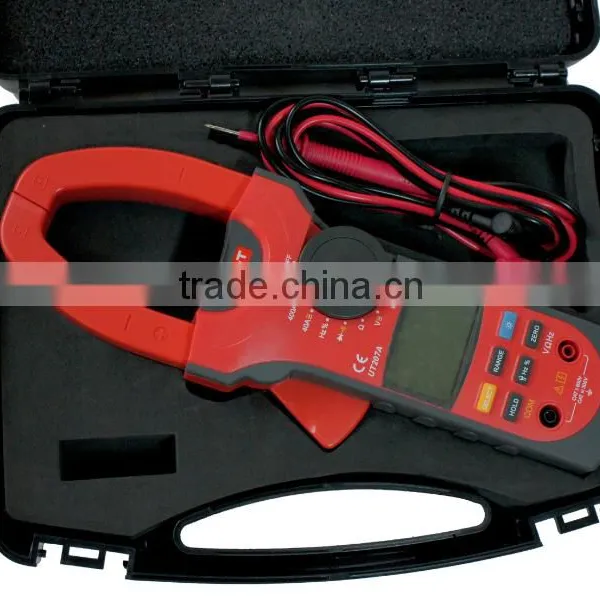

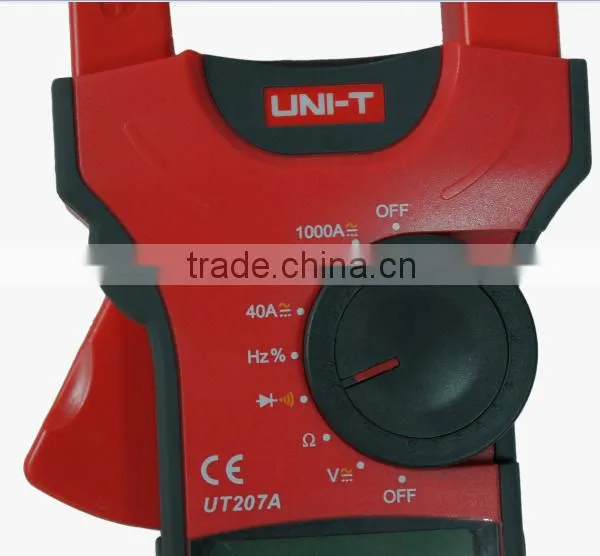

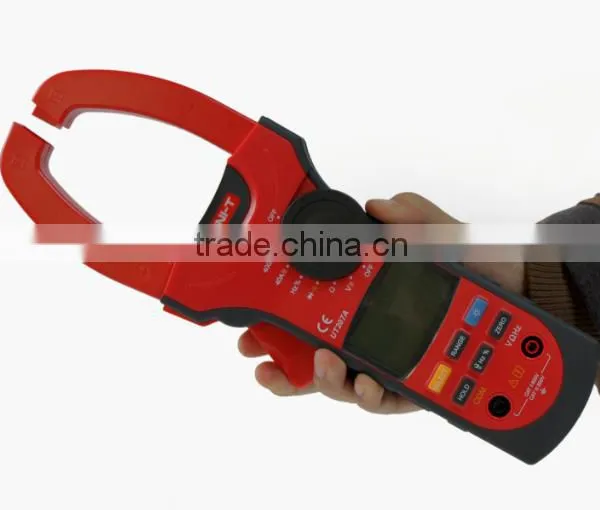

UT207A Factory Wholesale 3 3/4 1000A AC/DC Digital Clamp Meter |
The supplier of State Grid IEC156/ISO 9001:2008 |
UT207A Factory Wholesale 3 3/4 1000A AC/DC Digital Clamp Meter Description
UT207A is stable performance, safe and reliable 3 3/4 AC-DC digital clamp meter series. Whole circuit design to LSI double integral A / D converter as its core, the full range of overload protection circuit, unique design makes it the superior performance of dedicated electrical instruments.
UT207A Factory Wholesale 3 3/4 1000A AC/DC Digital Clamp Meter Technical Data
Specifications | Range | Best Accuracy | ||
Model |
| UT207A | UT208A | UT209A |
AC Current (A) | 40A/400A/1000A | ±(2%+2) | ±(2%+2) | ±(2%+2) |
DC Current (A) | 40A/400A/1000A | ±(1.5%+5) | ±(1.5%+5) | ±(1.5%+5) |
AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF |
| ±(4%+3) |
|
Frequency (Hz) | 10Hz/100Hz/1KHz/10KHz/1MHz/10MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
Temperature (°C) | -40 °C ~ 1000°C |
| ±(2.5%+3) |
|
Features | ||||
Display Count |
| 4000 | 4000 | 4000 |
Auto Range |
| √ | √ | √ |
Jaw Capacity |
| 55mm | 55mm | 55mm |
True RMS | AC Voltage/AC Current |
|
| √ |
Duty Cycle | 0.1%~99.9% | √ | √ | √ |
