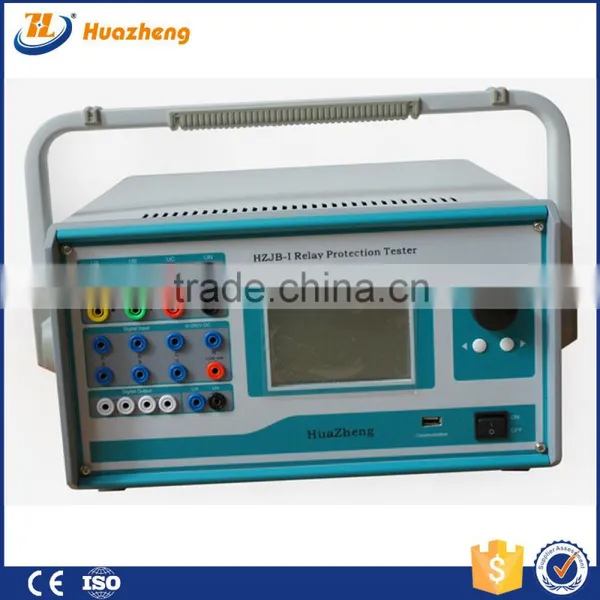

3 Phase Relay Protection Tester / Secondary Current
|
Supplier of State Grid! IEC156 ISO 9001:2008 ASTM |
|
3 Phase Relay protection Tester Features:
- Strong function of software
- The amount of switch quantity contacts is rich
- Large LCD screen
- Self-protection
- Independent DC power output
- Cost-effective
3 Phase Relay protection Teste Parameter:
- Alternating current output
Output accuracy: 0.5magnitude
Phase current output (effective value): 0~40A
Three parallel phase current output (effective value): 0~120A
Phase current value with long time under permission (effective value): 10A
Phase current maximum power output: 420VA
Three parallel phase current maximum power output: 900VA
Three parallel phase current maximum work time: 10s
Frequency range (base wave): 20~1000Hz
Harmonic frequency number: 1~20 time
- Direct current output
Output accuracy: 0.5magnitude
Current output: 0 ~ ± 10 A/each phase, 0 ~ ± 30 A/every three parallel
Maximum output of load voltage: 20v
- Alternating voltage output
Output accuracy: 0.5magnitude
Phase voltage output (RMS): 0 ~ 120v
Line voltage output (RMS): 0 ~ 240v
Phase voltage/line voltage power output: 80VA/100VA
Frequency range (base wave): 20 ~ 1000Hz
Harmonic frequency number: 1 ~ 20 times
- Direct voltage output
Output accuracy: 0.5magnitude
Phase voltage output amplitude: 0 ~ +160v
Line voltage output amplitude: 0 ~ + 320v
Phase voltage/line voltage power output: 70VA/140VA
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

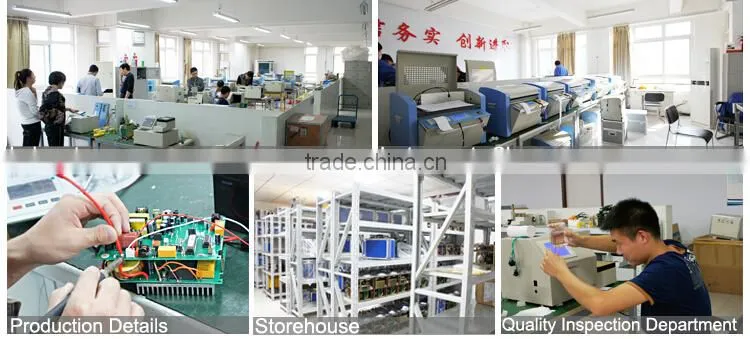

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
