Digital Earth Continuity Tester earth voltage tester soil Tester
One Introduction
Electrical equipment grounding conductor and the grounding grid , effective connection is the fundamental for the safe operation of the equipment.

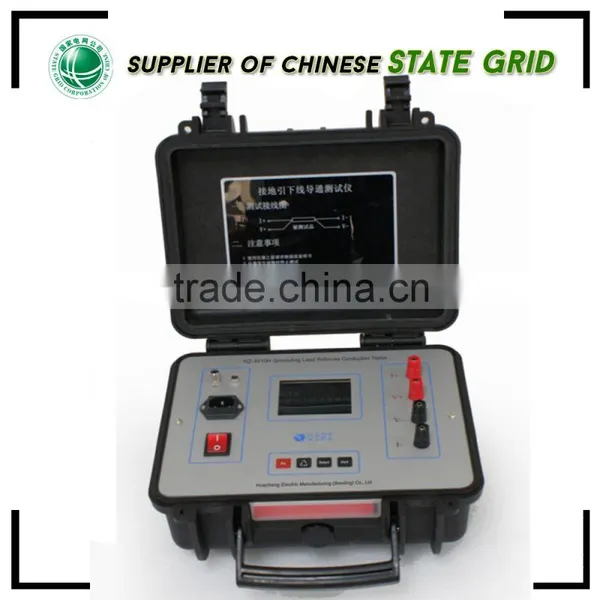

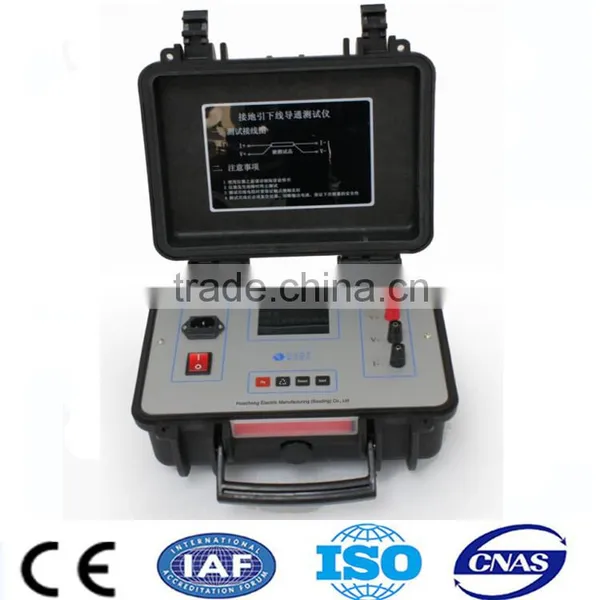

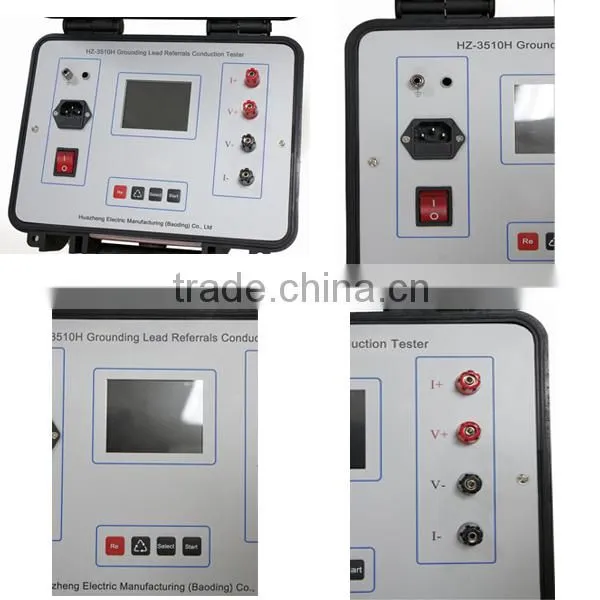

HZ-3510 Grounding Lead Referrals Conduction Tester can test the potential risk to protect the electric system.
Two Function
1 Using single-chip to control the machine,automatic and simple operation
2 Modern power technology, multigrade and wide measure range
3 Intelligent power management technology,using minimum power to reduce heat and energy
4 320X240 small pixels 65k real color LCD which can be showed under the bright light
5 Power down memory which can store 1000 test data
6 Lithium battery,built-in charger, integrate design
Three Parameters
Output Current : 1A,2A,5A,10A
Resolution : 0.1μΩ
Measurement Range :
10mΩ-6Ω (1A)
5mΩ-3Ω(2A)
1mΩ-1Ω(5A)
0.5mΩ-0.2Ω(10A)
Accuracy : 0.5%±0.2μΩ
Dimensions : 32cm×24cm×13cm
Instrument weight :2.5KG
Temperature: 0℃~40℃
Humidity: <90%RH Non-condensate
| Business Type: | Manufacturer | |
|---|---|---|
| Main Products: | Transformer DC Resistance Tester,Cable Fault Tester,Lightning Arrester Monitor Test Instrument,electric fittings,electric equipments | |
| Location: | Hebei, China (Mainland) | |
| Year Established: | 2008 | |
| Year start exporting: | 2012 | |
| Number Of Employees: | 51 - 100 People | |
| Total Revenue: | US$1 Million - US$2.5 Million | |
| Main Markets: | Domestic Market, Mid East, Africa, South America, North America | |
| Certifications: | ISO9000:2008,The high quality of good reputation consumer satisfied unit |
