Portable MOA Tester for Zinc Oxide Arrester(MOA) Testing
HZ-6820A China 20A MOA Tester Wireless 3 Phase Simultaneous Measurement |
The supplier of State Grid IEC156/ISO 9001:2008 |
HZ-6820A China 20A MOA Tester Wireless 3 Phase Simultaneous Measurement Description

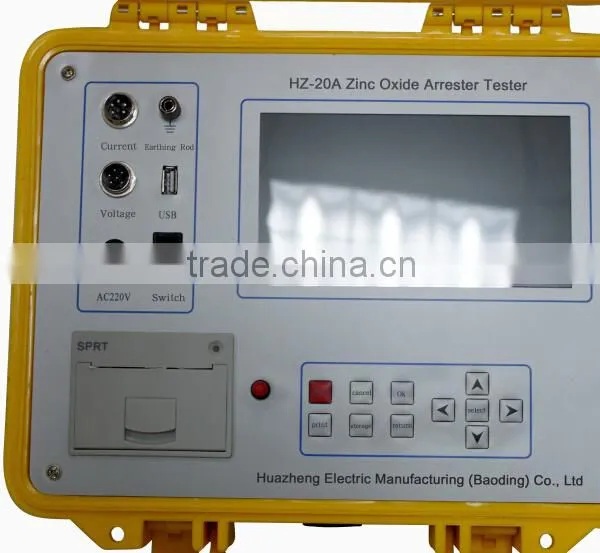

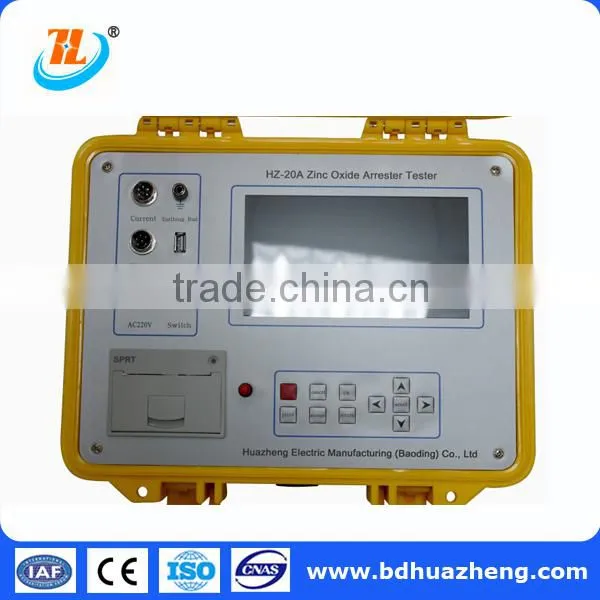

HZ-20A Zinc Oxide Arrester Tester is the device detecting electrical parameters of lightning arrester for field(site online monitoring) and laboratory test (examination reparation in power cut).
HZ-6820A China 20A MOA Tester Wireless 3 Phase Simultaneous Measurement Features
1.Remote wireless measurement.
2.Large LCD display with 800×480mm screen, clear and easy operate.
3.High accurate sampling and handling circuit,advanced Fourier harmonic analysis technology, reliable test data.
4.Adopt unique high precision sensors, directly collect input voltage and current signal.
5.Can test single or three phase in the same time.
6.RFHC peak output function.
7.Equiped with rechargeable battery(constantly work 6hours).
8.Calendar clock, micro-printer function.
9.Power-down memory.
10.USB function.
HZ-6820A 20A MOA Tester Wireless 3 Phase Simultaneous Measurement Technical Data
Measure Item |
Measure Range |
Measure Accuracy |
Total Current |
0-20mA |
±(reading×5%+5uA) |
Resistive Current |
0-20mA |
±(reading×5%+5uA) |
Capacity Current |
0-20mA |
±(reading×5%+5uA) |
Current Harmonics |
0-20mA |
±(reading×10%+10uA) |
Reference Voltage |
Valid value 100V max. |
±(reading×5%+0.5V) |
Voltage Harmonic |
Valid value 100V max. |
±(reading×10%) |
