Fully-Automatic Dielectric Strengther Teste/transformer oil bdv testing kit
oil tesster
1. transformer oil BDV test equipment Insulating oil dielectric strength tester Description
It is testing all kinds of Insulation Oil's Dielectric Strength Value.
2. transformer oil BDV test equipment Insulating oil dielectric strength tester Features
1.Automatic test system,safe and clean.

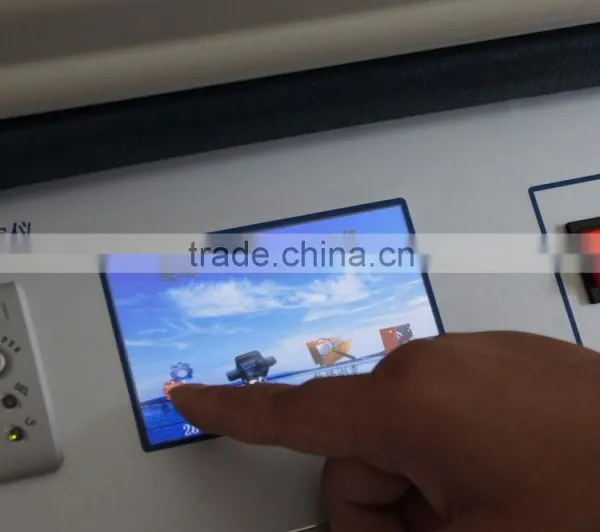

2.Large-screen LCD
3.It is suitable by the function of adjustable.
4.Equipped with over-voltage, over-current and limit protections.
5.Measured temperature and system clock.
6.RS232 interface,can connect with computer.
7.Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.
3. transformer oil BDV test equipment Insulating oil dielectric strength tester Technical Data
1. Power supply: AC220V±10% , 50 HZ 1. (Different Power Supply can be supplied.)
2. Output voltage: 0 to 60KV, 80KV, 100KV(100KV should be special designed)
3. Capacity: 1.5KVA
4. Speed of Voltage Increase:0.5~5kva/s(adjustable)
5. Standing Time: 15min (adjustable)
6. Boosting Frequency :1~6 time(s) (adjustable)
7. Wave form distortion : less than 3%
8. Time of dielectric strength:less than 10ms
9. Working Environment: Temperature: 0℃~ 45℃, humidity: max relative humidity 75%
|
|

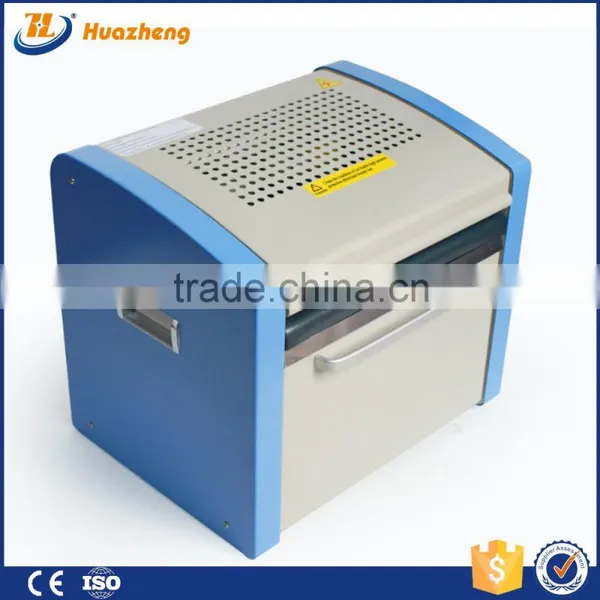

Portable transformer oil breakdown test set
We have attended Power-gen Exhibition in South Africa on July 19-21, 2016.
and the MEE Exhibition in Dubai on 1st to 3rd March 2016. And they are very successful. The follow is the photos that we attended the Power-gen Exhibition and the MEE Exhibition.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Close to Tianjin port, the transportation is convenient. our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
bdv oil tester
