Specifications
E-glass Woven Roving EWR400 FRP1.Weight: 400GSM
2.Width:1000mm
3.High strength
4.Good moldability
E-glass Woven Roving EWR400 FRP, E-glass Woven Roving, Woven Roving

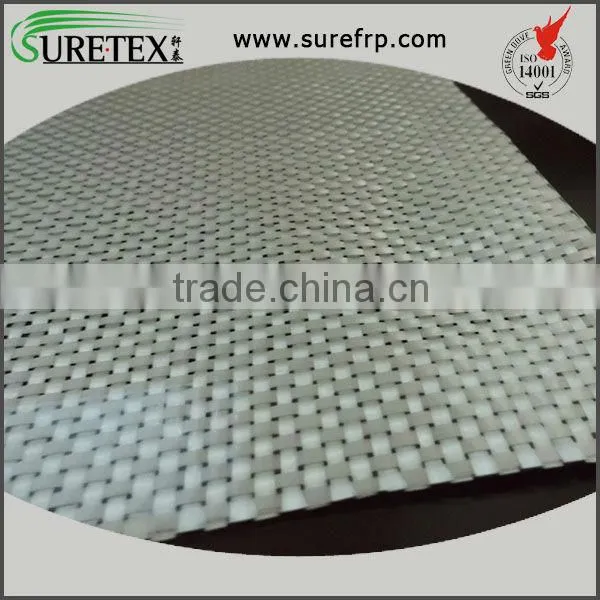

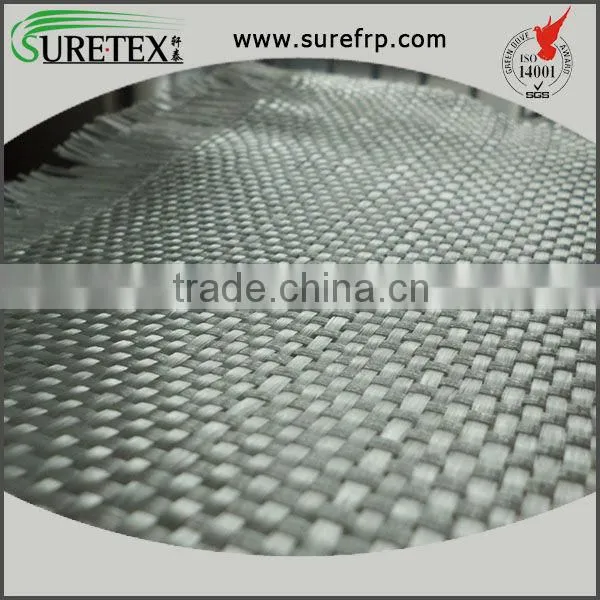

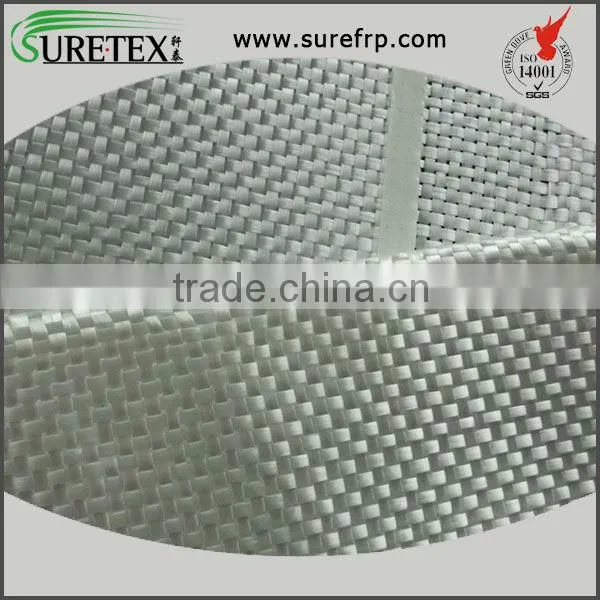

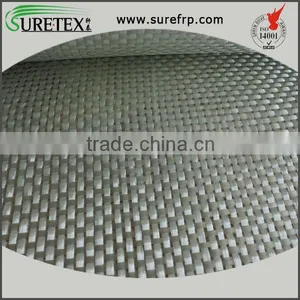

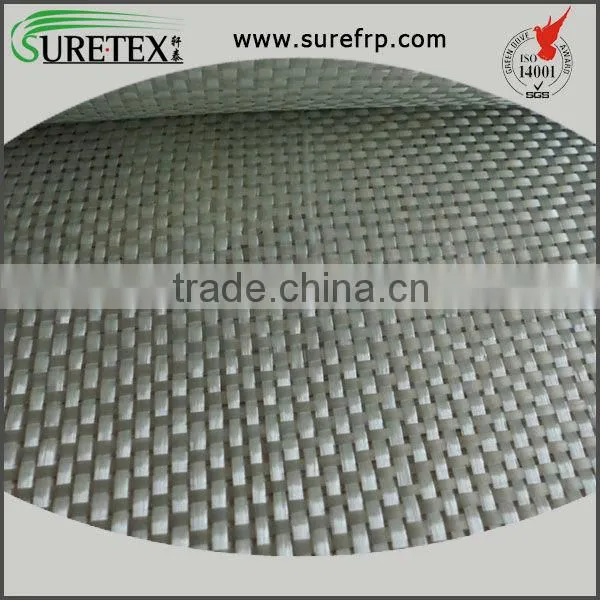

Woven roving is a bidirectional fabric made by interweaving direct roving in plain weave pattern. The raw material, E-fiberglass roving, not only makes it economical but also physical and chemical stable.
Compatible with many resin systems such as polyester, vinyl ester, epoxy and phenolic resins, E-fiberglass woven roving is a high-performance reinforced material, widely used in hand lay up and robot processes for the production of boats, fiberglass pipes, containers and sports equipment.
Features
1.Even thickness and low hairiness
2.High dimensional stability
3.Fast and complete wet in resins
4.Good moldability and excellent compatibility with many resins
5.Good transparency and high strength
6.Stable performance under moist condition
Applications
1.Elementary material of FRP with anticorrosion and insulation.
2.Fireproofing and waterproof use.
3.Mainly applied in the production of boats, fiberglass pipes, containers and sports equipment
4.Applied in the automobile parts, furniture, fiberglass reinforced plastic product, etc.
Technical Data
| Item |
Warp Density Ends/cm |
Weft Density Ends/cm |
Weight G/m2 |
| EWR270 | 46 | 41 | 270±14 |
| EWR300 | 32 | 18 | 300±15 |
| EWR360 | 32 | 18 | 360±18 |
| EWR400 | 23 | 22 | 405±20 |
| EWR500A | 22 | 20 | 504±25 |
| EWR500 | 20 | 16 | 520±26 |
| EWR580 | 26 | 22 | 580±29 |
| EWR600B | 20 | 16 | 620±31 |
| EWR600C | 28 | 20 | 600±30 |
| EWR600D | 20 | 20 | 610±31 |
| EWR800B | 20*2 | 16*2 | 850±43 |
| EWR800C | 28 | 20 | 840±42 |
| EWR800D | 20*2 | 12*2 | 847±42 |
| EWR800 | 20*2 | 15*2 | 840±42 |
|
|
|
|
|
|
Other specification:
EWR 200/270/300/400/500/600
Twill Woven Roving
If you have any questions about E-glass Woven Roving EWR400 , please feel free to contact us.
