EWR600B,E-Fiberglass Fabric

Specifications

EWR600 E-Fiberglass Fabric
1.Width:1000/1040/1270mm
2.Weight: 620gsm
3.Density:20*16 ends/10cm
4.Yarn type:E-fiberglass

EWR600B,E-Fiberglass Fabric,  E-Fiberglass Fabric,  Fiberglass Fabric

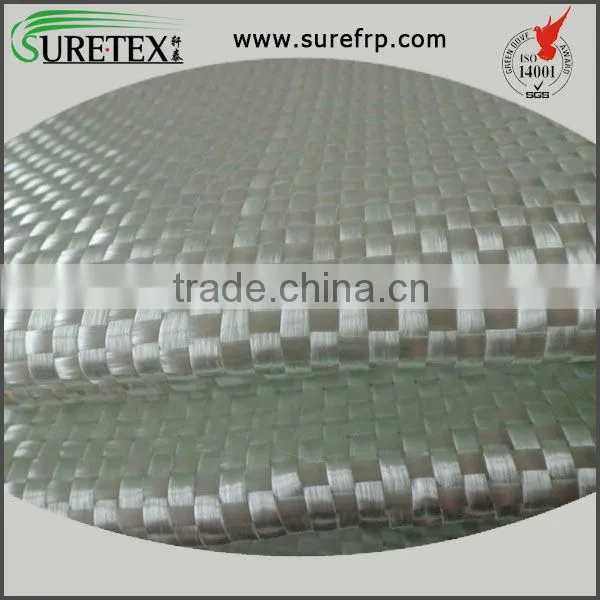

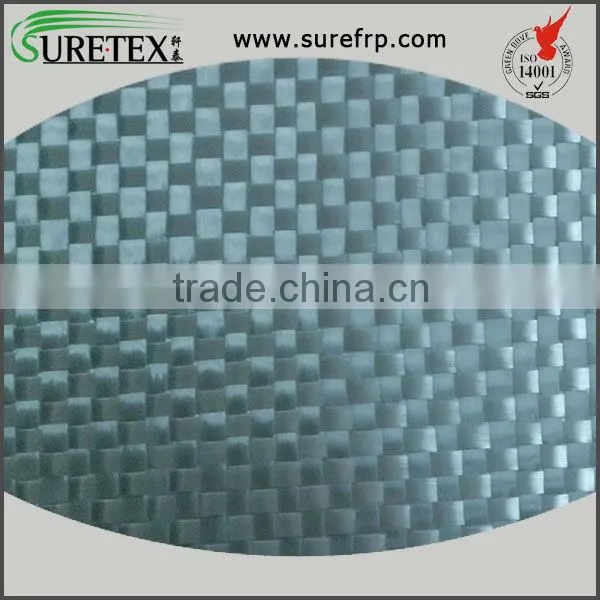

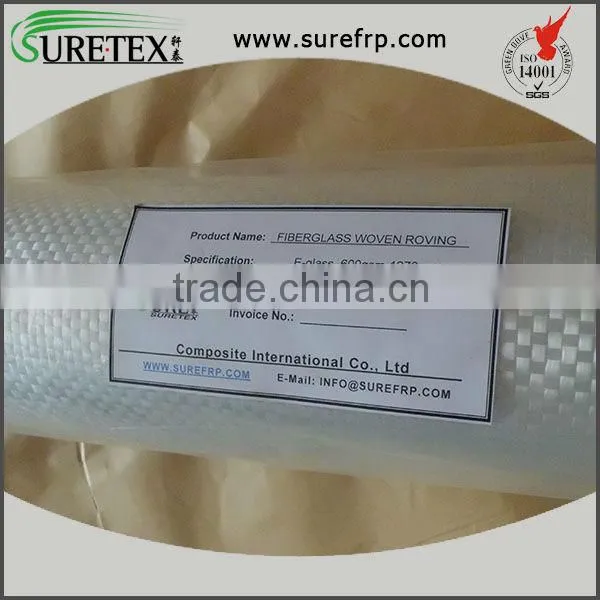

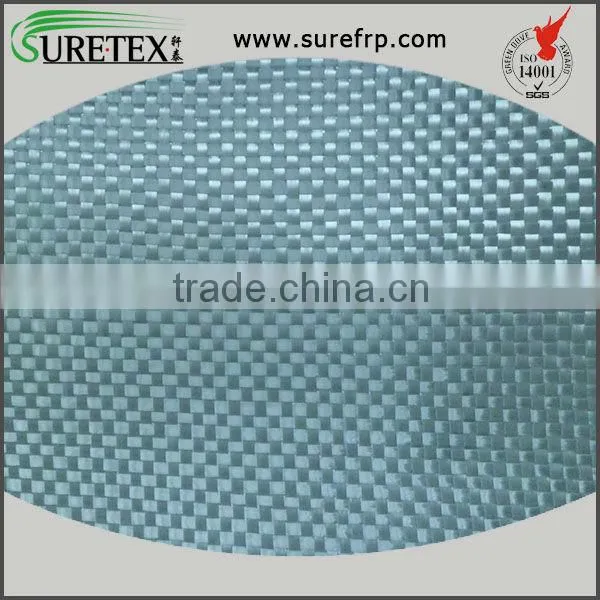

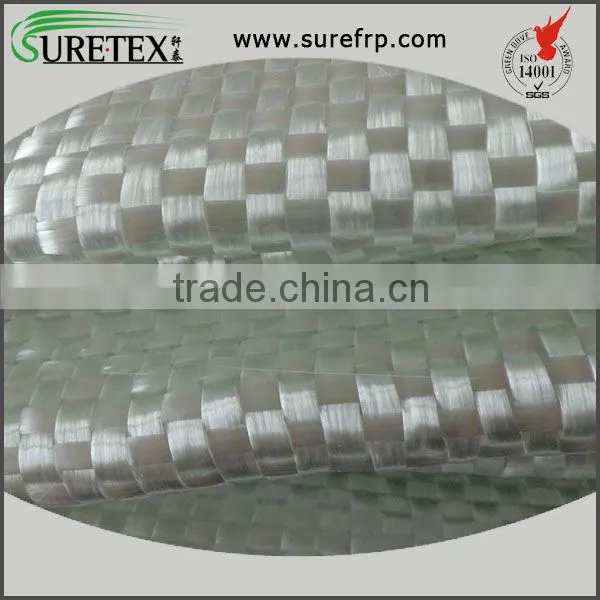

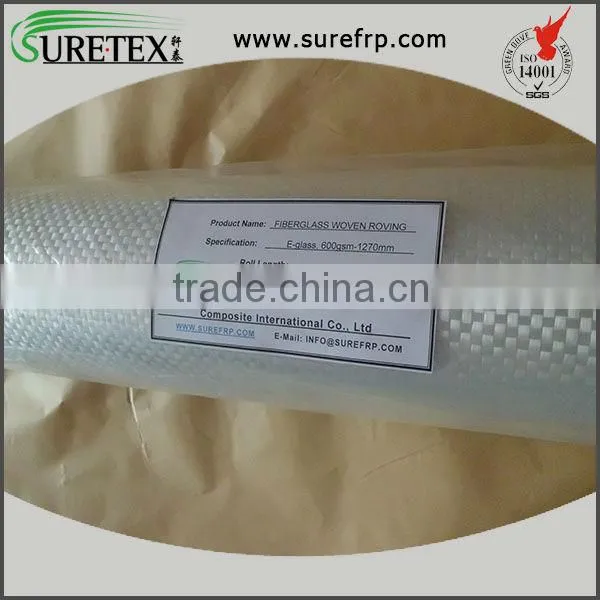

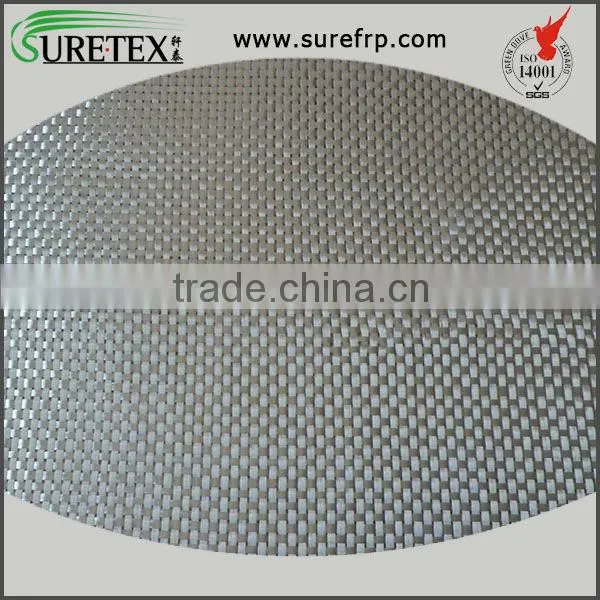

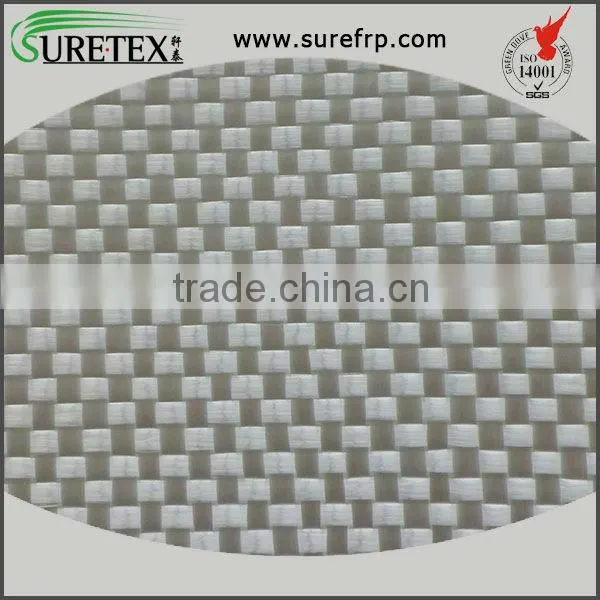

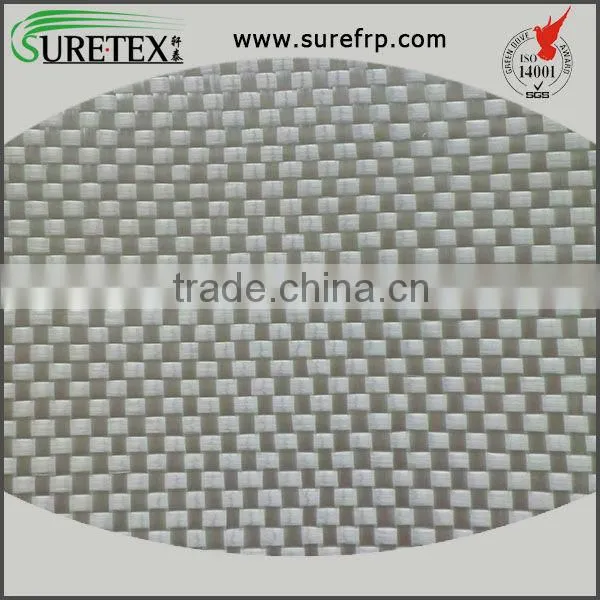

Woven roving is a bidirectional fabric made by interweaving direct roving in plain weave pattern.  The raw material, E-fiberglass roving, not only makes it economical but also physical and chemical stable.

   Compatible with many resin systems such as polyester, vinyl ester, epoxy and phenolic resins, E-fiberglass woven roving is a high-performance reinforced material, widely used in hand lay up and robot processes for the production of boats, fiberglass pipes, containers and sports equipment.



Features



1.Even thickness and low hairiness

2.High dimensional stability

3.Fast and complete wet in resins

4.Good moldability and excellent compatibility with many resins

5.Good transparency and high strength

6.Stable performance under moist condition



 Applications



1.Elementary material of FRP with anticorrosion and insulation.

2.Fireproofing and waterproof use.

3.Mainly applied in the production of boats, fiberglass pipes, containers and sports equipment

4.Applied in the automobile parts, furniture, fiberglass reinforced plastic product, etc.

Specification



Item	Warp Density   Ends/cm	Weft Density    Ends/cm	Weight   G/m2
EWR270	46	41	270±14
EWR300	32	18	300±15
EWR360	32	18	360±18
EWR400	23	22	405±20
EWR500A	22	20	504±25
EWR500	20	16	520±26
EWR580	26	22	580±29
EWR600B	20	16	620±31
EWR600C	28	20	600±30
EWR600D	20	20	610±31
EWR800B	20*2	16*2	850±43
EWR800C	28	20	840±42
EWR800D	20*2	12*2	847±42
EWR800	20*2	15*2	840±42



Other specification:

EWR  200/270/300/400/500/600

Twill Woven Roving

If you have any questions about e-fiberglass woven roving, please feel free to contact us.
