Help CenterDiscount Price 16mm Standard Steel Checker Plate Thickness Steel Sheet Cutting Machine
Related Products
-
Price of 6mm SS400 Standard Carbon Steel Checkered Plate Price per TonUS$ 450 - 520MOQ: 500 Tons -
On Sale China 2mm Thick Stainless Steel 304 Price per kgUS$ 1,500 - 1,750MOQ: 500 Tons
-
On Sale 10mm 304h Stainless Steel Plate Price per SheetUS$ 1,500 - 17,500MOQ: 500 Tons
-
On Sale 6mm Thick Mirror 430 Stainless Steel Plate 304l PriceUS$ 1,500 - 17,500MOQ: 500 Tons
-
On Sale Astm A240 410 Stainless Steel Plate Price per SheetUS$ 1,500 - 17,500MOQ: 500 Tons
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
1. Production Brief Introduction
Product |
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine |
Another Name |
checkered sheet , corridor sheet , passageway sheet , stairway sheet |
Length |
0.5-12 meters depend on requirement |
Material Grade |
SPHC,Q235B, SS400, A36,S235JR
Q195, Q215A/B, Q235A/B/C/D, Q275A/B/C/D, SS330,SS400,S M400A, Cr. C, Cr.D,S235JR ,ASTM A36
|
Standard |
AISI/ASTM/JIS/GB/DIN/EN |
Surface |
ash black, painted, galvanized |
Packing |
in bundles, strapped by strips. Or as customer’s requirement |
Application |
These products are widely used in all kinds of architecture and engineering structure,
such as the beam, ship, corridor ,passageway ,stairway ,warehouse and Other fields.
|
MOQ |
1 ton |
Trade Term |
FOB Tianjin/Shanghai, China or CIF discharging port |
Payment term |
100% L/C at sight, 30% T/T in advance, and the balance against the copy of B/L or negotiation |
Sales Mode |
Factory direct sales |
Delivery Time |
Within 10-25 days, according to quantity, asap save customer’s time |
Price |
Negotiable |
Loading capacity |
The capability for a 20" container : 24-26 tons |
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
2. Chemical Composition and Mechanical Property
| C | Mn | Si | S | P | |
| SS400 | 0.12-0.20 | 0.60-0.90 | 0.30 | 0.030 | 0.030 |
| A36 | ≤0.25 | 0.60-0.90 | <0.40 | <0.05 | <0.04 |
| Q235 | 0.12-0.20 | 0.30-0.70 | ≤0.30 | ≤0.045 | ≤0.045 |
| St37 | 0.21-0.25 | - | - | ≤0.065 | ≤0.065 |
| S235JR | ≤0.17 | ≤0.65 | ≤0.35 | ≤0.030 | ≤0.030 |
| Tensile Strength(MPa) | Yield Strength(MPa) | |
| SS400 | 400-510 | 215-245 |
| A36 | 400-550 | 250 |
| Q235 | 370-500 | 235 |
| St37 | 340-470 | 235 |
| S235JR | 360-510 | ≥225 |
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine

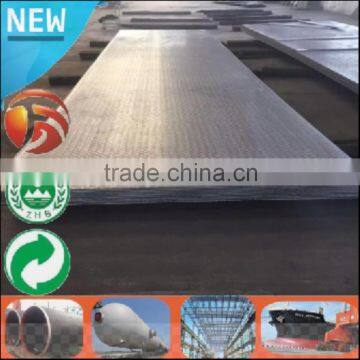

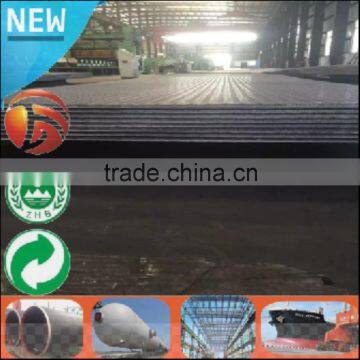

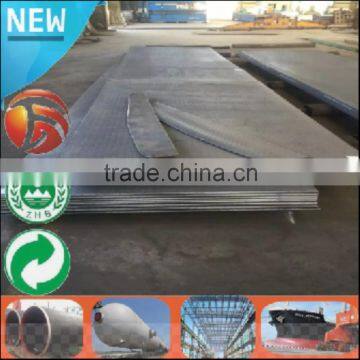

3. Detailed Images
Thick Checker steel plate can be customized.
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
4. Proffesional Deep Processing
Steel plate processing, cutting parts, (cut to any size, cut by drawing)
Flame cutting for thick heavy plate, and laser cutting for steel plate thickness under 16mm
Any forms all can be processed by your drawings.
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
5. Related productions
(1)Cold rolled steel coils cut to plate
Thickness : 0.5mm-3.0mm width : 800mm/1250mm
(2)Galvanized steel plate
Galvanized steel coils cut to plate
Thickness: 0.1mm-2.5mm width: 600mm/800mm/1250mm
(3) Al-zinc coils and plate
(4)Seamless steel pipe, seamless steel tube, seamless pipe, Hollow bar sizes: outer diameter: 8mm-800mm, wall thickness: 1mm-80mm
(5)Galvanized steel pipe, welded steel pipe
Outer diameter: 6mm-400mm
Wall thickness:0.5mm-6mm
(6) Round bar
Material: S235JR, 1045, 1018, 1518, 1020, 41040, 4340, 8620 and other materials
Diameters: 3mm-800mm
(7)steel profile
angle bar; channel bar; h beam; rectangular tubes
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
6. The Commen Problems
1. How long can make delivery?
For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
2. Will the Test Certificate be certified to EN10204 3.1?
For the new production products no need furthur cutting or processing, will provide the Original Mill Test Certificate certified to EN10204 3.1; for the stock products and the products need cutting or furthur processing, will issue Certificate of Quality on our Company, It will show the original mill name and the original datas.
3. Once the received products found not comply with the products the contract demands, what will you do?
Once the received products found not comply with the products the contract lists, when receiving the pictures and the official documents and data from your side, if it is proved not comply, we will compensate the loss at first time.
4. We accept the third part inspection, such as SGS inspection.
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
1. steel coil to steel plate
2.Flame cutting
Flamecutting or “burning” of carbon steel plate is an effective and efficient way to cut carbon and alloy steel plate to size and shape. Burning begins by heating a spot on the edge or surface of a plate with an oxy-fuel flame, then injecting a high pressure stream of pure oxygen once the spot is red hot. Both the preheat flame and the cutting oxygen are delivered through a specially designed nozzle or tip. In the presence of the cutting oxygen stream, the red hot steel literally burns, combining with the oxygen to form iron oxides. It is this burning that cuts the plate as the stream of cutting oxygen advances along the path of the cut. The burning gives off an intense heat – greater than 2800º F – which melts steel bordering the cut path, turning it into slag that is ejected at the bottom of the cut along with the iron oxide by-products of the burning.
3.Laser cutting provides the tightest tolerances and most precise cut surface. It produces the smallest heat-affected zone in the metal compared to all other thermal cutting processes.
2).We have full stock,and can deliver within short time.Many styles for your choices.
3).Good Quality + Factory Price + Quick Response + Reliable Service, is what we are
6).If any question,please contact with us freely by E-mail or Telephone.
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
7. Packaging and Shiping
Packaging |
when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension |
Width under 2300mm, length under 6000mm |
40 feet container contains dimension |
Width under 2300mm, length under 12000mm |
By bulk vessel |
Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
Discount Price 16mm standard steel checker plate thickness steel sheet cutting machine
8.Company Information
Tianjin Emerson Commercial and Trade Co.,Ltd mainly provides steel plate, steel sheet, steel pipe,seamless steel pipe and tube, round bars and steel section, and doing steel products processing service: steel plate and sheet processing service. The processing works concludes cutting the larger plate into the small sizes customer demand, cut by drawing, cut to special sizes, weld the cut parts by drawing, also make galvanizing processing or surface painting on the final processed parts; steel pipe hollow bar cutting and lathe processing to make the outer diameter and wall thickness to meet customers requirement, also make heat treatment for hollow bars and pipes. Tianjin Emerson Commercial and Trade Co.,Ltd has large stocks for the carbon steel and low alloy steel plates and sheets, especially have the thick plate and heavy plates on stock, also can provide the special material and large size steel plates, boiler and pressure vessel steel plate, marine steel plate, hot rolled steel plate for new production. Tianjin Emerson Commercial and Trade Co.,Ltd also has large stock for hollow bars, thick wall seamless pipes and tubes. Tianjin Emerson Commercial and Trade Co.,Ltd can provide good service for customer, good quality products, fast delivery, and after-sale service, Tianjin Emerson hopes to build good cooperation with everyone interested.
