Vlf 80kv Very Low Frequency AC Hipot Test Set
Composition of Vlf 80kv Very Low Frequency AC Hipot Test Set:
1. 0.1Hz/50KV control box (1pcs)

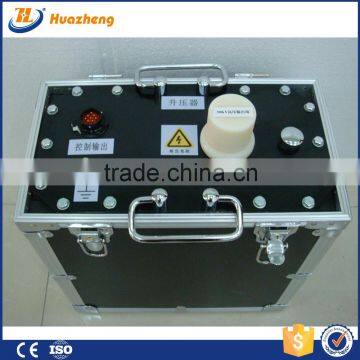

2. 0.1Hz/50KV booster (1pcs)

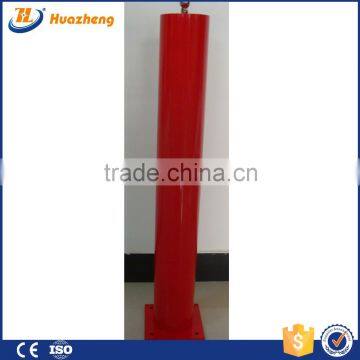

3. 0.1Hz/50KV shunt capacitor (1pcs)
Introduction of Vlf 80kv Very Low Frequency AC Hipot Test Set :
This product combines the advanced technology of modern digital conversion, fully computer control, automated boost, buck, measurement and protection. human intervention can cared out during the automatic step-up process , mains advantage includes fully electronic ,small sizes and light weight , large-screen LCD ( clear and intuitive ) , printer output test report , easy to use.
Theory of Vlf 80kv Very Low Frequency AC Hipot Test Set,
Ultra-Low Frequency Dielectric Strength Test is the alternative way for power frequency voltage withstand test. as we know , it is needed huge capacity testing transformer or a resonant transformer for power frequency voltage withstand test to large generator ,cables etc due to larger electrical capacity of insulating layer . The huge equipment not only bulky but also expensive and not suitable for use. The electricity sector makes some test to solve the problems. according to theory and test result from domestic and overseas , 0.1Hz ultra-low frequency voltage withstand test can solve this problems and the advantage is not only got same test results but also the instrument dimensions is small and considerably reduced the weight of it . The capacity of it is 1/500 of tradition way. Greatly simplify testing procedures, That is why it is commonly used in the developed countries.
Technical Vlf 80kv Very Low Frequency AC Hipot Test Set:
Model |
Rated Voltages |
Load capacity |
Fuse |
Weight |
Useful |
VLF-50/1.1 |
50KV (peak ) |
0.1Hz,≤1.1µF |
20A |
Control :6Kg Body Boost :50Kg |
15.75KV Cables,Generator |
0.05Hz,≤2.2µF | |||||
0.02Hz,≤5.5µF |
1. What's the payment term?
A. We accept L/C,TT,Western Union,Money Gram.
2.How's the delivery time ?
A. Is due to order quantity.
3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use wooden case for protection.
4.Would you accept to use our logo ?
A.It's no problem to do OEM.
5.Where is your market?
A. Our products are popular in Australia,Philippines, Vietnam, Indonesia, South Korea,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
6. What is the warranty period?
A. Normally 1 year.
7.How is the Shipment?
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
Details Show:
We have attended Power-gen Exhibition in South Africa on July 19-21, 2016.
and the MEE Exhibition in Dubai on 1st to 3rd March 2016. And they are very successful. The follow is the photos that we attended the Power-gen Exhibition and the MEE Exhibition.
