1.Horizontal and vertical milling machine with head swivel +/-360 degrees;
2.Rectangular guideways

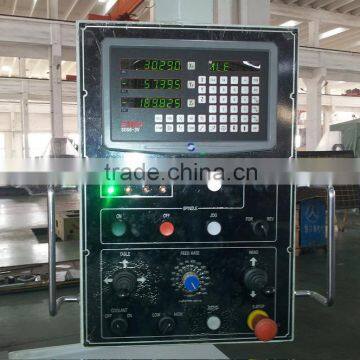

3.Large table load, with control panel

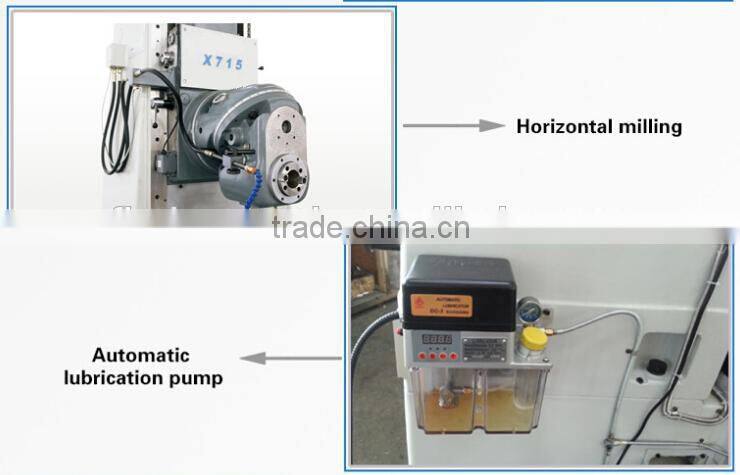

4.automatic lubrication system
5.CE electrical componets.

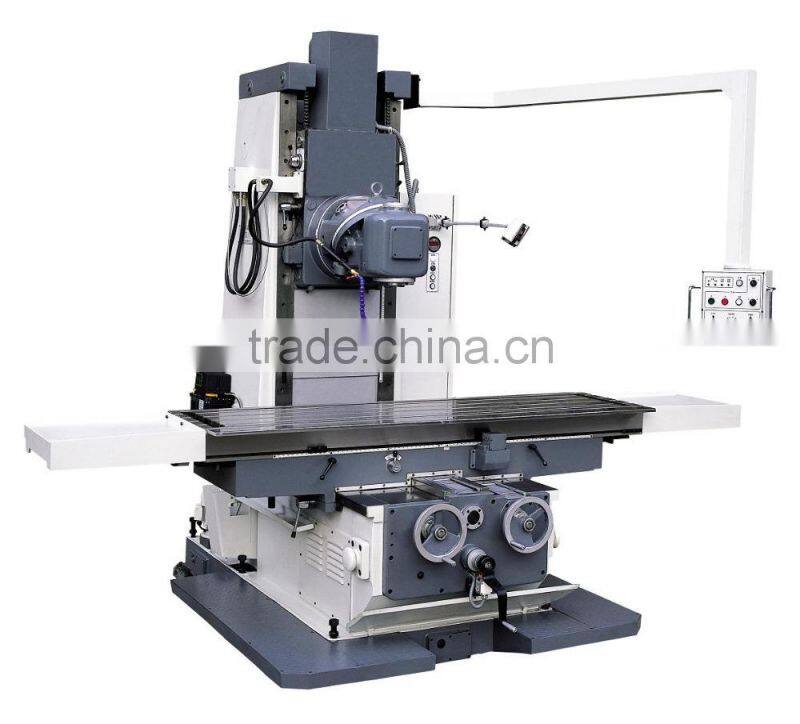

Specification details of X715 Bed type universal milling machine
Specifications |
Units |
X715 |
Table size |
mm |
2100×500 |
Table travel (X,Y) |
mm |
1500×670 |
Vertical travel of headstock |
mm |
0-670 |
Number/Width/Distance of T-slot |
mm |
4-20-100 |
Max. load of table |
Kg |
2000 |
Feed speed |
mm/min |
20-1800 |
Rapid feed speed |
mm/min |
3500 |
Spindle speed range |
rpm |
35-1345 |
Spindle speed step |
steps |
12 |
Distance from spindle axis to column guideway |
mm |
610 |
Spindle motor power |
KW |
7.5 |
Overall dimension |
mm |
3300×2380×2750 |
Machine weight |
Kg |
7300 |
Features
1. X 715 cooperate with Nambul Co.,Ltd of South Korea in producing the machine
2. Advanced design,large load and wide machining range

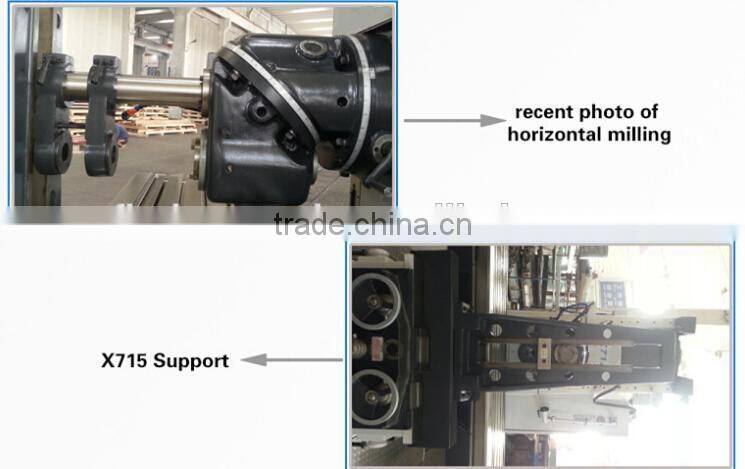

3. Swivel head when horizonal milling
Standard accessories:
- Draw bar
- ISO50 Milling chuck (4,6,8,12,16,18,22,26)
- ISO50 milling arbor
- Taper sleeve (7:24 ISO50/MS4)
- Tool box
- Oil gun
- Foundation bolts
- Inner hexagon spanner
- Double head wrench
- Horizontal milling arbor support
- Operation manual
Optional accessories suit the univeral milling machine, vertical milling machine
Optional accessories:Rotary table, dividing head,DRO

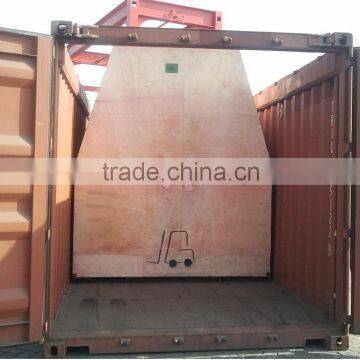

Packaging & Shipping

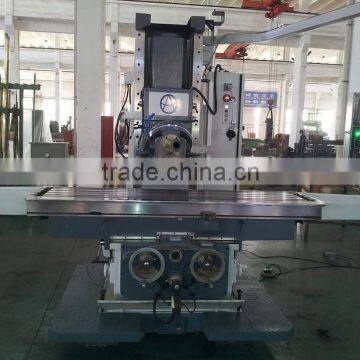

Machine model: Bed type universal milling machine X715

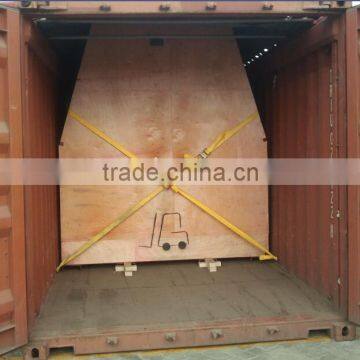

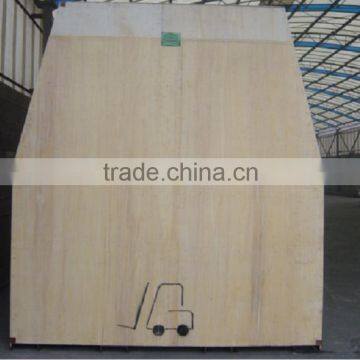

Type of package: Plywood case
Packing dimension: 228X228X283CM
N.W./G.W.: 7300/8000KGS
Suitable Container and quantity:
20' OT Container: 2sets
40' OT Container: 3sets
Delivery time: 45-60days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Qingdao/Shanghai
Bed type universal milling machine X715
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
