1.MEEHANITE cast-iron construction;
2. Rectangular guideways, hardened and ground table surface;
3. Heastock swivel +/-30 degrees;

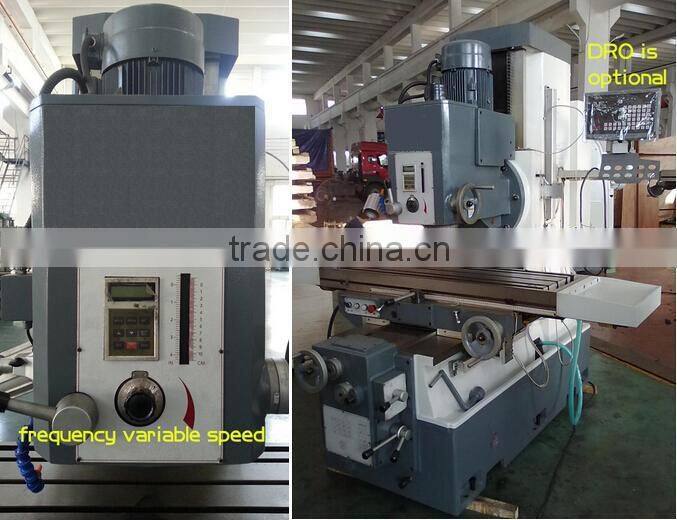

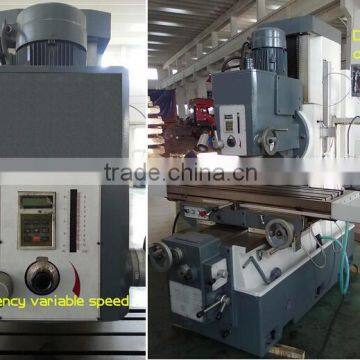

4. Infinitely variable speed
5.Large table load, with control panel
6.automatic lubrication system
7.CE electrical componets.

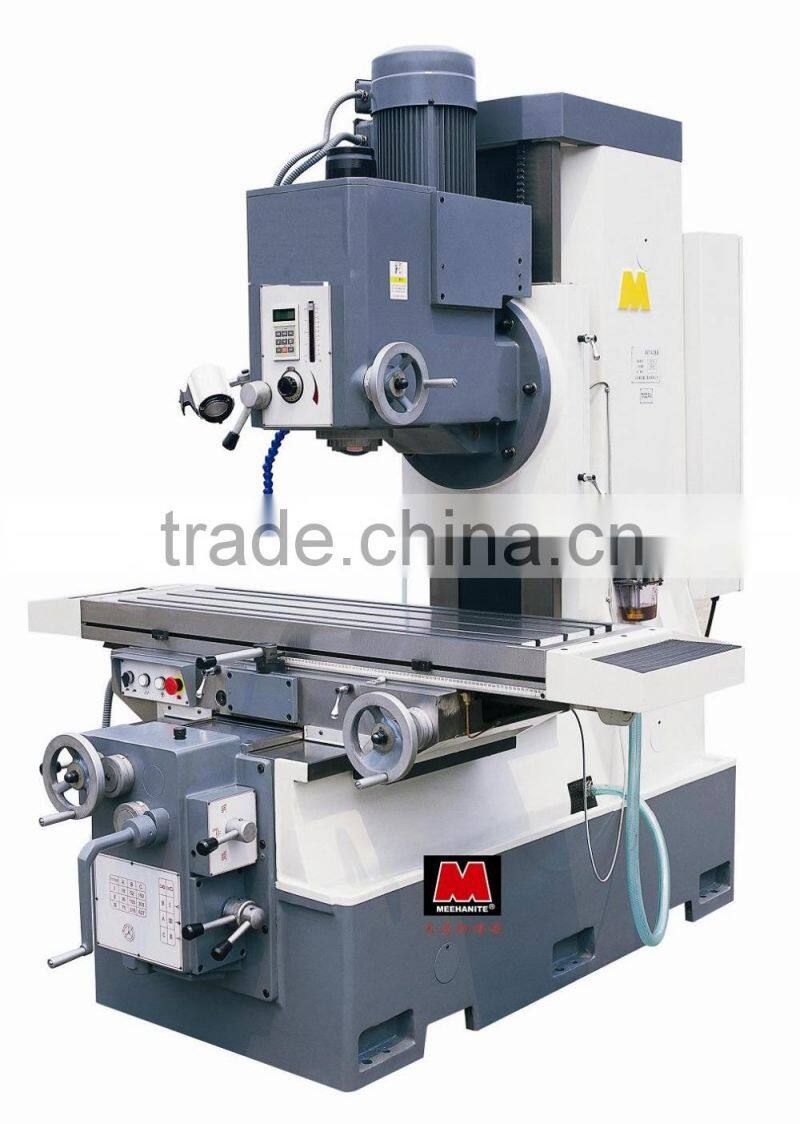

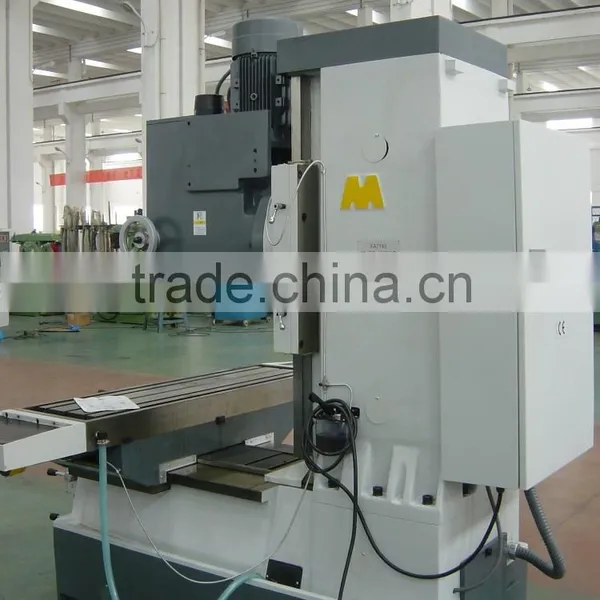

Specification details of XA7140 Universal bed type milling machine
Specifications |
Units |
XA7140 |
Table size |
mm |
1400×400 |
Table travel |
mm |
800×400 |
Number/Width/Distance of T-slot |
mm |
3-18-100 |
Max. load of table |
Kg |
800 |
Distance from spindle axis to column guideway |
mm |
520 |
Distance from spindle nose to table surface |
mm |
150-650 |
Spindle taper |
|
ISO50 |
Quill travel |
mm |
105 |
Spindle speed range (infintely variable speed) |
rpm |
18-1800 |
Overall dimension |
mm |
2290×1840×2120 |
Spindle motor power |
KW |
7.5 |
Machine weight |
Kg |
3860 |
Features

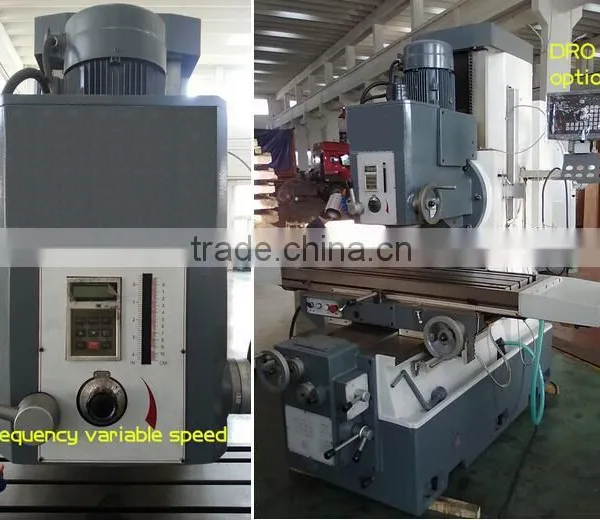

1. XA 7140 C/W Infinitely variable speed
2. Advanced design,large load and wide machining range
Standard accessories:
- Milling chuck
- Inner hexagon spanner
- Middle sleeve
- Draw bar
- Wrench
- Sheel end milling arbors
- Foundation bolts
- Nut
- Washer
- Wedge shifter
Optional accessories suit the univeral milling machine, vertical milling machine

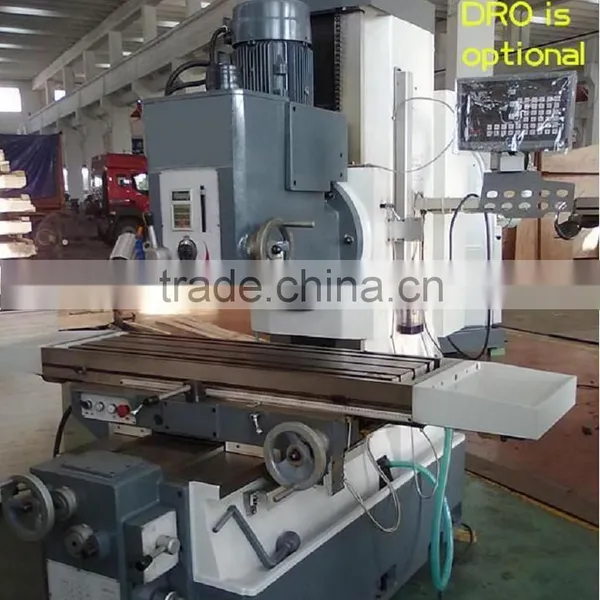

Optional accessories:Rotary table, dividing head,DRO

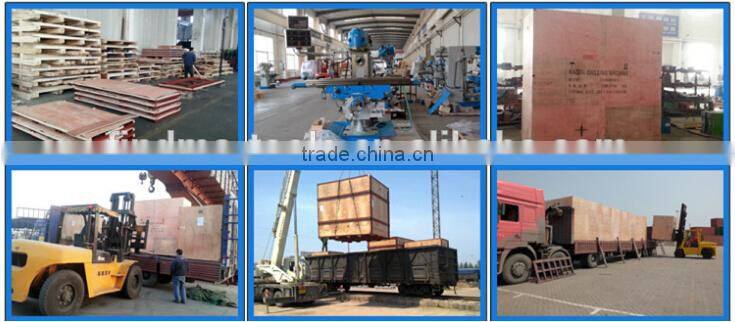

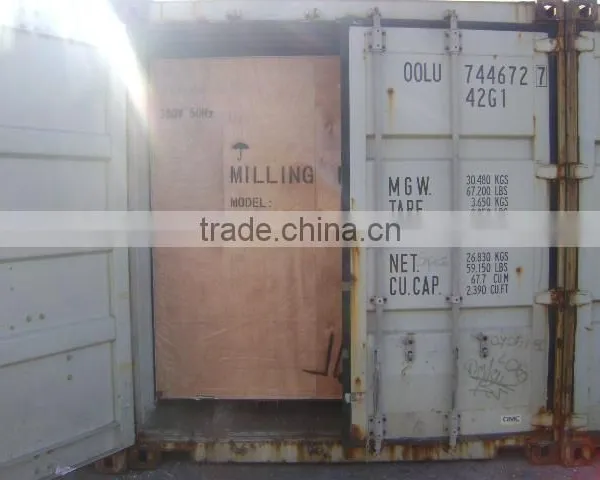

Packaging & Shipping
Machine model: Universal bed type milling machine XA7140

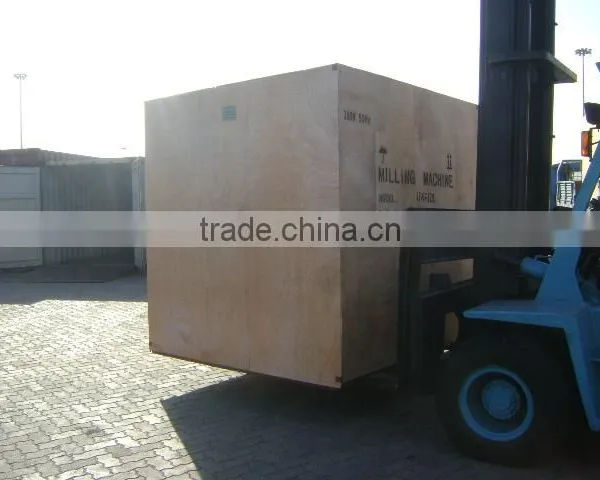

Type of package: Plywood case
Packing dimension: 226X187X228CM
N.W./G.W.: 3860/4060KGS

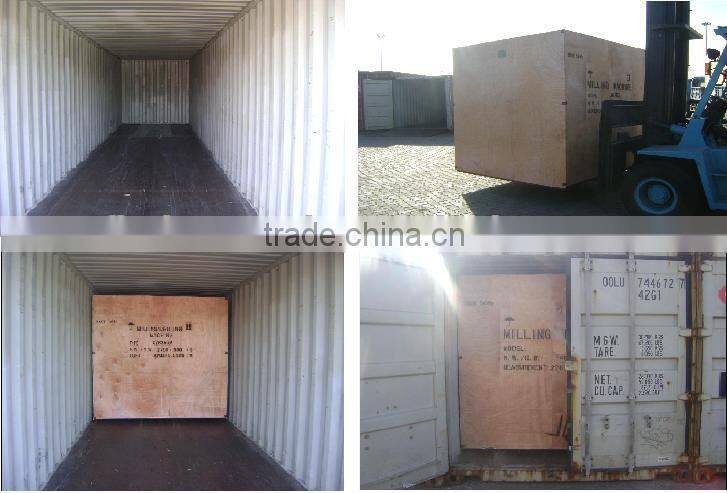

Suitable Container and quantity:
20' GP Container: 3sets
40' GP Container: 6sets
Delivery time: 45-60days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Qingdao/Shanghai
Universal bed type milling machine XA7140
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.

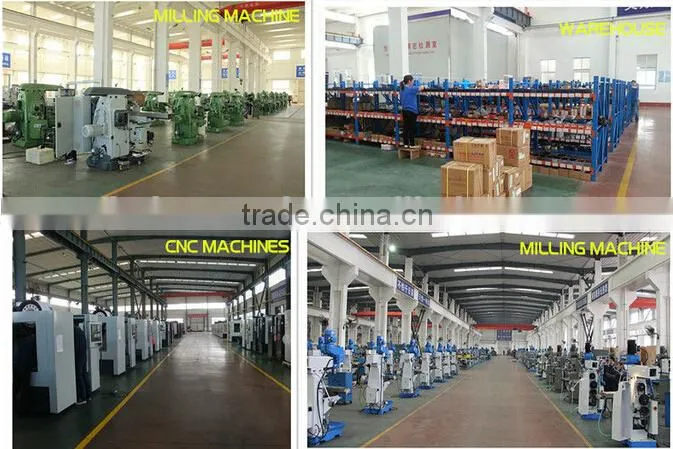

Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, CNC engrving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
