Factory Wholesale HZRC6300 60A Digital AC Leakage Current Clamp Meter
US$ 111 - 120
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HZ
Model Number:
HZRC6300
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin/ShangHai/Any Port is ok in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HZRC7300A Intelligent Clamp Power MeterUS$ 270 - 350MOQ: 1 Piece -
HZRC7300A Digital Clamp Power MeterUS$ 270 - 350MOQ: 1 Piece
-
HZRC7300A Multifunction Clamp Power MeterUS$ 270 - 350MOQ: 1 Piece
-
HZRC7300A Large Diameter Clamp Power MeterUS$ 270 - 350MOQ: 1 Piece
-
HZRC7300A Handheld Clamp Power MeterUS$ 270 - 350MOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
HZ
Model Number
HZRC6300
Display Type
Digital Only
Measuring Current Range
0.001mA~60.00A
Measuring Voltage Range
non
Measuring Resistance Range
On-line AC current measurement
Measuring Capacitance Range
AC current measurement
Measuring Inductance Range
AC leakage measurement
Operating Temperature
0℃~40℃; below 80%rh
Dimensions
175mm*70mm*38mm
Weight
120g

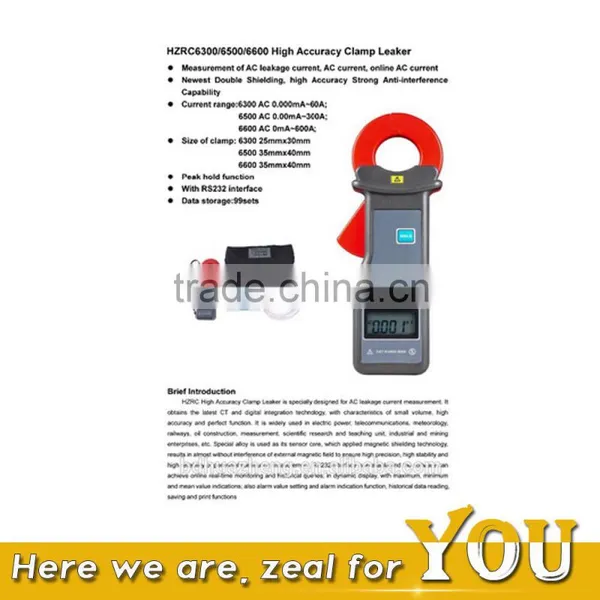

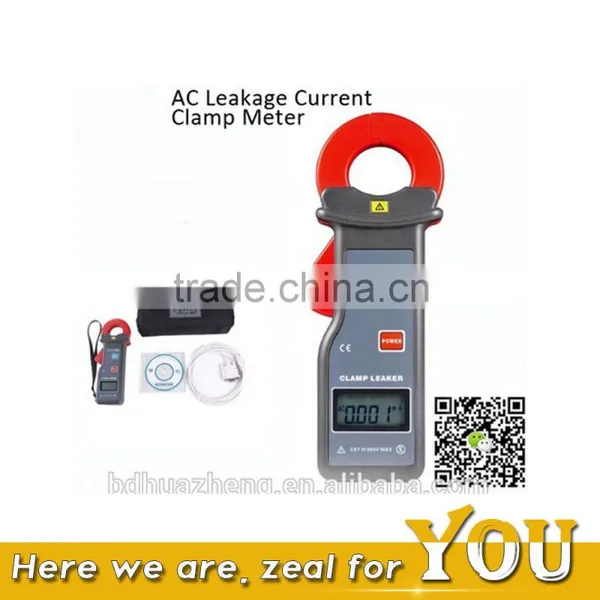

Factory Wholesale HZRC6300 60A Digital AC Leakage Current Clamp Meter
Product Description
Ⅰ. Introduction
HZRC6300 High Accuracy Clamp Leaker is specially designed for AC leakage current measurement. It obtains the latest CT and digital integration technology, with characteristics of small volume, high accuracy and perfect function. It is widely used in electric power, telecommunications, meteorology, railways, oil construction, measurement, scientific research and teaching unit, industrial and mining enterprises, etc. Special alloy is used as its sensor core, which applied magnetic shielding technology, results in a almost free interference of external magnetic field.
RS232 interface is available on the meter. The meter can achieve online real-time monitoring and historical queries; in dynamic display, with maximum, minimum and mean value indications; also alarm value setting and alarm indication function, historical data reading, saving and print functions, etc.
The meter can be used for on-line AC current measurement below AC600V, with the functions of peak maintaining, reading holding and data memory. In all, it is high accurate and easy and safe to use.
Ⅱ. Technical Specification
Function |
AC leakage measurement, AC current measurement, On-line AC current measurement |
Power Supply |
6F22,9V |
Process Type |
Clamp CT, Integral Approach |
Display Type |
4 Digits LCD |
Clamp Size |
25mm×30mm |
Meter Dimension |
LWH: 175mm×70mm×38mm |
LCD Dimension |
35mm×21.5mm; Display Dimension: 32mm×15mm |
Sampling Rate |
2 Times/Second |
Frequency |
50Hz, 60Hz Automatic identification |
Shifting |
Automatic Shift |
Range |
0.000mA~60.00A |
Resolution |
1uA |
Accuracy |
±1.5%±5dgt (23℃±3℃, below 70%RH) |
Line voltage |
Below AC 600V |
RS232 Interface |
With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring |
Data Memory |
99 sets, “FULL” Blinking when memory is full |
Peak Maintaining |
Peak value capture hold function, press HOLD without Release to display peak value |
Reading Hold |
Reading hold function: “DH” symbol display |
Overflow display |
Range overflow function: “OL” symbol display |
Automatic Shutdown |
5 minutes after the boot |
Battery Detection |
When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. |
Meter Weight |
120g (With battery) |
Rated Power |
5mW |
Working Temperature and Humidity |
0℃~40℃; below 80%rh |
Storage Temperature and Humidity |
-10℃~60℃; below 70%rh |
Insulation Strength |
AC2kV/rms (between core and box) |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |
Accessories |
Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece |
