Electronic High voltage digital current meter
We are the supplier of Chinese State Grid!
electronic High voltage digital current meter introduction:

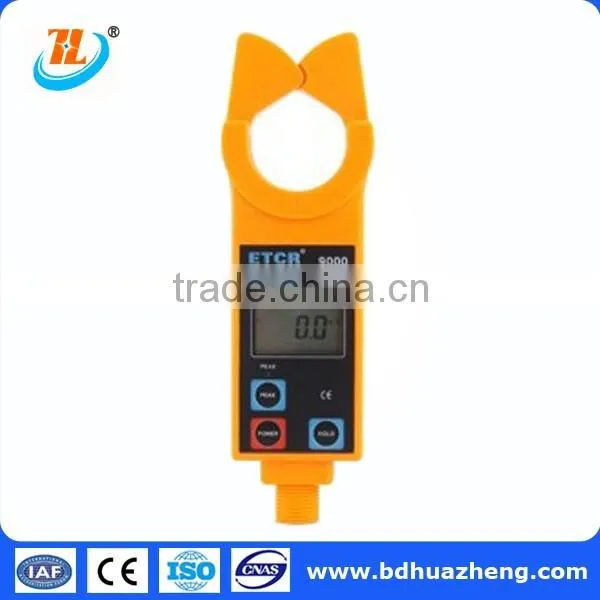

HZRC 9000 H/L Voltage Clamp Meter has unique features of automatic plug function, specially designed and manufactured for high voltage current measurement; use the latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 300 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.0mA ~1000A current or leakage current.

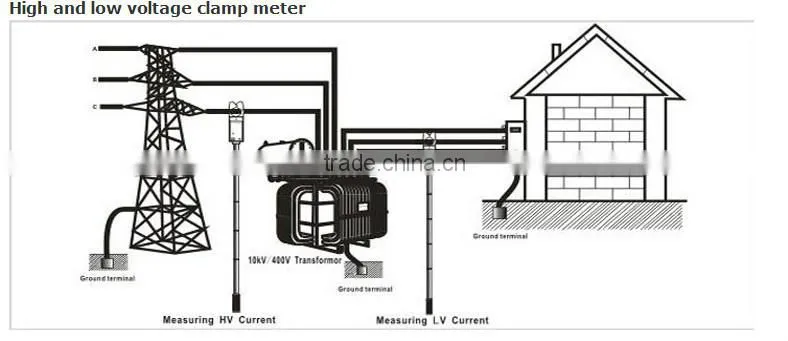

high and low voltage clamp ammeter can be applied in high voltage line current measurement and online current measure below 60KV, also with the functions of peak value maintaining, data maintaining, data memory, etc. The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working.
electronic High voltage digital current meter feature:
1. Measurement of H/L AC leakage current, current online test; zinc oxide arrester, fault online judgment; indirect test of current transforming ratio
2. Wireless transmission can traverse obstacles such as walls; direst transmission distance is 30m.
3. Automatic plug function, safe and fast
4. Range: AC 0.0mA~1000A
5. Resolution: 0.1mA
6. Circuit voltage: 9000/9000B below 60KV(bare wire 35KV) 9000S below 10kv
7. Data storage:99sets
electronic High voltage digital current meter specifications:
Measurement Scope |
0.0mA~1000A (50/60Hz automatic) |
Resolution |
0.1mA |
Shift |
0.0mA~1000A automatic shift |
|
Accuracy
(23℃±5℃, below 70%RH)
|
0.0mA~299mA: ±1%±3dgt |
0.30A~9.99A: ±1.5%±5dgt | |
10.0A~199.9A: ±2%±5dgt | |
200A~399A: ±2.5%±5dgt | |
400A~600A: ±3%±5dgt | |
601A~1000A: ±4%±5dgt | |
Line Voltage |
Below 60KV line test (with 5 insulation rods operation) |
Data Memory |
99 sets, memory process is shown by MEM , full storage is shown by blinking “FULL” |
PEAK value maintaining |
Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function. |
Data Hold |
In usual testing mode, press HOLD key to keep data, shown by “HOLD” |
Data Access |
“MR” indication, can access to all data |
Overflow Display |
Over-range overflow function: shown in “OL A” |
Automatic Shutdown |
15 minutes after boot |
Battery Voltage |
When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement |
Meter Weight |
Detector: 335g (with battery), the total mass of meter: 2260g (including insulation rod and battery) |
Working Temperature and Humidity |
-25℃~40℃; below 80%Rh |
Storage Temperature and Humidity |
-10℃~60℃; below 70%Rh |
Insulation Rod Dimension |
φ32mm, 1m/piece (5pieces) |
Insulation Strength |
AC 100kV/rms (between the 5th insulation rod and high voltage current clamp core) |
Structure |
Anti-drip type Ⅱ |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT Ⅲ(600V), IEC61326(EMC standard) |
Accessories |
Clamp Meter : 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces |
electronic High voltage digital current meter Application:
electronic High voltage digital current meter From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
