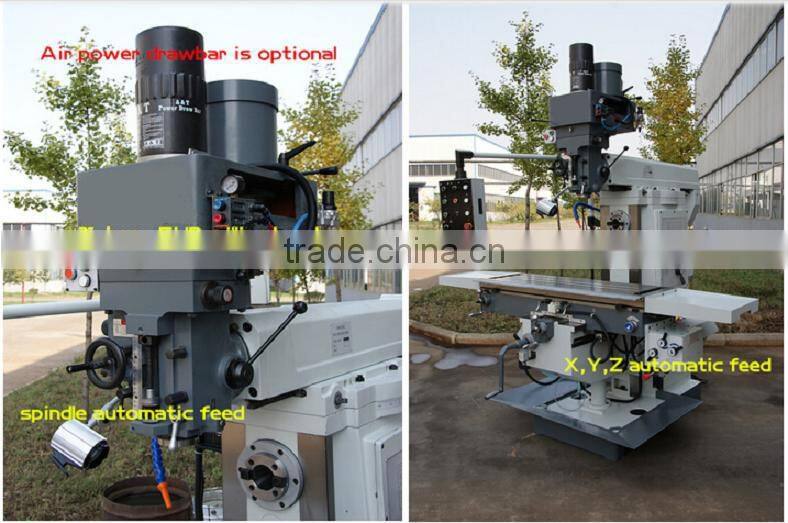

Help CenterX6336 Universal Radial Milling Machine With Air Power Drawbar
Related Products
-
Turret Head Milling Machine,universal Milling Drilling Machine,radial Milling Machine X6332CUS$ 7,050 - 8,300MOQ: 1 Set -
Turret Milling Machine X6332CUS$ 7,050 - 8,300MOQ: 1 Set
-
China Profect and Low Cost Auto-feeding Universal Milling Machine X6332C PriceUS$ 7,050 - 8,300MOQ: 1 Set
-
Universal Radial Milling Machine X6332CUS$ 7,050 - 8,300MOQ: 1 Set
-
China Vertical and Horizontal Turret Milling Machine X6332C for SaleUS$ 7,050 - 8,300MOQ: 1 Set
1.The universal milling machine X6336 withTaiwan 5# milling head
2.Headstock swivels +/- 45
3.X,Y,Z auto feed
4.turret milling machine
Universal milling machine specifications |
Units |
X6336 |
Table size |
mm |
1320×360 |
Number/Width/Distance of T-slot |
mm |
3-18-80 |
Table travel |
mm |
980×300×450 |
Spindle taper |
|
ISO40(V) / ISO50(H) |
Spindle speed /steps |
rpm |
70-3620/10steps(V) / 58-1800/12steps(H) |
Max. drilling dia. |
mm |
30 |
Max. end milling width |
mm |
125 |
Max. vertical milling dia. |
mm |
25 |
Max. tapping dia. |
mm |
M16 |
Quill travel |
mm |
140 |
Max. swivel angle of headstock |
|
±45° |
Vertical spindle axis to column surface |
mm |
150-550 |
Vertical spindle nose to table surface |
mm |
200-650 |
Horizontal spindle axis to table surface |
mm |
0-450 |
Longitudinal/transverse feed |
mm/min |
15-370 / 15-370 / 575 |
Spindle motor power |
kW |
3.7(V) 4.0(H) |
Overall dimension |
mm |
2070×2020×2330 |
Machine weight |
kg |
2200 |
- Universal milling machine X6336
- Drilling chuck
- Inner hexagon spanner
- Wedge shifter
- Taper sleeve
- Draw bar
- Spindle arbor
- Wrench
- Milling chuck
- Milling arbor
Optional accessories suit the universal milling machine
Optional accessories:Rotary table,power feed,dividing head,change sleeve,DRO,milling plug,clamp kit.
1. Machine model: Universal milling machine X6336
2. Type of package: Plywood case
3. Packing dimension:193X185X225CM (one set in one case) N.W./G.W.: 2200/2400KGS
4. Suitable Container and quantity: 20' standard container: 3sets 40' standard container: 6sets
Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, CNC engrving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
Find Machinery follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you to create a bright future.
